Cables

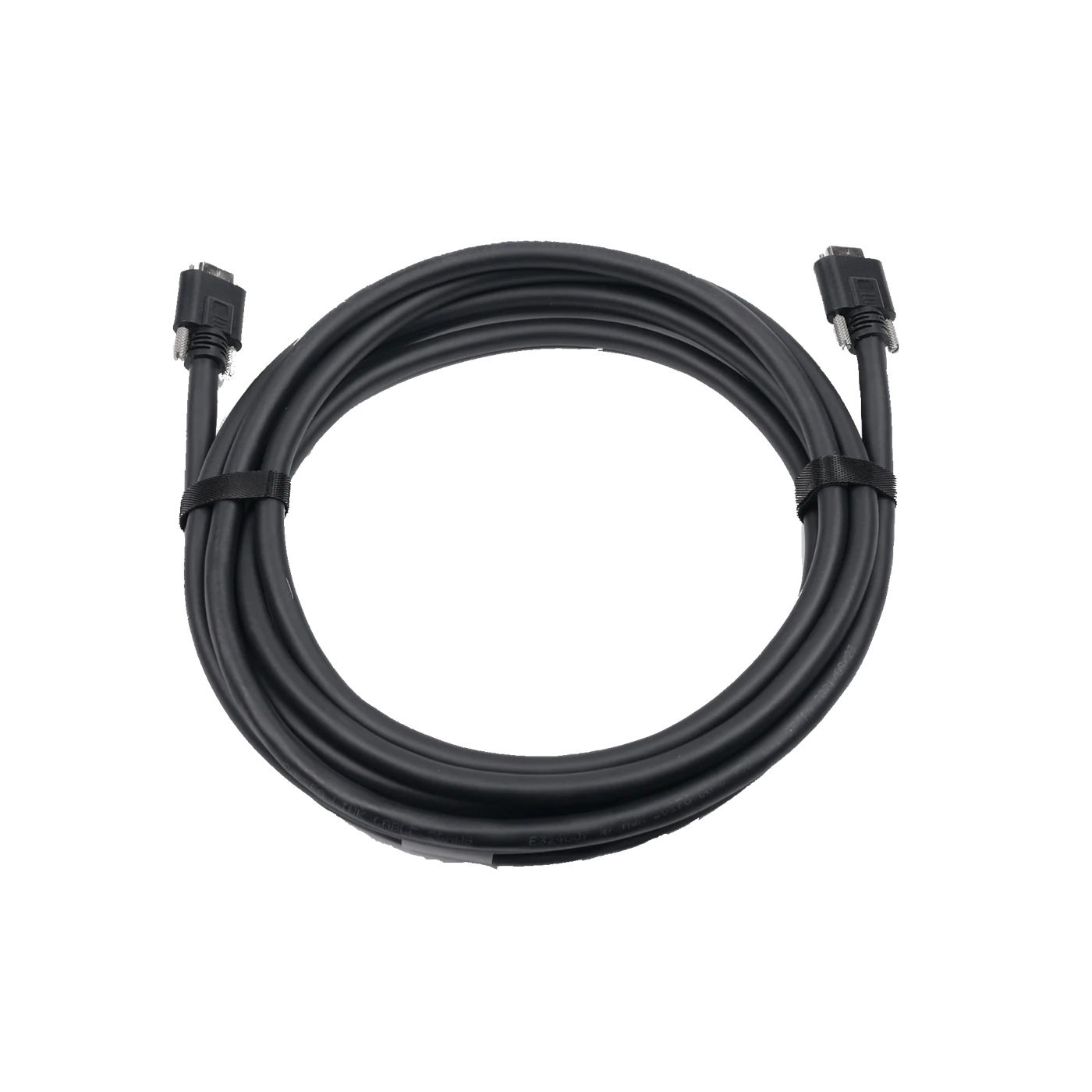

Camera Data Cable, SDR26 to SDR26, 5 m (LS-ACCL-SDR-SDR-HF-5M)
Model LS-ACCL-SDR-SDR-HF-5M
Camera Data Cable, SDR26 to SDR26, 5 m. The SDR26 High-Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
Features
- The SDR26 High-Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACCL-SDR-SDR-HF-5M |
|---|---|
| End A connector | SDR26 |
| End B connector | SDR26 |
| Cable diameter | 9.5 mm |
| Length | 5 m |
| Cable mechanical | UL20276 |
| Jacket | PVC |
| Cable color | Black |
| Connector model | Made in China |
| Connector durability | ≥ 500 mating cycles |
| Min. bending radius | 114 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 5 million |
| Max. voltage | 30 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
