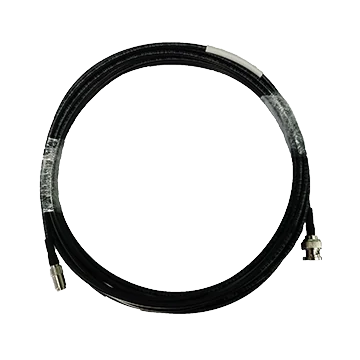

Camera Data Cable, DIN 1.0/2.3 to BNC, 10 m (LS-ACXP6-DIN-BNC-ST-10M)
Model LS-ACXP6-DIN-BNC-ST-10M
Camera Data Cable, DIN 1.0/2.3 to BNC, 10 m. The CXP-6 Standard Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.
Features
- The CXP-6 Standard Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACXP6-DIN-BNC-ST-10M |
|---|---|
| End A connector | DIN 1.0/2.3 |
| End B connector | BNC |
| Cable diameter | 4 mm |
| Length | 10 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 500 cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 300 VDC |
| Working temperature | -30°C-75°C |
| Certification | UL, CMR |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
