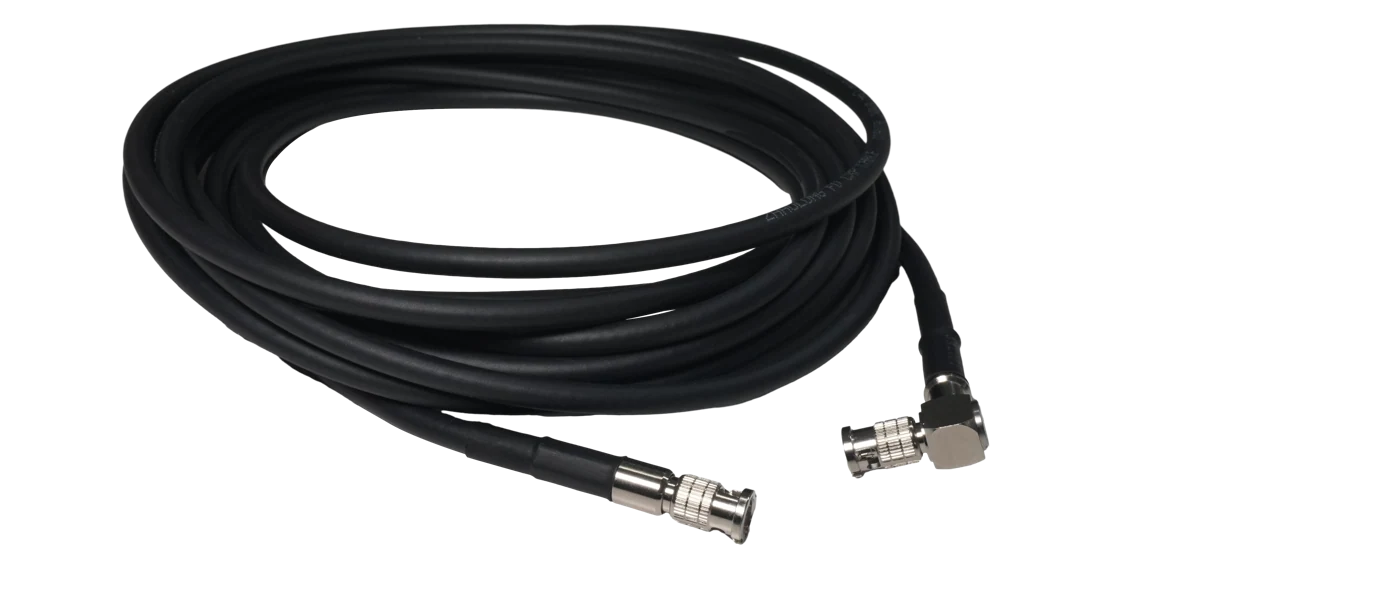

Camera Data Cable, HD-BNC to HD-BNC (angled), 10 m (LS-ACXP12-HDBNC-UP-HDBNC-HF-10M)
Model LS-ACXP12-HDBNC-UP-HDBNC-HF-10M
Camera Data Cable, HD-BNC to HD-BNC (angled), 10 m. The CXP-12 high-flex angled data cable can be used for data transmission of cameras with CoaXPress interface, and is available in a variety of lengths.
Features
- The CXP-12 high-flex angled data cable can be used for data transmission of cameras with CoaXPress interface, and is available in a variety of lengths.
Specifications
| Model | LS-ACXP12-HDBNC-UP-HDBNC-HF-10M |
|---|---|
| End A connector | HD-BNC |
| End B connector | HD-BNC (angled) |
| Cable diameter | 5 mm |
| Length | 10 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 500 mating cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Drag chains |
| Max. U-type bending cycles | 2 million |
| Max. voltage | 300 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
