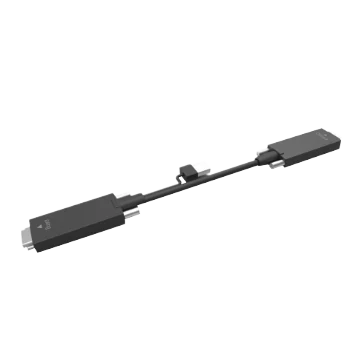

Camera Data Cable, SDR26 to SDR26(Board side with Type A USB3.0 power take-off connector), 8m (LS-ACCL-SDR-SDR-AOC-8M-BASE)
Model LS-ACCL-SDR-SDR-AOC-8M-BASE
Camera Data Cable, SDR26 to SDR26(Board side with Type A USB3.0 power take-off connector), 8m. Camera Link AOC Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
Features
- Camera Link AOC Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACCL-SDR-SDR-AOC-8M-BASE |
|---|---|
| End A connector | SDR26 |
| End B connector | SDR26(Board side with Type A USB3.0 power take-off connector) |
| Cable diameter | 5.6 ± 0.2 mm |
| Length | 8m |
| Cable mechanical | Fiber*2C+(37/0.1)*1C+AL+B |
| Jacket | TPU |
| Cable color | Black |
| Connector durability | 1000 cycles |
| Min. bending radius | When installed: 100 mm; When used: 67.2 mm |
| Allowable tensile force | When installed: 300 N; When used: 150 N |
| Allowable crushing force | Long term: 200 N/100 mm; Short term: 350 N/100 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 5 million times |
| Power supply | 5 V-400 mA |
| Working temperature | 0°C ~ 70°C |
| Packaging | Individual package and paper box |
| Shipping weight (estimated) | 0.31 kg |
