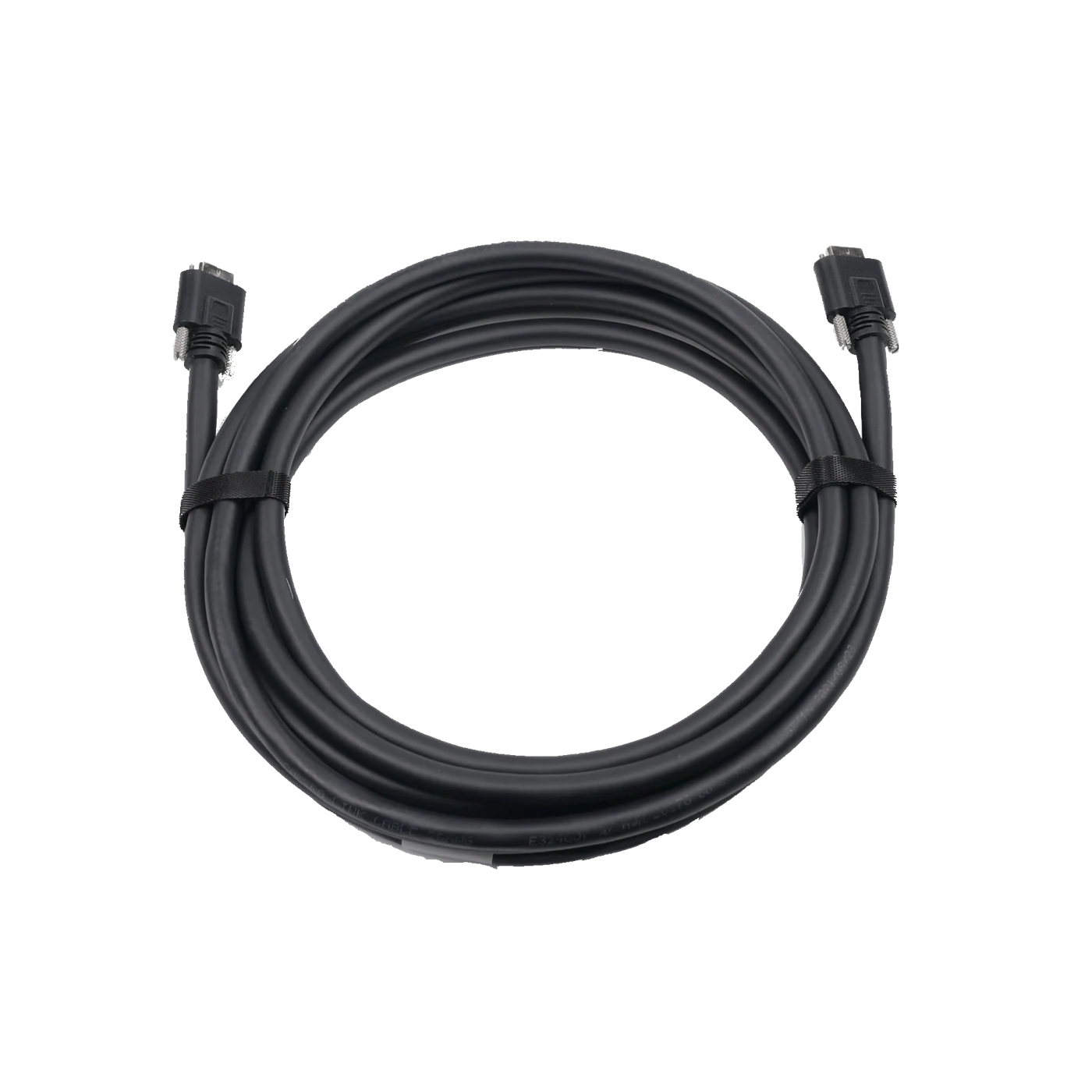

Camera Data Cable, SDR to SDR, 7 m (LS-ACCL-SDR-SDR-ST-7M)
Model LS-ACCL-SDR-SDR-ST-7M
Camera Data Cable, SDR to SDR, 7 m. The Camera Link Standard Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
Features
- The Camera Link Standard Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACCL-SDR-SDR-ST-7M |
|---|---|
| End A connector | SDR |
| End B connector | SDR |
| Cable diameter | 9.5 mm |
| Length | 7 m |
| Cable mechanical | (28AWG*1P+AL)*11C+28AWG*2C+MY+AL+B, UL20276 |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | ≥500 cycles |
| Min. bending radius | 114 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
