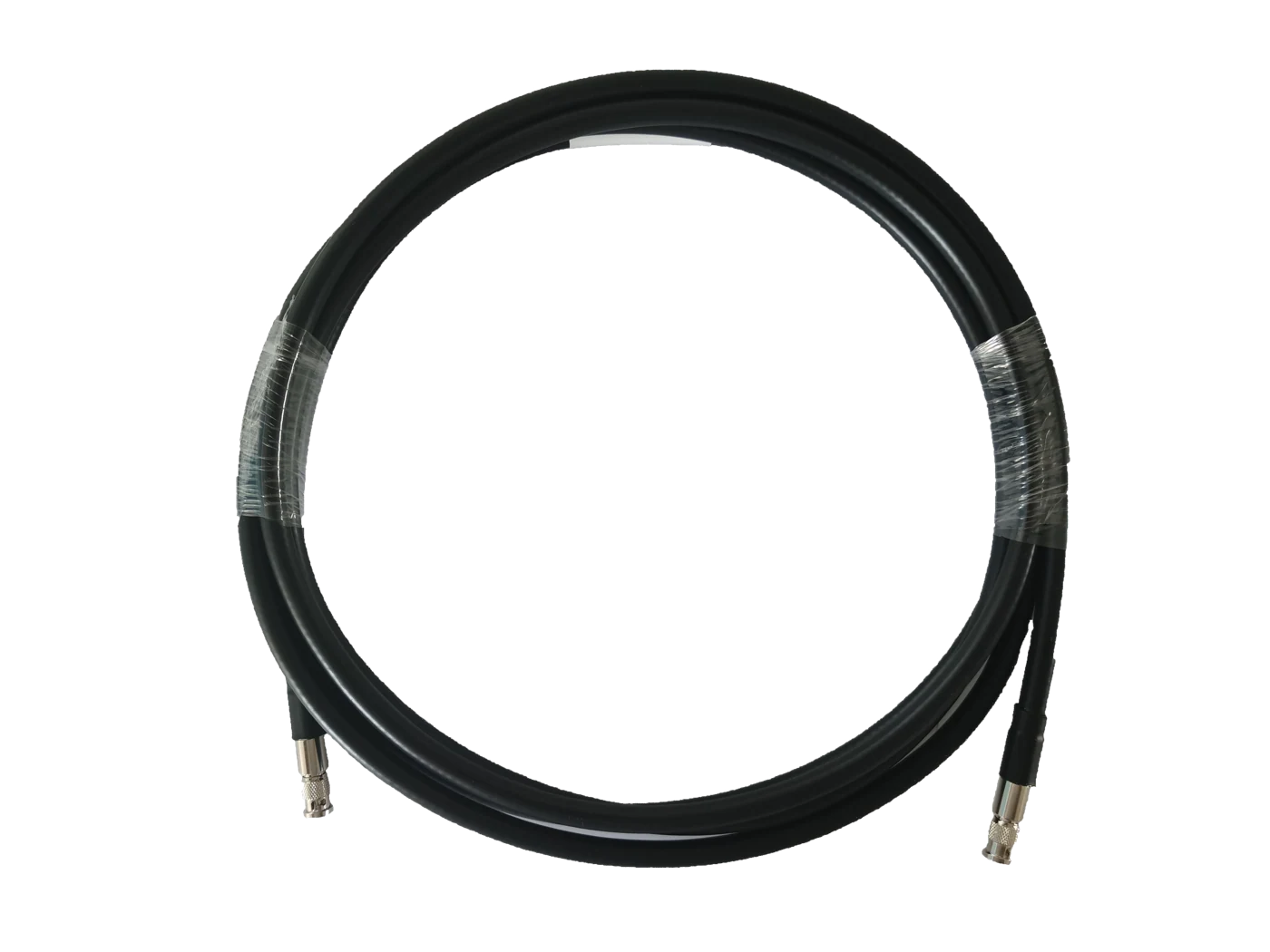

Camera Data Cable, HD-BNC to HD-BNC, 10 m (LS-ACXP12-HDBNC-HDBNC-ST-10M)
Model LS-ACXP12-HDBNC-HDBNC-ST-10M
Camera Data Cable, HD-BNC to HD-BNC, 10 m. The CXP-12 Standard Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.
Features
- The CXP-12 Standard Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACXP12-HDBNC-HDBNC-ST-10M |
|---|---|
| End A connector | HD-BNC |
| End B connector | HD-BNC |
| Cable diameter | 7 mm |
| Length | 10 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 500 cycles |
| Min. bending radius | 84 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 300 VDC |
| Working temperature | -20°C~ 80°C |
| Certification | UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
