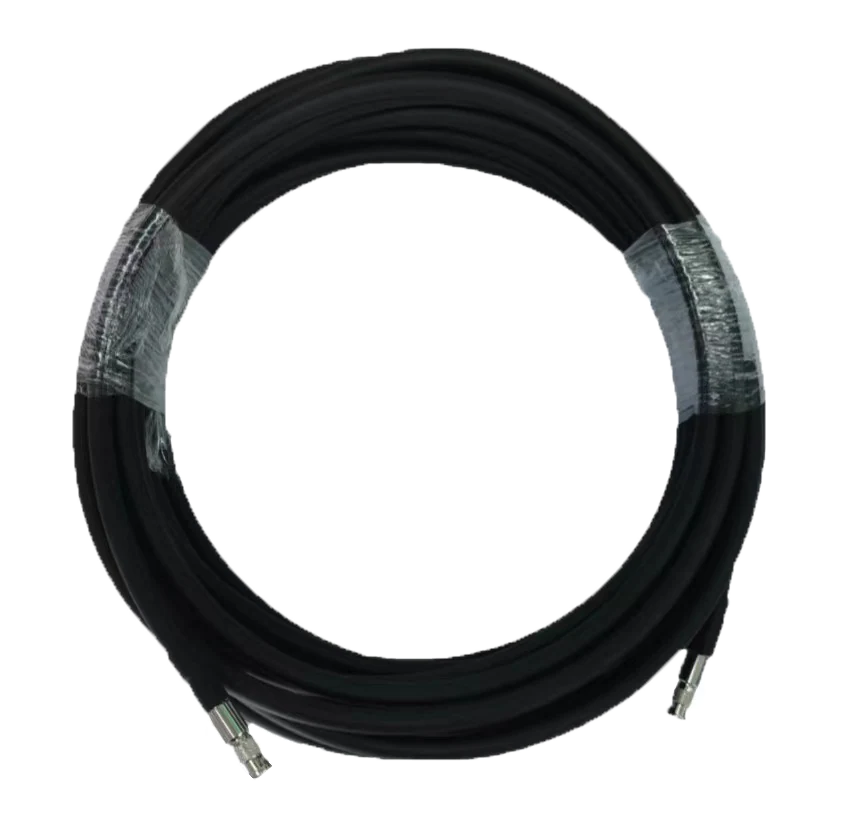

Camera Data Cable, HD-BNC to HD-BNC, 7 m (LS-ACXP12-HDBNC-HDBNC-HF-7M)

Cables

Camera Data Cable, HD-BNC to HD-BNC, 7 m (LS-ACXP12-HDBNC-HDBNC-HF-7M)

Model LS-ACXP12-HDBNC-HDBNC-HF-7M

Camera Data Cable, HD-BNC to HD-BNC, 7 m. CXP-12 high-flex cable for data transmission with CoaXPress cameras; available in multiple lengths

$259.00 USDIn stock · 4 available

Inventory updated Oct 16, 2026

0.31 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this part → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-ACXP12-HDBNC-HDBNC-HF-7M

Features

  • CXP-12 high-flex cable for data transmission with CoaXPress cameras; available in multiple lengths

Specifications

ModelLS-ACXP12-HDBNC-HDBNC-HF-7M
End A connectorHD-BNC
End B connectorHD-BNC
Cable diameter5.0mm
Length7 m
Cable mechanicalCoaxial
JacketPVC
Cable colorBlack
Connector durability500 cycles
Min. bending radius60mm
Applicable scenarioDrag chain
Max. U-type bending cycles2 million times
Max. voltage300 VDC
Working temperature-30°C-80°C
CertificationRoHS, UL
PackagingIndividual package
Shipping weight (estimated)0.31 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Camera data cables series

ModelSizePriceAvailability
LS-ACXP6-DIN-DIN-HF-5M5 m $219.00 3 in stockView
LS-ACXP6-DIN-BNC-HF-5M5 m $219.00 4 in stockView
LS-ACXP6-DIN-HDBNC-HF-5M5 m $219.00 5 in stockView
LS-ACXP6-DIN-UP-DIN-HF-5M5 m $219.00 3 in stockView
LS-ACXP12-HDBNC-HDBNC-ST-5M5 m $219.00 4 in stockView
LS-ACXP12-HDBNC-HDBNC-HF-5M5 m $219.00 3 in stockView
LS-ACXP6-DIN-DIN-ST-5M5 m $219.00 2 in stockView
LS-AC10G-2LC-2LC-HF-40M40 m $229.00 2 in stockView
LS-AC10G-2LC-2LC-ST-40M40 m $229.00 2 in stockView
LS-ACCL-SDR-SDR-ST-5M5 m $259.00 2 in stockView
LS-ACCL-SDR-MDR-HF-5M5 m $259.00 3 in stockView
LS-ACCL-MDR-MDR-HF-5M5 m $259.00 5 in stockView
LS-ACCL-SDR-SDR-HF-5M5 m $269.00 2 in stockView
LS-ACXP6-DIN-UP-DIN-HF-8M8 m $279.00 2 in stockView
LS-AC10G-2LC-2LC-HF-50M50 m $279.00 4 in stockView
LS-AC10G-2LC-2LC-ST-50M50 m $279.00 3 in stockView
LS-ACXP6-DIN-UP-DIN-ST-8M8 m $279.00 5 in stockView
LS-ACCL-SDR-SDR-ST-7M7 m $309.00 4 in stockView
LS-ACCL-SDR-SDR-HF-7M7 m $309.00 2 in stockView
LS-ACCL-SDR-MDR-HF-7M7 m $309.00 2 in stockView
LS-ACCL-MDR-MDR-HF-7M7 m Price on request 3 in stockView
LS-ACXP6-DIN-DIN-ST-10M10 m $309.00 5 in stockView
LS-ACXP6-DIN-BNC-ST-10M10 m $309.00 4 in stockView
LS-ACXP6-DIN-DIN-HF-10M10 m $309.00 4 in stockView

See all 186 models in the Camera data cables series
