Cables

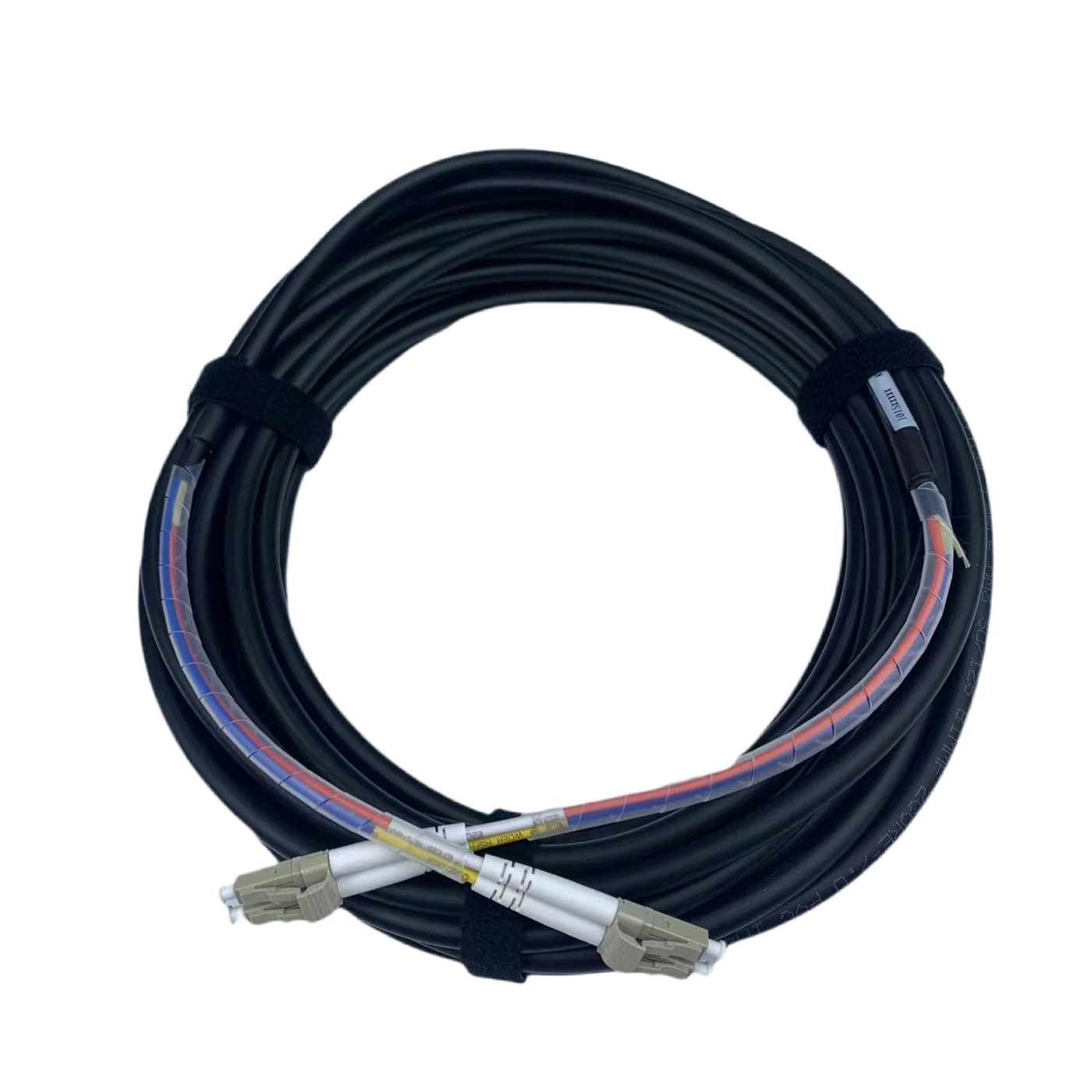

Camera Data Cable, LC (2-core) to LC (2-core), 50 m (LS-AC10G-2LC-2LC-ST-50M)
Model LS-AC10G-2LC-2LC-ST-50M
Camera Data Cable, LC (2-core) to LC (2-core), 50 m. Standard 10GigE fiber patch cable for data transmission with 10GigE fiber cameras and frame grabbers; available in multiple lengths
Features
- Standard 10GigE fiber patch cable for data transmission with 10GigE fiber cameras and frame grabbers; available in multiple lengths
Specifications
| Model | LS-AC10G-2LC-2LC-ST-50M |
|---|---|
| End A connector | LC (2-core) |
| End B connector | LC (2-core) |
| Cable diameter | 6.5 mm |
| Length | 50 m |
| Fiber type | Multimode 50 μm/125 μm |
| Central wavelength | 850 nm |
| Insertion loss | ≤0.30 dB |
| Return loss | ≥36 dB |
| Cable color | Black |
| Connector durability | 200 mating cycles |
| Applicable scenario | Static scenes |
| Working temperature | -20°C~75°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
