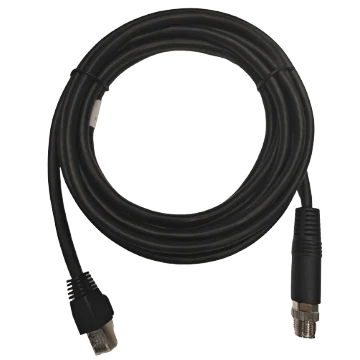

Camera Data Cable, M12 8-pin connector, Male to RJ45, 15 m (LS-ACG-M12X8M-RJ45-SF-WP-15M)
Model LS-ACG-M12X8M-RJ45-SF-WP-15M
Camera Data Cable, M12 8-pin connector, Male to RJ45, 15 m. M12 8-pin X-coded waterproof ultra-flex aviation-connector Ethernet cable for data transmission with GigE cameras; available in multiple lengths
Features
- M12 8-pin X-coded waterproof ultra-flex aviation-connector Ethernet cable for data transmission with GigE cameras; available in multiple lengths
Specifications
| Model | LS-ACG-M12X8M-RJ45-SF-WP-15M |
|---|---|
| End A connector | M12 8-pin connector, Male |
| End B connector | RJ45 |
| Cable diameter | 6.5 mm |
| Length | 15 m |
| Cable mechanical | 26#*4P+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector model | made in China |
| Connector durability | >750 cycles |
| Min. bending radius | 78 mm |
| Applicable scenario | Static/drag-chain/robot arm, Waterproof |
| Max. U-type bending cycles | 10 million times |
| Max. ±90° bending cycles | 3 million times |
| Max. ±180° torsional cycles | 5 million times |
| Max. voltage | 30 VDC |
| Ingress protection | IP67 (with camera mounted) |
| Working temperature | -20°C~ 75°C |
| Certification | RoHS2.0, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
