Cables

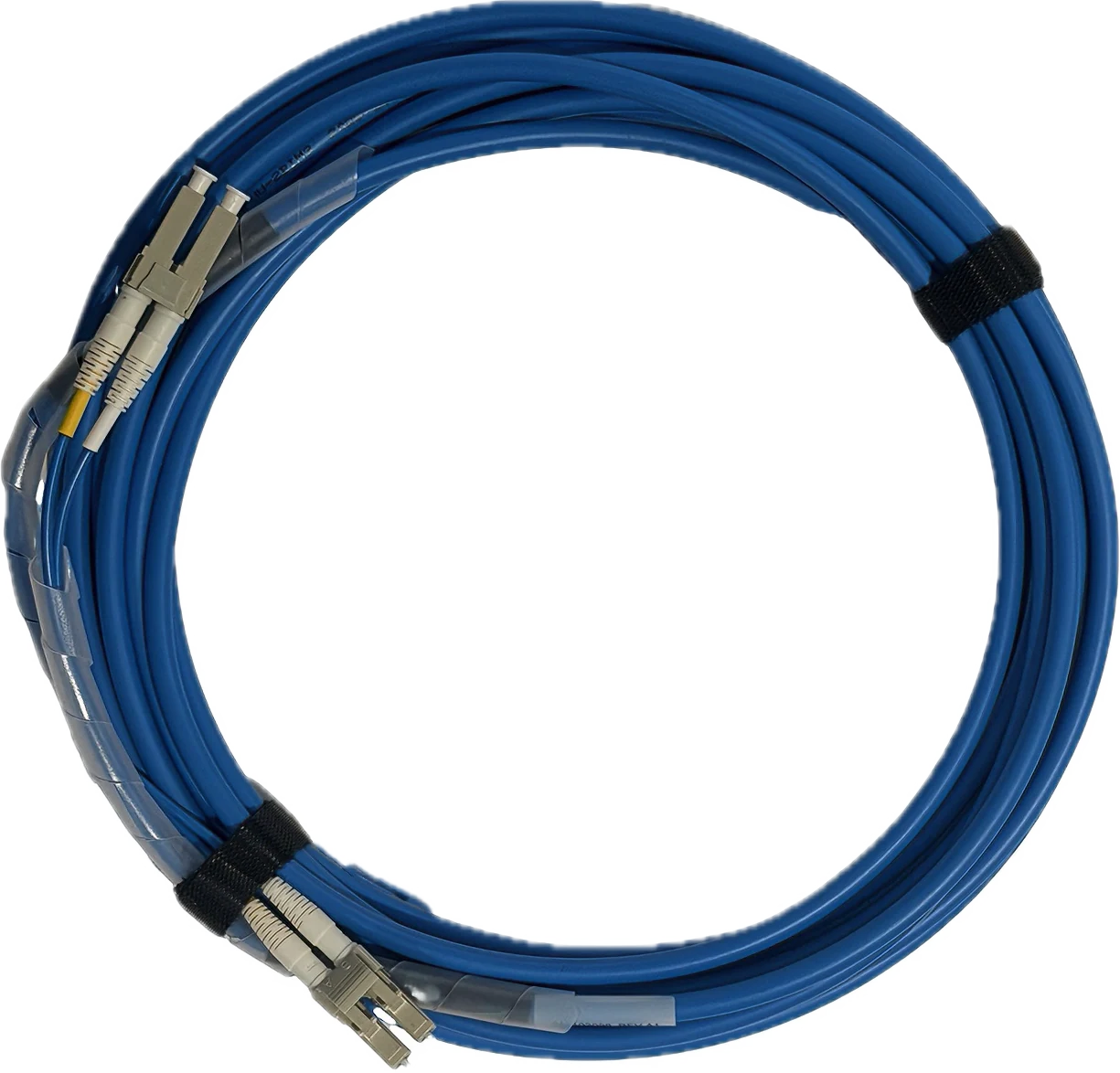

Camera Data Cable, LC (2-core) to LC (2-core), 10 m (LS-AC10G-2LC-2LC-HF-10M)
Model LS-AC10G-2LC-2LC-HF-10M
Camera Data Cable, LC (2-core) to LC (2-core), 10 m. High-flex 10GigE fiber patch cable, 850 nm center wavelength, multimode 50/125 μm, for 10GigE fiber data transmission in motion applications
Features
- High-flex 10GigE fiber patch cable, 850 nm center wavelength, multimode 50/125 μm, for 10GigE fiber data transmission in motion applications
Specifications
| Model | LS-AC10G-2LC-2LC-HF-10M |
|---|---|
| End A connector | LC (2-core) |
| End B connector | LC (2-core) |
| Cable diameter | 5 mm |
| Length | 10 m |
| Fiber type | Multimode 50 μm/125 μm |
| Central wavelength | 850 nm |
| Insertion loss | ≤0.30 dB |
| Return loss | ≥36 dB |
| Cable color | Blue |
| Connector durability | 200 mating cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 5 million times |
| Working temperature | -20°C ~ 75°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
