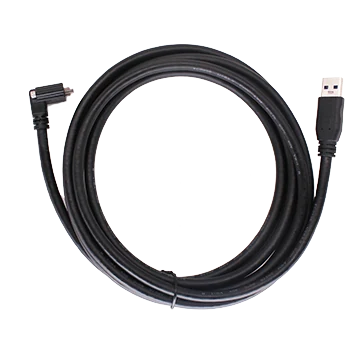

Camera Data Cable, Micro-B male (with screw), Angle (down) to A male, 10 m (LS-ACU3-MBMS-DOWN-AM-SF-10M)
Model LS-ACU3-MBMS-DOWN-AM-SF-10M
Camera Data Cable, Micro-B male (with screw), Angle (down) to A male, 10 m. USB3.0 ultra-flex (right-angle) cable for data transmission and power to USB3.0 cameras; available in multiple lengths
Features
- USB3.0 ultra-flex (right-angle) cable for data transmission and power to USB3.0 cameras; available in multiple lengths
Specifications
| Model | LS-ACU3-MBMS-DOWN-AM-SF-10M |
|---|---|
| End A connector | Micro-B male (with screw), Angle (down) |
| End B connector | A male |
| Cable diameter | 4.8 ± 0.2 mm |
| Length | 10 m |
| Cable mechanical | AOC-Hybrid-UG-2A1b+4*20AWG |
| Jacket | TPU |
| Cable color | Black |
| Connector durability | 5, 000 mating cycles |
| Min. bending radius | 57.6 mm |
| Applicable scenario | Static scenes / drag chains |
| Max. U-type bending cycles | 10 million times |
| Max. ±90° bending cycles | 3 million times |
| Max. ±180° torsional cycles | 5 million times |
| Max. voltage | 5 VDC |
| Working temperature | -20 °C~ 80 °C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
