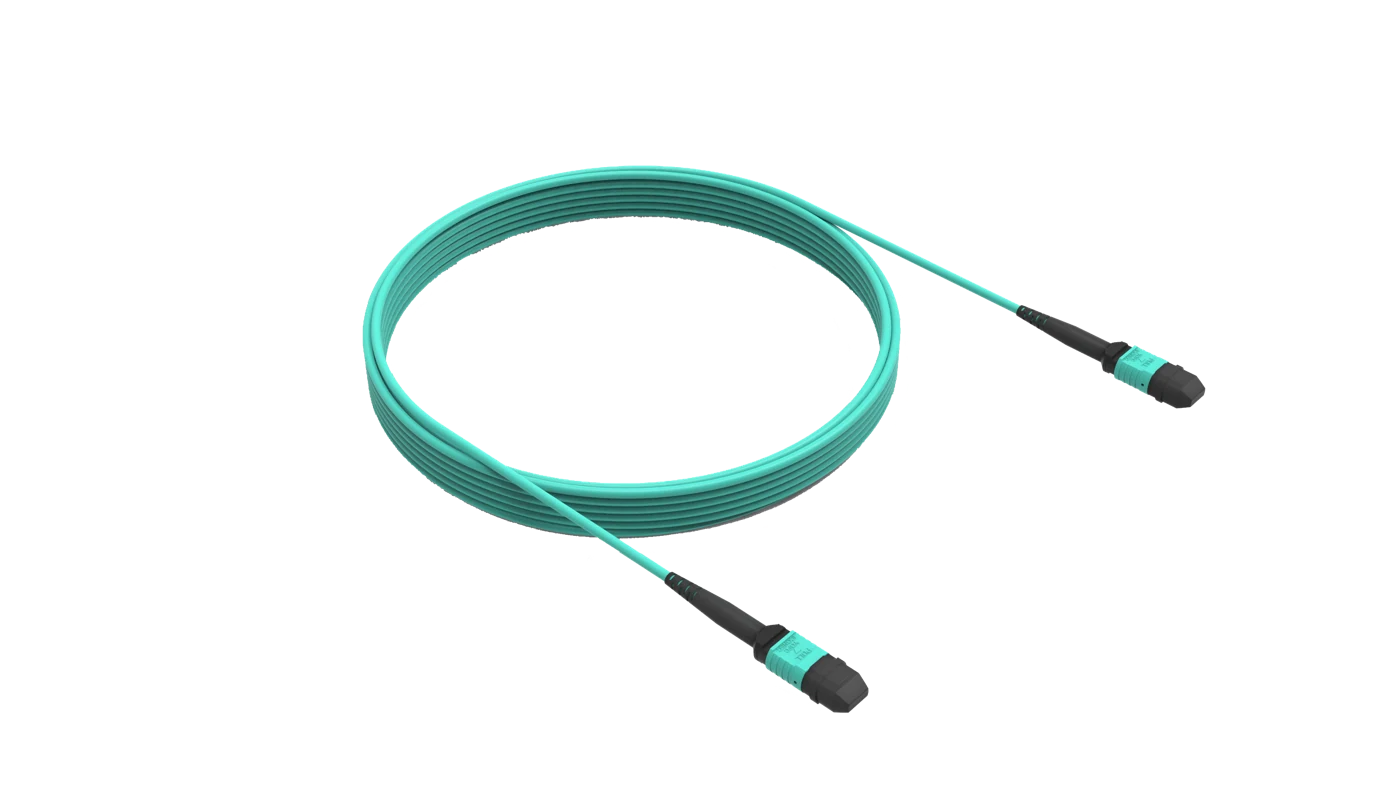

Camera Data Cable, MPO12 Female to MPO12 Female, 10 m (LS-AC100G-MPO-MPO-ST-10M)
Model LS-AC100G-MPO-MPO-ST-10M
Camera Data Cable, MPO12 Female to MPO12 Female, 10 m. Standard QSFP28 fiber patch cable, 850/1300 nm center wavelength, multimode BI OM3, for MPO fiber data transmission in static applications
Features
- Standard QSFP28 fiber patch cable, 850/1300 nm center wavelength, multimode BI OM3, for MPO fiber data transmission in static applications
Specifications
| Model | LS-AC100G-MPO-MPO-ST-10M |
|---|---|
| End A connector | MPO12 Female |
| End B connector | MPO12 Female |
| Cable diameter | 3 mm |
| Length | 10 m |
| Cable color | Aqua |
| Connector durability | 1000 cycles |
| Min. bending radius | 30 mm |
| Applicable scenario | Static scenes |
| Fiber type | BI OM3 multimode fiber |
| Central wavelength | 850/1300 nm |
| Insertion loss | ≤0.35 dB@850/1300 nm |
| Return loss | ≥25 dB@850/1300 nm |
| Working temperature | -20°C~60°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
