How to choose a telecentric lens

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Pick by magnification (sensor size / field of view), working distance and the largest sensor you use.

Shop by sensor format: 4/3-inch telecentric lenses · 1.1-inch telecentric lenses · 1-inch telecentric lenses · 2/3-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses · Full frame telecentric lenses
Shop by mount: F-mount telecentric lenses · M58-mount telecentric lenses · M42-mount telecentric lenses · M72-mount telecentric lenses
Shop by magnification: 0.1x telecentric lenses · 0.2x telecentric lenses · 0.3x telecentric lenses · 0.4x telecentric lenses · 0.5x telecentric lenses · 0.6x telecentric lenses · 0.7x telecentric lenses · 0.8x telecentric lenses · 1x telecentric lenses · 1.5x telecentric lenses · 2x telecentric lenses · 2.5x telecentric lenses · 3x telecentric lenses · 4x telecentric lenses · 6x telecentric lenses

2965 models Configure a systemAll lenses
Telecentric lenses

841-864 of 2965 models

Products

Compare

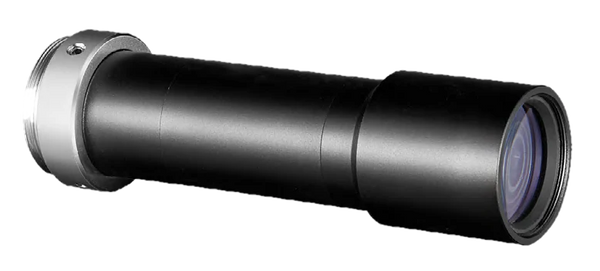

LS-TCL-0775Object-side telecentric lens, 0.7x, 70 mm WD, 2/3" 0.7xC-mount2/3"70 mmF10$819.00 Ships in 2-3 weeks

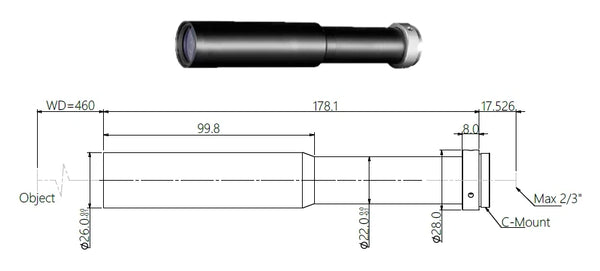

LS-TCL-0782Object-side telecentric lens, 0.7x, 460 mm WD, 2/3" 0.7xC-mount2/3"460 mmF24.5$829.00 Ships in 2-3 weeks

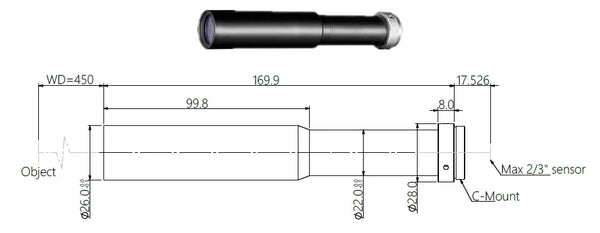

LS-TCL-0774Object-side telecentric lens, 0.6x, 450 mm WD, 2/3" 0.6xC-mount2/3"450 mmF20.8$829.00 Ships in 2-3 weeks
LS-TCL-0794Object-side telecentric lens, 0.8x, 250 mm WD, 2/3", coaxial light port 0.8xC-mount2/3"250±2 mmF20$809.00 Ships in 2-3 weeks
LS-TCL-0788Object-side telecentric lens, 0.8x, 108 mm WD, 2/3", coaxial light port 0.8xC-mount2/3"108 mmF7$789.00 Ships in 2-3 weeks
LS-TCL-0793Object-side telecentric lens, 0.8x, 250 mm WD, 2/3" 0.8xC-mount2/3"250 mmF20$809.00 Ships in 2-3 weeks
LS-TCL-0786Object-side telecentric lens, 0.8x, 108 mm WD, 2/3" 0.8xC-mount2/3"108 mmF7$789.00 Ships in 2-3 weeks
LS-TCL-0792Object-side telecentric lens, 0.8x, 180 mm WD, 2/3" 0.8xC-mount2/3"180 mmF10$789.00 Ships in 2-3 weeks

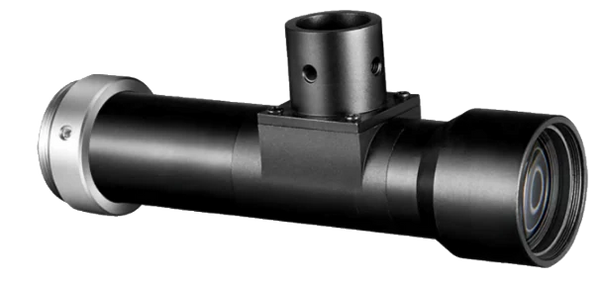

LS-TCL-0779Object-side telecentric lens, 0.7x, 145 mm WD, 2/3", coaxial light port, ≤0.1% distortion 0.7xC-mount2/3"145 mmF16.8$759.00 Ships in 2-3 weeks

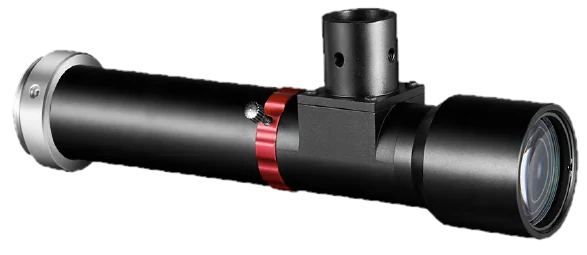

LS-TCL-0780Object-side telecentric lens, 0.7x, 145 mm WD, 2/3", coaxial light port, ≤0.6% distortion 0.7xC-mount2/3"145 mmF16.8$759.00 Ships in 2-3 weeks
LS-TCL-0811Object-side telecentric lens, 1.36x, 73 mm WD, 2/3", coaxial light port 1.36xC-mount2/3"73 mmF11.3$789.00 Ships in 2-3 weeks
LS-TCL-0795Object-side telecentric lens, 0.8x, 300 mm WD, 2/3" 0.8xC-mount2/3"300 mmF24$759.00 Ships in 2-3 weeks

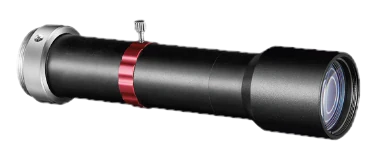

LS-TCL-0781Object-side telecentric lens, 0.7x, 145 mm WD, 2/3", object-side resolution 13 ~ 31 μm 0.7xC-mount2/3"145 mmF13.4 ~ F32$759.00 Ships in 2-3 weeks
LS-TCL-0791Object-side telecentric lens, 0.8x, 130 mm WD, 2/3", object-side resolution 10.6-27 μm 0.8xC-mount2/3"130 mmF12.6-32$739.00 Ships in 2-3 weeks

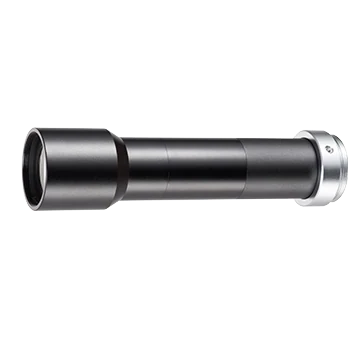

LS-TCL-0778Object-side telecentric lens, 0.7x, 145 mm WD, 2/3", object-side resolution 14.3 μm 0.7xC-mount2/3"145±2 mmF11.2$759.00 Ships in 2-3 weeks

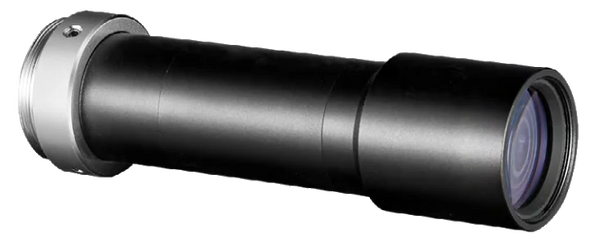

LS-TCL-0777Object-side telecentric lens, 0.7x, 145 mm WD, 2/3", object-side resolution 16.2 μm 0.7xC-mount2/3"145 mmF16.8$759.00 Ships in 2-3 weeks
LS-TCL-0724Object-side telecentric lens, 1x, 63 mm WD, 2/3" 1xC-mount2/3"63 mmF8$739.00 Ships in 2-3 weeks
LS-TCL-0727Object-side telecentric lens, 1x, 108 mm WD, 2/3", coaxial light port 1xC-mount2/3"108 mmF7.0$739.00 Ships in 2-3 weeks
LS-TCL-0725Object-side telecentric lens, 1x, 63 mm WD, 2/3", coaxial light port 1xC-mount2/3"63 mmF8$739.00 Ships in 2-3 weeks
LS-TCL-0726Object-side telecentric lens, 1x, 108 mm WD, 2/3" 1xC-mount2/3"108 mmF7$739.00 Ships in 2-3 weeks
LS-TCL-0728Object-side telecentric lens, 1x, 110 mm WD, 2/3" 1xC-mount2/3"110±2 mmF11$739.00 Ships in 2-3 weeks
LS-TCL-0789Object-side telecentric lens, 0.8x, 130 mm WD, 2/3", object-side resolution 9.4 μm 0.8xC-mount2/3"130±2 mmF11.2$739.00 Ships in 2-3 weeks
LS-TCL-0729Object-side telecentric lens, 1x, 110 mm WD, 2/3", coaxial light port 1xC-mount2/3"110±2 mmF11$739.00 Ships in 2-3 weeks

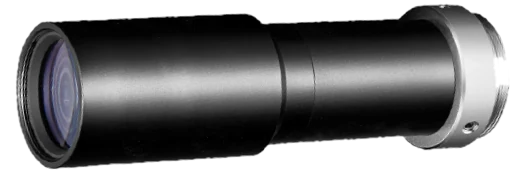

LS-TCL-0737Object-side telecentric lens, 2x, 63 mm WD, 2/3" 2xC-mount2/3"63 mmF10$729.00 Ships in 2-3 weeks

How to choose a telecentric lens

A telecentric lens keeps the image size of the part constant when the part moves closer or farther within the depth of field, and removes perspective, so edges and holes are measured at their true size. Choose by magnification, sensor and working distance.

1. Magnification = sensor size / field of view

The field of view is the sensor size divided by the magnification. Pick the magnification that fits the part with a small margin, or let the telecentric lens calculator work it out for your sensor and part:

MagnificationField of view, 2/3-inch sensor (8.8 x 6.6 mm)Field of view, 1.1-inch sensor (14.1 x 10.3 mm)
0.1x88 x 66 mm141 x 103 mm
0.2x44 x 33 mm70.5 x 51.5 mm
0.3x29.3 x 22 mm47 x 34.3 mm
0.5x17.6 x 13.2 mm28.2 x 20.6 mm
0.8x11 x 8.3 mm17.6 x 12.9 mm
1x8.8 x 6.6 mm14.1 x 10.3 mm
2x4.4 x 3.3 mm7.1 x 5.2 mm
4x2.2 x 1.7 mm3.5 x 2.6 mm

2. Sensor format

The lens must be rated for the camera's sensor format or larger, or the corners go dark. Larger sensors need larger (and longer) lenses with F-mount or M58 / M72 mounts.

3. Object-side or bi-telecentric

Object-side telecentric lenses keep the magnification constant as the part moves. Bi-telecentric lenses are telecentric on the camera side too, so small focus changes and sensor tilt do not change the size either: the choice for the highest measuring accuracy.

4. Working distance, depth of field, front size

Check the working distance against the space in the machine, and the depth of field against how much the part height varies. The front of the lens must be larger than the field of view - a telecentric lens only sees what fits in front of it.

5. Lighting

For silhouettes, pair the lens with a collimated backlight: parallel light gives the sharpest edges. For surface features use a coaxial light that fits the lens.
