Diffused machine vision bar lights

Size a diffused linear illumination layout

Compare bar lights classified as diffused for machine vision. Select emitting length, mounting position and colour around the object field and the reflections the camera must see.

All Bar lights

427 models Configure a systemAll lights
Diffused machine vision bar lights

73-96 of 427 models

Products

Compare
LS-BAR-1078Bar light, 154 x 154 mm, White White154 mm × 154 mm × 42 mm11.5 WDiffused--$259.00 Ships in 2-3 weeks
LS-BAR-1077Bar light, 112 x 112 mm, White White112 mm × 112 mm × 36 mm8.8 WDiffused--$229.00 Ships in 2-3 weeks
LS-BAR-1076Bar light, 78 x 78 mm, White White78 mm × 78 mm × 25 mm3.6 WDiffused--$189.00 Ships in 2-3 weeks
LS-BAR-0893990 x 22 mm Long bar light ---Diffused24 V990x22 mm$1,239.00 Ships in 2-3 weeks
LS-BAR-0892750 x 22 mm Long bar light ---Diffused24 V750x22 mm$729.00 Ships in 2-3 weeks
LS-BAR-0891495 x 22 mm Long bar light ---Diffused24 V495x22 mm$569.00 Ships in 2-3 weeks
LS-BAR-0890250 x 22 mm Long bar light ---Diffused24 V250x22 mm$289.00 Ships in 2-3 weeks

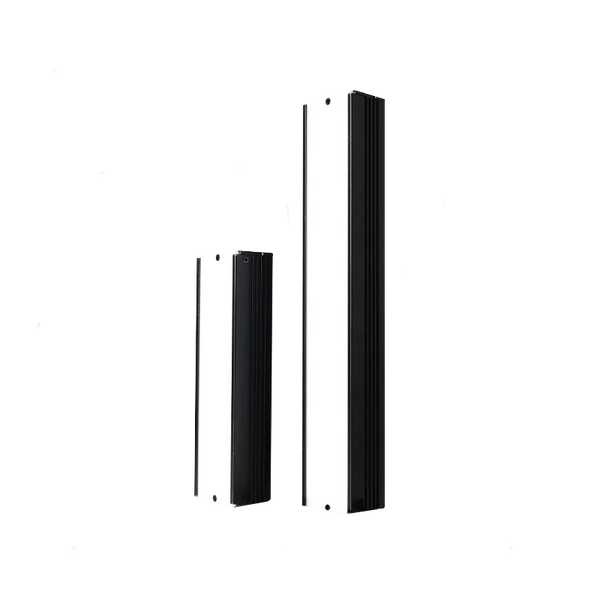

LS-BAR-0454600 x 50 mm Bar light ---Diffused24 V-$629.00 Ships in 2-3 weeks
LS-BAR-0453540 x 50 mm Bar light ---Diffused24 V-$579.00 Ships in 2-3 weeks
LS-BAR-0452480 x 50 mm Bar light ---Diffused24 V-$519.00 Ships in 2-3 weeks
LS-BAR-0449420 x 50 mm Bar light ---Diffused24 V-$569.00 Ships in 2-3 weeks
LS-BAR-0446360 x 50 mm Bar light ---Diffused24 V-$449.00 Ships in 2-3 weeks
LS-BAR-0443300 x 50 mm Bar light ---Diffused24 V-$399.00 Ships in 2-3 weeks
LS-BAR-0440240 x 50 mm Bar light ---Diffused24 V-$349.00 Ships in 2-3 weeks
LS-BAR-0435180 x 50 mm Bar light ---Diffused24 V-$279.00 Ships in 2-3 weeks
LS-BAR-0430120 x 50 mm Bar light ---Diffused24 V-$229.00 Ships in 2-3 weeks
LS-BAR-042560 x 50 mm Bar light ---Diffused24 V-$169.00 Ships in 2-3 weeks
LS-BAR-0441300 x 20 mm Bar light Red, Blue, Green, White--Diffused24 V-$399.00 Ships in 2-3 weeks
LS-BAR-042460 x 30 mm Bar light Red, Blue, Green, White--Diffused24 V-$169.00 Ships in 2-3 weeks
LS-BAR-042360 x 20 mm Bar light Red, Blue, Green, White--Diffused24 V-$169.00 Ships in 2-3 weeks
LS-BAR-03772487 x 32 mm Diffused bar light Red, Green, Blue, White--Diffused--$2,529.00 Ships in 2-3 weeks
LS-BAR-03762487 x 22 mm Diffused bar light Red, Green, Blue, White--Diffused--$2,519.00 Ships in 2-3 weeks
LS-BAR-03752487 x 12 mm Diffused bar light Red, Green, Blue, White--Diffused--$2,519.00 Ships in 2-3 weeks
LS-BAR-03742442 x 32 mm Diffused bar light Red, Green, Blue, White--Diffused--$2,489.00 Ships in 2-3 weeks

Size a diffused linear illumination layout

A bar light provides a linear source that can be positioned around the inspection. Diffusion is one way to change the highlights and shadows produced by that source. Use the actual emitting dimensions and intended distance when planning one bar or a multi-light arrangement.

  • Compare emitting length and width with the region of interest. Check whether a printed dimension describes the illuminated area or only the outside housing.
  • Allow adjustment of position and angle to evaluate the complete field. A bar length alone does not establish a uniform illuminated area at every distance.
  • Check the model supply, power, connector and control mode, and size the controller for the actual number of lights and their combined electrical load.
