Lights

Diffused machine vision bar lights

Size a diffused linear illumination layout

Compare bar lights classified as diffused for machine vision. Select emitting length, mounting position and colour around the object field and the reflections the camera must see.

All Bar lights

427 models Configure a systemAll lights
Diffused machine vision bar lights

409-427 of 427 models

Products

  • Bar light, 108 x 40 mm, Blue

    LS-BAR-1095

    • Colour Blue
    • Emitting area 96 mm × 31.6 mm
    • Size 108 mm × 40 mm × 30 mm

    $209.00

    Ships in 2-3 weeks

  • Bar light, 108 x 40 mm, Red

    LS-BAR-1098

    • Colour Red
    • Emitting area 96 mm × 31.6 mm
    • Size 108 mm × 40 mm × 30 mm

    $209.00

    Ships in 2-3 weeks

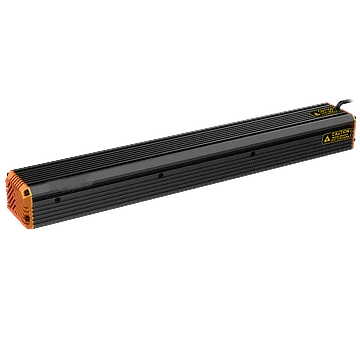

  • Bar light, 108 x 40 mm, White

    LS-BAR-1099

    • Colour White
    • Emitting area 96 mm × 31.6 mm
    • Size 108 mm × 40 mm × 30 mm

    $209.00

    Ships in 2-3 weeks

  • Bar light, 108 x 30 mm, Blue

    LS-BAR-1090

    • Colour Blue
    • Emitting area 96 mm × 21.6 mm
    • Size 108 mm × 30 mm × 30 mm

    $209.00

    Ships in 2-3 weeks

  • Bar light, 108 x 30 mm, Red

    LS-BAR-1093

    • Colour Red
    • Emitting area 96 mm × 21.6 mm
    • Size 108 mm × 30 mm × 30 mm

    $209.00

    Ships in 2-3 weeks

  • Bar light, 108 x 30 mm, White

    LS-BAR-1094

    • Colour White
    • Emitting area 96 mm × 21.6 mm
    • Size 108 mm × 30 mm × 30 mm

    $209.00

    Ships in 2-3 weeks

  • Bar light, 63 x 40 mm, Blue

    LS-BAR-1085

    • Colour Blue
    • Emitting area 51 mm × 31.6 mm
    • Size 63 mm × 40 mm × 30 mm

    $159.00

    Ships in 2-3 weeks

  • Bar light, 63 x 40 mm, Red

    LS-BAR-1088

    • Colour Red
    • Emitting area 51 mm × 31.6 mm
    • Size 63 mm × 40 mm × 30 mm

    $159.00

    Ships in 2-3 weeks

  • Bar light, 63 x 40 mm, White

    LS-BAR-1089

    • Colour White
    • Emitting area 51 mm × 31.6 mm
    • Size 63 mm × 40 mm × 30 mm

    $159.00

    Ships in 2-3 weeks

  • Bar light, 63 x 30 mm, Blue

    LS-BAR-1080

    • Colour Blue
    • Emitting area 51 mm × 21.6 mm
    • Size 63 mm × 30 mm × 30 mm

    $159.00

    Ships in 2-3 weeks

  • Bar light, 63 x 30 mm, Red

    LS-BAR-1083

    • Colour Red
    • Emitting area 51 mm × 21.6 mm
    • Size 63 mm × 30 mm × 30 mm

    $159.00

    Ships in 2-3 weeks

  • Bar light, 63 x 30 mm, White

    LS-BAR-1084

    • Colour White
    • Emitting area 51 mm × 21.6 mm
    • Size 63 mm × 30 mm × 30 mm

    $159.00

    Ships in 2-3 weeks

Compare
LS-BAR-1096Bar light, 108 x 40 mm, IR 850 nm Infrared96 mm × 31.6 mm108 mm × 40 mm × 30 mm24 VDC8.4 W850 nm$209.00 Ships in 2-3 weeks
LS-BAR-1095Bar light, 108 x 40 mm, Blue Blue96 mm × 31.6 mm108 mm × 40 mm × 30 mm24 VDC7.7 W465 nm$209.00 Ships in 2-3 weeks
LS-BAR-1098Bar light, 108 x 40 mm, Red Red96 mm × 31.6 mm108 mm × 40 mm × 30 mm24 VDC6 W625 nm$209.00 Ships in 2-3 weeks
LS-BAR-1099Bar light, 108 x 40 mm, White White96 mm × 31.6 mm108 mm × 40 mm × 30 mm24 VDC10.6 W-$209.00 Ships in 2-3 weeks
LS-BAR-1092Bar light, 108 x 30 mm, IR 940 nm Infrared96 mm × 21.6 mm108 mm × 30 mm × 30 mm24 VDC5.8 W940 nm$209.00 Ships in 2-3 weeks
LS-BAR-1091Bar light, 108 x 30 mm, IR 850 nm Infrared96 mm × 21.6 mm108 mm × 30 mm × 30 mm24 VDC5.5 W850 nm$209.00 Ships in 2-3 weeks
LS-BAR-1090Bar light, 108 x 30 mm, Blue Blue96 mm × 21.6 mm108 mm × 30 mm × 30 mm24 VDC5 W465 nm$209.00 Ships in 2-3 weeks
LS-BAR-1093Bar light, 108 x 30 mm, Red Red96 mm × 21.6 mm108 mm × 30 mm × 30 mm24 VDC4.1 W625 nm$209.00 Ships in 2-3 weeks
LS-BAR-1094Bar light, 108 x 30 mm, White White96 mm × 21.6 mm108 mm × 30 mm × 30 mm24 VDC6.9 W-$209.00 Ships in 2-3 weeks
LS-BAR-1087Bar light, 63 x 40 mm, IR 940 nm Infrared51 mm × 31.6 mm63 mm × 40 mm × 30 mm24 VDC4.3 W940 nm$159.00 Ships in 2-3 weeks
LS-BAR-1086Bar light, 63 x 40 mm, IR 850 nm Infrared51 mm × 31.6 mm63 mm × 40 mm × 30 mm24 VDC4.3 W850 nm$159.00 Ships in 2-3 weeks
LS-BAR-1085Bar light, 63 x 40 mm, Blue Blue51 mm × 31.6 mm63 mm × 40 mm × 30 mm24 VDC3.6 W465 nm$159.00 Ships in 2-3 weeks
LS-BAR-1088Bar light, 63 x 40 mm, Red Red51 mm × 31.6 mm63 mm × 40 mm × 30 mm24 VDC2.9 W625 nm$159.00 Ships in 2-3 weeks
LS-BAR-1089Bar light, 63 x 40 mm, White White51 mm × 31.6 mm63 mm × 40 mm × 30 mm24 VDC5.3 W-$159.00 Ships in 2-3 weeks
LS-BAR-1082Bar light, 63 x 30 mm, IR 940 nm Infrared51 mm × 21.6 mm63 mm × 30 mm × 30 mm24 VDC2.9 W940 nm$159.00 Ships in 2-3 weeks
LS-BAR-1081Bar light, 63 x 30 mm, IR 850 nm Infrared51 mm × 21.6 mm63 mm × 30 mm × 30 mm24 VDC2.9 W850 nm$159.00 Ships in 2-3 weeks
LS-BAR-1080Bar light, 63 x 30 mm, Blue Blue51 mm × 21.6 mm63 mm × 30 mm × 30 mm24 VDC2.6 W465 nm$159.00 Ships in 2-3 weeks
LS-BAR-1083Bar light, 63 x 30 mm, Red Red51 mm × 21.6 mm63 mm × 30 mm × 30 mm24 VDC1.9 W625 nm$159.00 Ships in 2-3 weeks
LS-BAR-1084Bar light, 63 x 30 mm, White White51 mm × 21.6 mm63 mm × 30 mm × 30 mm24 VDC3.4 W-$159.00 Ships in 2-3 weeks

Size a diffused linear illumination layout

A bar light provides a linear source that can be positioned around the inspection. Diffusion is one way to change the highlights and shadows produced by that source. Use the actual emitting dimensions and intended distance when planning one bar or a multi-light arrangement.

  • Compare emitting length and width with the region of interest. Check whether a printed dimension describes the illuminated area or only the outside housing.
  • Allow adjustment of position and angle to evaluate the complete field. A bar length alone does not establish a uniform illuminated area at every distance.
  • Check the model supply, power, connector and control mode, and size the controller for the actual number of lights and their combined electrical load.

Configure a system · Browse all Bar lights
