Diffused machine vision bar lights

Size a diffused linear illumination layout

Compare bar lights classified as diffused for machine vision. Select emitting length, mounting position and colour around the object field and the reflections the camera must see.

All Bar lights

427 models Configure a systemAll lights
Diffused machine vision bar lights

385-408 of 427 models

Products

  • Bar light, 243 x 30 mm, Blue

    LS-BAR-1120

    • Colour Blue
    • Emitting area 231 mm × 21.6 mm
    • Size 243 mm × 30 mm × 30 mm

    $329.00

    Ships in 2-3 weeks

  • Bar light, 243 x 30 mm, Red

    LS-BAR-1123

    • Colour Red
    • Emitting area 231 mm × 21.6 mm
    • Size 243 mm × 30 mm × 30 mm

    $329.00

    Ships in 2-3 weeks

  • Bar light, 243 x 30 mm, White

    LS-BAR-1124

    • Colour White
    • Emitting area 231 mm × 21.6 mm
    • Size 243 mm × 30 mm × 30 mm

    $329.00

    Ships in 2-3 weeks

  • Bar light, 198 x 40 mm, Blue

    LS-BAR-1115

    • Colour Blue
    • Emitting area 186 mm × 31.6 mm
    • Size 198 mm × 40 mm × 30 mm

    $319.00

    Ships in 2-3 weeks

  • Bar light, 198 x 40 mm, Red

    LS-BAR-1118

    • Colour Red
    • Emitting area 186 mm × 31.6 mm
    • Size 198 mm × 40 mm × 30 mm

    $319.00

    Ships in 2-3 weeks

  • Bar light, 198 x 40 mm, White

    LS-BAR-1119

    • Colour White
    • Emitting area 186 mm × 31.6 mm
    • Size 198 mm × 40 mm × 30 mm

    $319.00

    Ships in 2-3 weeks

  • Bar light, 198 x 30 mm, Red

    LS-BAR-1113

    • Colour Red
    • Emitting area 186 mm × 21.6 mm
    • Size 198 mm × 30 mm × 30 mm

    $319.00

    Ships in 2-3 weeks

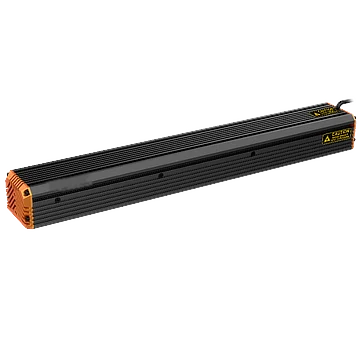

  • Bar light, 198 x 30 mm, Blue

    LS-BAR-1110

    • Colour Blue
    • Emitting area 186 mm × 21.6 mm
    • Size 198 mm × 30 mm × 30 mm

    $319.00

    Ships in 2-3 weeks

  • Bar light, 198 x 30 mm, White

    LS-BAR-1114

    • Colour White
    • Emitting area 186 mm × 21.6 mm
    • Size 198 mm × 30 mm × 30 mm

    $319.00

    Ships in 2-3 weeks

  • Bar light, 153 x 40 mm, Blue

    LS-BAR-1105

    • Colour Blue
    • Emitting area 141 mm × 31.6 mm
    • Size 153 mm × 40 mm × 30 mm

    $259.00

    Ships in 2-3 weeks

  • Bar light, 153 x 40 mm, White

    LS-BAR-1109

    • Colour White
    • Emitting area 141 mm × 31.6 mm
    • Size 153 mm × 40 mm × 30 mm

    $259.00

    Ships in 2-3 weeks

  • Bar light, 153 x 30 mm, Blue

    LS-BAR-1100

    • Colour Blue
    • Emitting area 141 mm × 21.6 mm
    • Size 153 mm × 30 mm × 30 mm

    $259.00

    Ships in 2-3 weeks

  • Bar light, 153 x 30 mm, Red

    LS-BAR-1103

    • Colour Red
    • Emitting area 141 mm × 21.6 mm
    • Size 153 mm × 30 mm × 30 mm

    $259.00

    Ships in 2-3 weeks

  • Bar light, 153 x 30 mm, White

    LS-BAR-1104

    • Colour White
    • Emitting area 141 mm × 21.6 mm
    • Size 153 mm × 30 mm × 30 mm

    $259.00

    Ships in 2-3 weeks

  • Bar light, 153 x 40 mm, Red

    LS-BAR-1108

    • Colour Red
    • Emitting area 141 mm × 31.6 mm
    • Size 153 mm × 40 mm × 30 mm

    $259.00

    Ships in 2-3 weeks

Compare
LS-BAR-1120Bar light, 243 x 30 mm, Blue Blue231 mm × 21.6 mm243 mm × 30 mm × 30 mm24 VDC12.7 W465 nm$329.00 Ships in 2-3 weeks
LS-BAR-1123Bar light, 243 x 30 mm, Red Red231 mm × 21.6 mm243 mm × 30 mm × 30 mm24 VDC9.8 W625 nm$329.00 Ships in 2-3 weeks
LS-BAR-1124Bar light, 243 x 30 mm, White White231 mm × 21.6 mm243 mm × 30 mm × 30 mm24 VDC16.9 W-$329.00 Ships in 2-3 weeks
LS-BAR-1117Bar light, 198 x 40 mm, IR 940 nm Infrared186 mm × 31.6 mm198 mm × 40 mm × 30 mm24 VDC17.3 W940 nm$319.00 Ships in 2-3 weeks
LS-BAR-1116Bar light, 198 x 40 mm, IR 850 nm Infrared186 mm × 31.6 mm198 mm × 40 mm × 30 mm24 VDC16.8 W850 nm$319.00 Ships in 2-3 weeks
LS-BAR-1115Bar light, 198 x 40 mm, Blue Blue186 mm × 31.6 mm198 mm × 40 mm × 30 mm24 VDC15.4 W465 nm$319.00 Ships in 2-3 weeks
LS-BAR-1118Bar light, 198 x 40 mm, Red Red186 mm × 31.6 mm198 mm × 40 mm × 30 mm24 VDC12 W625 nm$319.00 Ships in 2-3 weeks
LS-BAR-1119Bar light, 198 x 40 mm, White White186 mm × 31.6 mm198 mm × 40 mm × 30 mm24 VDC20.9 W-$319.00 Ships in 2-3 weeks
LS-BAR-1112Bar light, 198 x 30 mm, IR 940 nm Infrared186 mm × 21.6 mm198 mm × 30 mm × 30 mm24 VDC11.5 W940 nm$319.00 Ships in 2-3 weeks
LS-BAR-1111Bar light, 198 x 30 mm, IR 850 nm Infrared186 mm × 21.6 mm198 mm × 30 mm × 30 mm24 VDC11.3 W850 nm$319.00 Ships in 2-3 weeks
LS-BAR-1113Bar light, 198 x 30 mm, Red Red186 mm × 21.6 mm198 mm × 30 mm × 30 mm24 VDC6 W625 nm$319.00 Ships in 2-3 weeks
LS-BAR-1110Bar light, 198 x 30 mm, Blue Blue186 mm × 21.6 mm198 mm × 30 mm × 30 mm24 VDC10.3 W465 nm$319.00 Ships in 2-3 weeks
LS-BAR-1114Bar light, 198 x 30 mm, White White186 mm × 21.6 mm198 mm × 30 mm × 30 mm24 VDC13.5 W-$319.00 Ships in 2-3 weeks
LS-BAR-1107Bar light, 153 x 40 mm, IR 940 nm Infrared141 mm × 31.6 mm153 mm × 40 mm × 30 mm24 VDC13 W940 nm$259.00 Ships in 2-3 weeks
LS-BAR-1106Bar light, 153 x 40 mm, IR 850 nm Infrared141 mm × 31.6 mm153 mm × 40 mm × 30 mm24 VDC12.7 W850 nm$259.00 Ships in 2-3 weeks
LS-BAR-1105Bar light, 153 x 40 mm, Blue Blue141 mm × 31.6 mm153 mm × 40 mm × 30 mm24 VDC11.3 W465 nm$259.00 Ships in 2-3 weeks
LS-BAR-1109Bar light, 153 x 40 mm, White White141 mm × 31.6 mm153 mm × 40 mm × 30 mm24 VDC15.7 W-$259.00 Ships in 2-3 weeks
LS-BAR-1102Bar light, 153 x 30 mm, IR 940 nm Infrared141 mm × 21.6 mm153 mm × 30 mm × 30 mm24 VDC8.6 W940 nm$259.00 Ships in 2-3 weeks
LS-BAR-1101Bar light, 153 x 30 mm, IR 850 nm Infrared141 mm × 21.6 mm153 mm × 30 mm × 30 mm24 VDC8.4 W850 nm$259.00 Ships in 2-3 weeks
LS-BAR-1100Bar light, 153 x 30 mm, Blue Blue141 mm × 21.6 mm153 mm × 30 mm × 30 mm24 VDC7.7 W465 nm$259.00 Ships in 2-3 weeks
LS-BAR-1103Bar light, 153 x 30 mm, Red Red141 mm × 21.6 mm153 mm × 30 mm × 30 mm24 VDC6 W625 nm$259.00 Ships in 2-3 weeks
LS-BAR-1104Bar light, 153 x 30 mm, White White141 mm × 21.6 mm153 mm × 30 mm × 30 mm24 VDC10 W-$259.00 Ships in 2-3 weeks
LS-BAR-1108Bar light, 153 x 40 mm, Red Red141 mm × 31.6 mm153 mm × 40 mm × 30 mm24 VDC8.9 W625 nm$259.00 Ships in 2-3 weeks
LS-BAR-1097Bar light, 108 x 40 mm, IR 940 nm Infrared96 mm × 31.6 mm108 mm × 40 mm × 30 mm24 VDC8.6 W940 nm$209.00 Ships in 2-3 weeks

Size a diffused linear illumination layout

A bar light provides a linear source that can be positioned around the inspection. Diffusion is one way to change the highlights and shadows produced by that source. Use the actual emitting dimensions and intended distance when planning one bar or a multi-light arrangement.

  • Compare emitting length and width with the region of interest. Check whether a printed dimension describes the illuminated area or only the outside housing.
  • Allow adjustment of position and angle to evaluate the complete field. A bar length alone does not establish a uniform illuminated area at every distance.
  • Check the model supply, power, connector and control mode, and size the controller for the actual number of lights and their combined electrical load.

Configure a system · Browse all Bar lights
