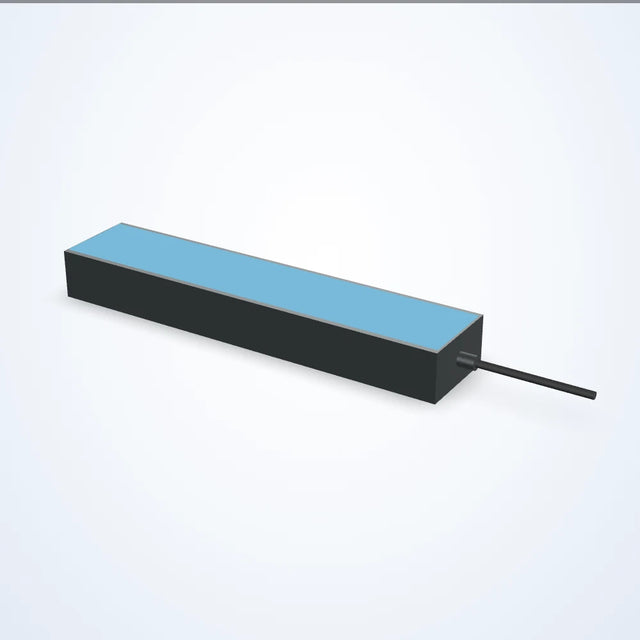

Diffused machine vision bar lights

Size a diffused linear illumination layout

Compare bar lights classified as diffused for machine vision. Select emitting length, mounting position and colour around the object field and the reflections the camera must see.

All Bar lights

427 models Configure a systemAll lights
Diffused machine vision bar lights

1-24 of 427 models

Products

Compare
LS-BAR-0177Bar light, 300 mm lit length, IP65 White, Red, Infrared, Blue24 VDCDiffusedDiffused--$549.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0176Bar light, 289 mm lit length, Diffused lens White, Red, Green, Infrared, Blue24 VDCDiffusedDiffused--$949.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0171Bar light, 149.9 mm lit length, IP65 White, Red, Green, Infrared, Blue24 VDCDiffusedDiffused--$519.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0169Bar light, 307.3 mm lit length, 71.1 mm wide, Diffused lens White, Red, Green, Infrared, Blue24 VDCDiffusedDiffused--$1,409.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0162Bar light, 1154 mm lit length, Diffused lens White, Infrared, Red, Green, Blue24 VDCDiffusedDiffused--$1,939.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0167Bar light, 866 mm lit length, Diffused lens White, Infrared, Red, Green, Blue24 VDCDiffusedDiffused--$1,519.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0166Bar light, 578 mm lit length, Diffused lens White, Infrared, Red, Green, Blue24 VDCDiffusedDiffused--$1,069.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0165Bar light, 434 mm lit length, Diffused lens White, Infrared, Red, Green, Blue24 VDCDiffusedDiffused--$869.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0164Bar light, 290 mm lit length, Diffused lens White, Infrared, Red, Green, Blue24 VDCDiffusedDiffused--$649.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0163Bar light, 146 mm lit length, Diffused lens White, Infrared, Red, Green, Blue24 VDCDiffusedDiffused--$509.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0152Bar light, 578 mm lit length, IP65, Diffused lens White, Infrared, Red24 VDCDiffusedDiffused--$1,029.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0151Bar light, 290 mm lit length, IP65, Diffused lens White, Infrared, Red24 VDCDiffusedDiffused--$759.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0148Bar light, 300 mm lit length, IP50 White, Red, Infrared, Blue24 VDCDiffusedDiffused--$549.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0144Bar light, 1187 mm lit length, Diffused lens White, Red, Green, Infrared, Blue24 VDCDiffusedDiffused--$1,479.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0147Bar light, 891.6 mm lit length, Diffused lens White, Red, Green, Infrared, Blue24 VDCDiffusedDiffused--$1,199.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0146Bar light, 596.6 mm lit length, Diffused lens White, Red, Green, Infrared, Blue24 VDCDiffusedDiffused--$909.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0145Bar light, 301.6 mm lit length, Diffused lens White, Red, Green, Infrared, Blue24 VDCDiffusedDiffused--$639.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0136Bar light, 289 mm lit length, Diffused lens, 17 W White, Red, Green, Infrared, Blue24 VDCDiffusedDiffused--$949.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-0137Bar light, 289 mm lit length, Diffused lens, 20 W White, Red, Green, Infrared, Blue24 VDCDiffusedDiffused--$799.00Quote Built to order: ships in about 1-2 weeks
LS-BAR-1324Bar light, 237 x 38 mm, White, 19.5 W White---225 mm × 32 mm237 mm × 38 mm × 27 mm$269.00 Ships in 2-3 weeks
LS-BAR-1300Bar light, 1002 x 38 mm, White White---990 mm × 32 mm1002 mm × 38 mm × 27 mm$1,239.00 Ships in 2-3 weeks
LS-BAR-1299Bar light, 1002 x 28 mm, White White---990 mm × 22 mm1002 mm × 28 mm × 27 mm$1,239.00 Ships in 2-3 weeks
LS-BAR-1297Bar light, 642 x 38 mm, Red Red---630 mm × 32 mm642 mm × 38 mm × 27 mm$669.00 Ships in 2-3 weeks

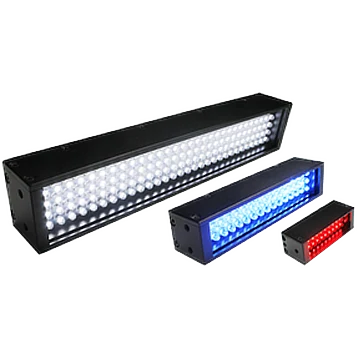

LS-BAR-1298Bar light, 642 x 38 mm, White White---630 mm × 32 mm642 mm × 38 mm × 27 mm$739.00 Ships in 2-3 weeks

Size a diffused linear illumination layout

A bar light provides a linear source that can be positioned around the inspection. Diffusion is one way to change the highlights and shadows produced by that source. Use the actual emitting dimensions and intended distance when planning one bar or a multi-light arrangement.

  • Compare emitting length and width with the region of interest. Check whether a printed dimension describes the illuminated area or only the outside housing.
  • Allow adjustment of position and angle to evaluate the complete field. A bar length alone does not establish a uniform illuminated area at every distance.
  • Check the model supply, power, connector and control mode, and size the controller for the actual number of lights and their combined electrical load.
