Bar light, 290 mm lit length, IP65, Diffused lens (LS-BAR-0151)
Model LS-BAR-0151
- ColourWhite, Infrared, Red
- Voltage24 VDC
- AngleDiffused
- TypeDiffused
from $759.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 3 available
Configuration LS-BAR-0151-1 $759.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 290 x 40 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour below (3 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0151 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 3.5 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Lens / beam angle | Diffused |
|---|---|
| Diffused | Diffused |
Environment and compliance
| Operating temperature | -10 to 40 °C |
|---|---|
| IP rating | IP65 |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Max overcurrent strobe current | 2 mA |
| Max overcurrent strobe input power | 23 W |
| Maximum current (overcurrent strobe) (mA) | 2 |
| Maximum input power overcurrent strobe (W) | 23 |
| Maximum overcurrent strobe duration (ms) | 5 |
| Maximum overcurrent strobe duty cycle (%) | 3.5 |
| Maximum overcurrent strobe frequency (Hz) | 4000 |
| Maximum overcurrent strobe latency (µs) | 6 |
| Minimum overcurrent strobe duration (µs) | 1000 |
| NPN trigger current (mA) | 10 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 13.4 |
| PNP trigger voltage (V) | 3.3-24 VDC |

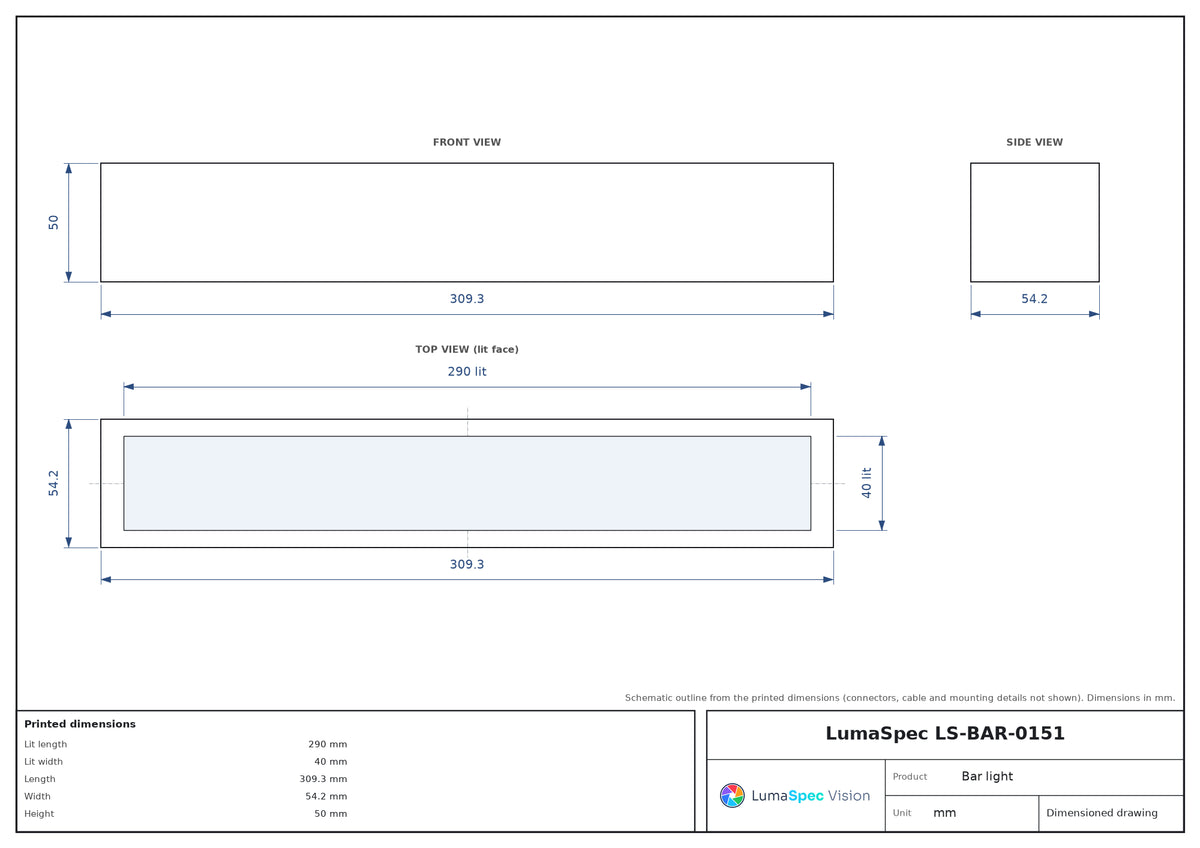

Mechanical
| Lit length (mm) | 290 |
|---|---|
| Lit width (mm) | 40 |
| Length (mm) | 309.3 |
| Width (mm) | 54.2 |
| Height (mm) | 50 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
