Bar light series, 50 mm high, 5 Pin M12 Male A-Coded (S16)
  • Bar light series, 50 mm high, 5 Pin M12 Male A-Coded (S16)
  • Bar light series, 50 mm high, 5 Pin M12 Male A-Coded (S16) - view 2
  • Bar light series, 50 mm high, 5 Pin M12 Male A-Coded (S16) - view 3
  • Bar light series, 50 mm high, 5 Pin M12 Male A-Coded (S16) - view 4

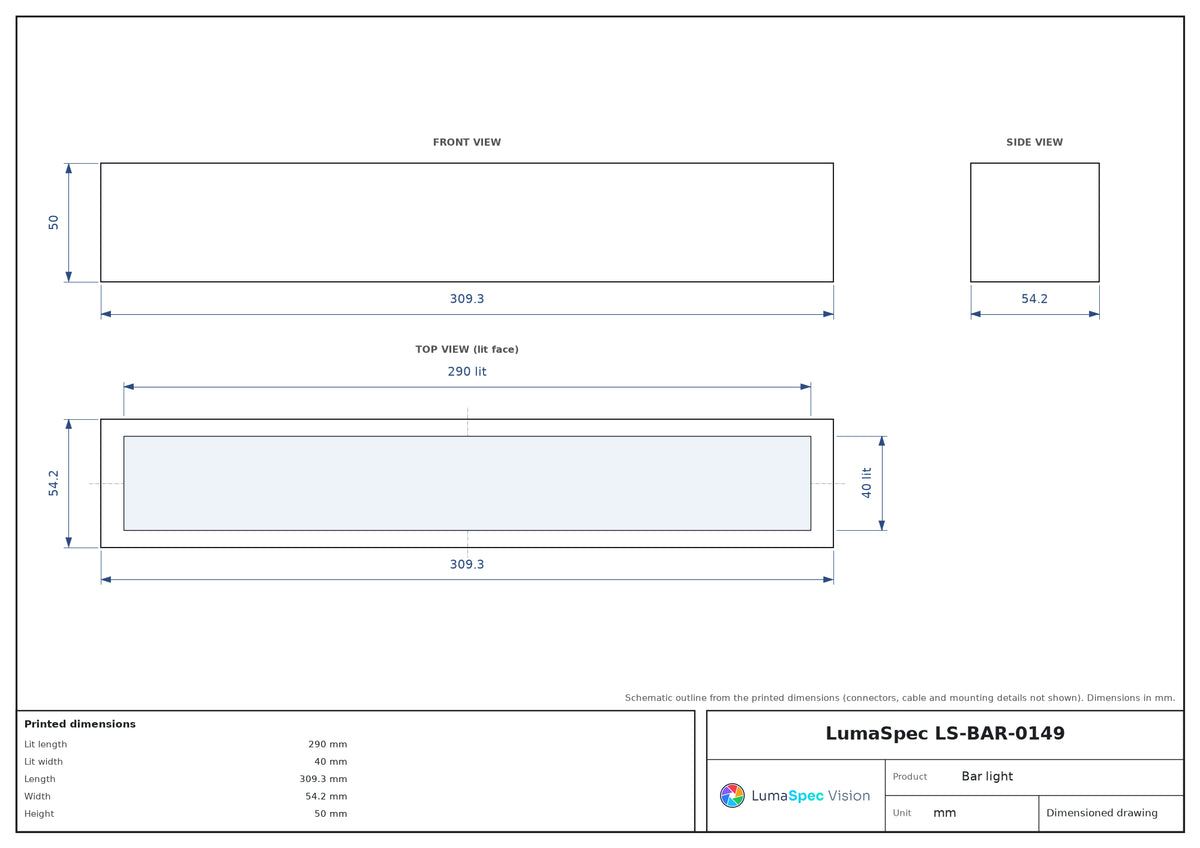

  • LS-BAR-0149 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Bar lights

Bar light, 290 mm lit length, IP65 (LS-BAR-0149)

Model LS-BAR-0149

  • ColourWhite, Infrared, Red
  • Voltage24 VDC
  • TypeStandard
  • Wavelength850 nm
from $759.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 1-2 weeks

Choose a configuration 15 available

Colour
Lens / beam angle
Polarized

Configuration LS-BAR-0149-01 $759.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Bar light, 290 mm lit length, IP65 (LS-BAR-0149)LS-BAR-0149

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 290 x 40 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle, polarized below (15 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0149
Connection at lightConnectorized
Driver includedIncluded
Driver locationInternal
Intensity controlAnalog Voltage
Operating modesOvercurrent Strobe, Overcurrent Strobe - Dimmable
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)3.5

Interfaces and I/O

Connector5 Pin M12 Male A-Coded

Light

DiffusedNot Diffused

Environment and compliance

Operating temperature-10 to 40 °C
IP ratingIP65
Storage temperature-20 to 70 °C
ComplianceCE, IEC 62471, RoHS

Electrical

Voltage24 VDC
Strobe trigger inputNPN Trigger, PNP Trigger
Max overcurrent strobe current2 mA
Max overcurrent strobe input power23 W
Maximum current (overcurrent strobe) (mA)2
Maximum input power overcurrent strobe (W)23
Maximum overcurrent strobe duration (ms)5
Maximum overcurrent strobe duty cycle (%)3.5
Maximum overcurrent strobe frequency (Hz)4000
Maximum overcurrent strobe latency (µs)6
Minimum overcurrent strobe duration (µs)1000
NPN trigger current (mA)10
NPN trigger voltage (V)< 1 VDC
PNP trigger current (mA)13.4
PNP trigger voltage (V)3.3-24 VDC

Mechanical

Lit length (mm)290
Lit width (mm)40
Length (mm)309.3
Width (mm)54.2
Height (mm)50
HousingAluminum
MountingT-Slot Channels

Other models in the Bar light series, 50 mm high, 5 Pin M12 Male A-Coded (S16) series

See all 4 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-0151 290 x 40 mm $759.00 Quote Built to order: ships in about 1-2 weeks View
LS-BAR-0150 578 x 40 mm $1,029.00 Quote Built to order: ships in about 1-2 weeks View
LS-BAR-0152 578 x 40 mm $1,029.00 Quote Built to order: ships in about 1-2 weeks View
