Diffused machine vision bar lights

Size a diffused linear illumination layout

Compare bar lights classified as diffused for machine vision. Select emitting length, mounting position and colour around the object field and the reflections the camera must see.

All Bar lights

427 models Configure a systemAll lights
Diffused machine vision bar lights

25-48 of 427 models

Products

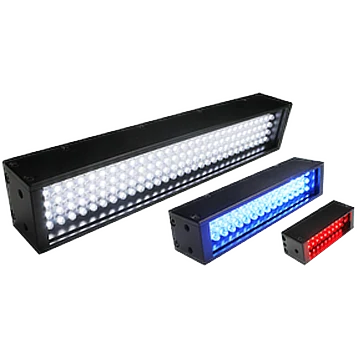

  • Bar light, 642 x 28 mm, White

    LS-BAR-1295

    • Colour White
    • Emitting area 630 mm × 22 mm
    • Size 642 mm × 28 mm × 27 mm

    $739.00

    Ships in 2-3 weeks

  • Bar light, 642 x 18 mm, White

    LS-BAR-1293

    • Colour White
    • Emitting area 630 mm × 12 mm
    • Size 642 mm × 18 mm × 27 mm

    $739.00Quote

    Ships in 2-3 weeks

  • Bar light, 642 x 28 mm, Red

    LS-BAR-1294

    • Colour Red
    • Emitting area 630 mm × 22 mm
    • Size 642 mm × 28 mm × 27 mm

    $669.00

    Ships in 2-3 weeks

  • Bar light, 642 x 38 mm, Blue

    LS-BAR-1296

    • Colour Blue
    • Emitting area 630 mm × 32 mm
    • Size 642 mm × 38 mm × 27 mm

    $669.00

    Ships in 2-3 weeks

  • Bar light, 597 x 38 mm, White

    LS-BAR-1292

    • Colour White
    • Emitting area 585 mm × 32 mm
    • Size 597 mm × 38 mm × 27 mm

    $699.00

    Ships in 2-3 weeks

  • Bar light, 597 x 28 mm, White

    LS-BAR-1291

    • Colour White
    • Emitting area 585 mm × 22 mm
    • Size 597 mm × 28 mm × 27 mm

    $699.00

    Ships in 2-3 weeks

  • Bar light, 597 x 18 mm, White

    LS-BAR-1290

    • Colour White
    • Emitting area 585 mm × 12 mm
    • Size 597 mm × 18 mm × 27 mm

    $699.00

    Ships in 2-3 weeks

  • Bar light, 552 x 38 mm, White

    LS-BAR-1289

    • Colour White
    • Emitting area 540 mm × 32 mm
    • Size 552 mm × 38 mm × 27 mm

    $659.00

    Ships in 2-3 weeks

  • Bar light, 552 x 28 mm, White

    LS-BAR-1288

    • Colour White
    • Emitting area 540 mm × 22 mm
    • Size 552 mm × 28 mm × 27 mm

    $659.00

    Ships in 2-3 weeks

  • Bar light, 552 x 18 mm, White

    LS-BAR-1287

    • Colour White
    • Emitting area 540 mm × 12 mm
    • Size 552 mm × 18 mm × 27 mm

    $659.00

    Ships in 2-3 weeks

  • Bar light, 507 x 38 mm, White

    LS-BAR-1286

    • Colour White
    • Emitting area 495 mm × 32 mm
    • Size 507 mm × 38 mm × 27 mm

    $619.00

    Ships in 2-3 weeks

  • Bar light, 507 x 28 mm, White

    LS-BAR-1285

    • Colour White
    • Emitting area 495 mm × 22 mm
    • Size 507 mm × 28 mm × 27 mm

    $619.00

    Ships in 2-3 weeks

  • Bar light, 507 x 18 mm, White

    LS-BAR-1284

    • Colour White
    • Emitting area 495 mm × 12 mm
    • Size 507 mm × 18 mm × 27 mm

    $619.00

    Ships in 2-3 weeks

  • Bar light, 462 x 38 mm, White

    LS-BAR-1283

    • Colour White
    • Emitting area 450 mm × 32 mm
    • Size 462 mm × 38 mm × 27 mm

    $579.00

    Ships in 2-3 weeks

  • Bar light, 462 x 28 mm, White

    LS-BAR-1282

    • Colour White
    • Emitting area 450 mm × 22 mm
    • Size 462 mm × 28 mm × 27 mm

    $579.00

    Ships in 2-3 weeks

  • Bar light, 462 x 18 mm, White

    LS-BAR-1281

    • Colour White
    • Emitting area 450 mm × 12 mm
    • Size 462 mm × 18 mm × 27 mm

    $579.00

    Ships in 2-3 weeks

  • Bar light, 417 x 38 mm, White

    LS-BAR-1280

    • Colour White
    • Emitting area 405 mm × 32 mm
    • Size 417 mm × 38 mm × 27 mm

    $569.00

    Ships in 2-3 weeks

  • Bar light, 417 x 28 mm, White

    LS-BAR-1279

    • Colour White
    • Emitting area 405 mm × 22 mm
    • Size 417 mm × 28 mm × 27 mm

    $569.00

    Ships in 2-3 weeks

  • Bar light, 417 x 18 mm, White

    LS-BAR-1278

    • Colour White
    • Emitting area 405 mm × 12 mm
    • Size 417 mm × 18 mm × 27 mm

    $569.00

    Ships in 2-3 weeks

  • Bar light, 372 x 38 mm, White

    LS-BAR-1277

    • Colour White
    • Emitting area 360 mm × 32 mm
    • Size 372 mm × 38 mm × 27 mm

    $439.00

    Ships in 2-3 weeks

  • Bar light, 372 x 28 mm, White

    LS-BAR-1276

    • Colour White
    • Emitting area 360 mm × 22 mm
    • Size 372 mm × 28 mm × 27 mm

    $439.00

    Ships in 2-3 weeks

  • Bar light, 372 x 18 mm, White

    LS-BAR-1275

    • Colour White
    • Emitting area 360 mm × 12 mm
    • Size 372 mm × 18 mm × 27 mm

    $439.00

    Ships in 2-3 weeks

  • Bar light, 327 x 38 mm, White

    LS-BAR-1274

    • Colour White
    • Emitting area 315 mm × 32 mm
    • Size 327 mm × 38 mm × 27 mm

    $399.00

    Ships in 2-3 weeks

  • Bar light, 327 x 18 mm, White

    LS-BAR-1272

    • Colour White
    • Emitting area 315 mm × 12 mm
    • Size 327 mm × 18 mm × 27 mm

    $399.00

    Ships in 2-3 weeks

Compare
LS-BAR-1295Bar light, 642 x 28 mm, White White630 mm × 22 mm642 mm × 28 mm × 27 mm20.2 W-$739.00 Ships in 2-3 weeks
LS-BAR-1293Bar light, 642 x 18 mm, White White630 mm × 12 mm642 mm × 18 mm × 27 mm10.1 W-$739.00Quote Ships in 2-3 weeks
LS-BAR-1294Bar light, 642 x 28 mm, Red Red630 mm × 22 mm642 mm × 28 mm × 27 mm25.2 W625 nm$669.00 Ships in 2-3 weeks
LS-BAR-1296Bar light, 642 x 38 mm, Blue Blue630 mm × 32 mm642 mm × 38 mm × 27 mm34.3 W465 nm$669.00 Ships in 2-3 weeks
LS-BAR-1292Bar light, 597 x 38 mm, White White585 mm × 32 mm597 mm × 38 mm × 27 mm31.8 W-$699.00 Ships in 2-3 weeks
LS-BAR-1291Bar light, 597 x 28 mm, White White585 mm × 22 mm597 mm × 28 mm × 27 mm18.7 W-$699.00 Ships in 2-3 weeks
LS-BAR-1290Bar light, 597 x 18 mm, White White585 mm × 12 mm597 mm × 18 mm × 27 mm9.4 W-$699.00 Ships in 2-3 weeks
LS-BAR-1289Bar light, 552 x 38 mm, White White540 mm × 32 mm552 mm × 38 mm × 27 mm25.9 W-$659.00 Ships in 2-3 weeks
LS-BAR-1288Bar light, 552 x 28 mm, White White540 mm × 22 mm552 mm × 28 mm × 27 mm17.3 W-$659.00 Ships in 2-3 weeks
LS-BAR-1287Bar light, 552 x 18 mm, White White540 mm × 12 mm552 mm × 18 mm × 27 mm8.6 W-$659.00 Ships in 2-3 weeks
LS-BAR-1286Bar light, 507 x 38 mm, White White495 mm × 32 mm507 mm × 38 mm × 27 mm23.8 W-$619.00 Ships in 2-3 weeks
LS-BAR-1285Bar light, 507 x 28 mm, White White495 mm × 22 mm507 mm × 28 mm × 27 mm15.8 W-$619.00 Ships in 2-3 weeks
LS-BAR-1284Bar light, 507 x 18 mm, White White495 mm × 12 mm507 mm × 18 mm × 27 mm7.9 W-$619.00 Ships in 2-3 weeks
LS-BAR-1283Bar light, 462 x 38 mm, White White450 mm × 32 mm462 mm × 38 mm × 27 mm24.5 W-$579.00 Ships in 2-3 weeks
LS-BAR-1282Bar light, 462 x 28 mm, White White450 mm × 22 mm462 mm × 28 mm × 27 mm14.4 W-$579.00 Ships in 2-3 weeks
LS-BAR-1281Bar light, 462 x 18 mm, White White450 mm × 12 mm462 mm × 18 mm × 27 mm7.2 W-$579.00 Ships in 2-3 weeks
LS-BAR-1280Bar light, 417 x 38 mm, White White405 mm × 32 mm417 mm × 38 mm × 27 mm22 W-$569.00 Ships in 2-3 weeks
LS-BAR-1279Bar light, 417 x 28 mm, White White405 mm × 22 mm417 mm × 28 mm × 27 mm13 W-$569.00 Ships in 2-3 weeks
LS-BAR-1278Bar light, 417 x 18 mm, White White405 mm × 12 mm417 mm × 18 mm × 27 mm6.5 W-$569.00 Ships in 2-3 weeks
LS-BAR-1277Bar light, 372 x 38 mm, White White360 mm × 32 mm372 mm × 38 mm × 27 mm17.6 W-$439.00 Ships in 2-3 weeks
LS-BAR-1276Bar light, 372 x 28 mm, White White360 mm × 22 mm372 mm × 28 mm × 27 mm11.5 W-$439.00 Ships in 2-3 weeks
LS-BAR-1275Bar light, 372 x 18 mm, White White360 mm × 12 mm372 mm × 18 mm × 27 mm5.8 W-$439.00 Ships in 2-3 weeks
LS-BAR-1274Bar light, 327 x 38 mm, White White315 mm × 32 mm327 mm × 38 mm × 27 mm15.1 W-$399.00 Ships in 2-3 weeks
LS-BAR-1272Bar light, 327 x 18 mm, White White315 mm × 12 mm327 mm × 18 mm × 27 mm5 W-$399.00 Ships in 2-3 weeks

Size a diffused linear illumination layout

A bar light provides a linear source that can be positioned around the inspection. Diffusion is one way to change the highlights and shadows produced by that source. Use the actual emitting dimensions and intended distance when planning one bar or a multi-light arrangement.

  • Compare emitting length and width with the region of interest. Check whether a printed dimension describes the illuminated area or only the outside housing.
  • Allow adjustment of position and angle to evaluate the complete field. A bar length alone does not establish a uniform illuminated area at every distance.
  • Check the model supply, power, connector and control mode, and size the controller for the actual number of lights and their combined electrical load.
