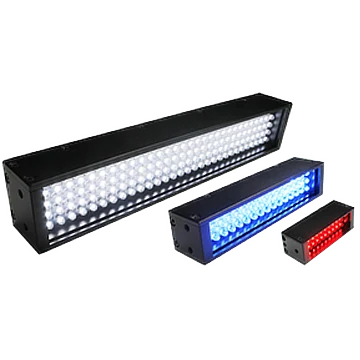

Bar Light, 417 x 28 mm, White (LS-BAR-1279)
  • Bar Light, 417 x 28 mm, White (LS-BAR-1279)

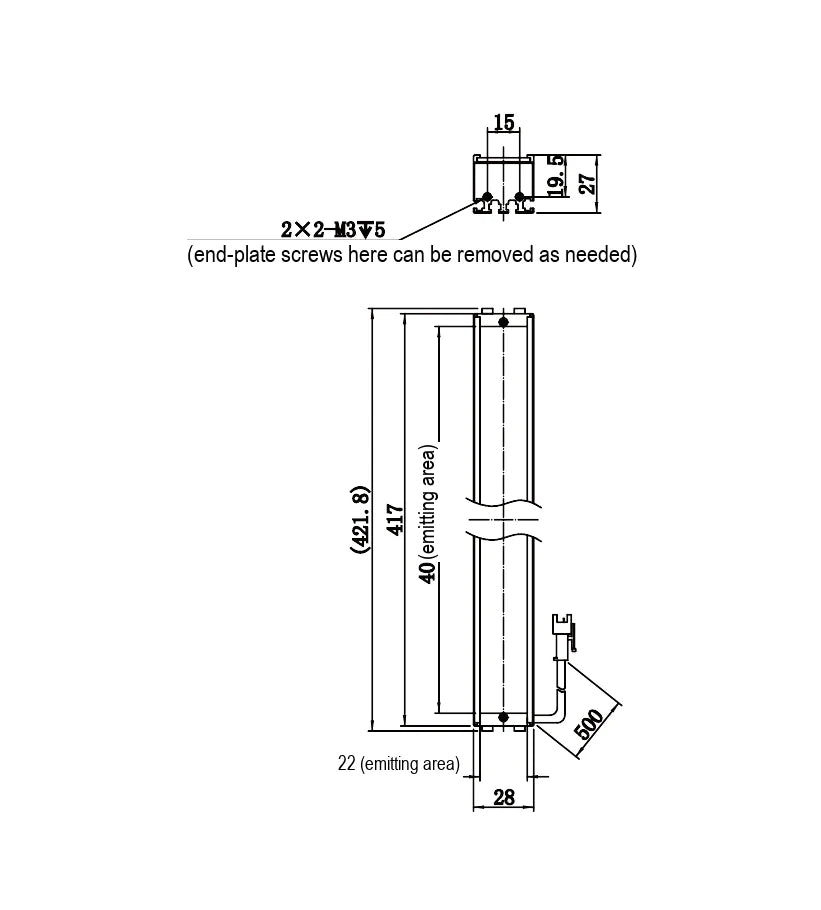

  • LS-BAR-1279 dimensions (mm)

Bar lights

Bar Light, 417 x 28 mm, White (LS-BAR-1279)

Model LS-BAR-1279

  • ColourWhite
  • Emitting area405 mm × 22 mm
  • Size417 mm × 28 mm × 27 mm
  • Power13 W
$569.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bar Light, 417 x 28 mm, White (LS-BAR-1279)LS-BAR-1279

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bar Light, 417 x 28 mm, White. One-piece aluminum alloy body for good heat dissipation Multiple mounting options: both ends and back

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1279

Interfaces and I/O

Connector typeSMR-03V-B
Cable length500 mm

Light

ColorWhite
Color temperature6000~7000K
LED rows4
Emitting area length405 mm × 22 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power13 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

Dimension417 mm × 28 mm × 27 mm
Shipping weight (estimated)0.66 kg

Other models in the Classic bar lights (LS-BAR-S100) series

See all 49 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-1263 192 x 38 mm, White $279.00 5 in stock View
LS-BAR-1262 192 x 28 mm, White $279.00 3 in stock View
LS-BAR-1270 282 x 28 mm, White $309.00 4 in stock View
LS-BAR-1269 282 x 18 mm, White $309.00 5 in stock View
LS-BAR-1271 282 x 38 mm, White $309.00 3 in stock View
LS-BAR-1273 327 x 28 mm, White $349.00 2 in stock View
LS-BAR-1272 327 x 18 mm, White $349.00 2 in stock View
LS-BAR-1274 327 x 38 mm, White $349.00 4 in stock View
LS-BAR-1275 372 x 18 mm, White $389.00 4 in stock View
LS-BAR-1276 372 x 28 mm, White $389.00 3 in stock View
LS-BAR-1277 372 x 38 mm, White $389.00 3 in stock View
LS-BAR-1278 417 x 18 mm, White $569.00 2 in stock View
LS-BAR-1280 417 x 38 mm, White $569.00 4 in stock View
LS-BAR-1281 462 x 18 mm, White $579.00 2 in stock View
LS-BAR-1282 462 x 28 mm, White $579.00 3 in stock View
LS-BAR-1283 462 x 38 mm, White $579.00 4 in stock View
LS-BAR-1284 507 x 18 mm, White $579.00 3 in stock View
LS-BAR-1285 507 x 28 mm, White $579.00 4 in stock View
LS-BAR-1286 507 x 38 mm, White $579.00 4 in stock View
LS-BAR-1287 552 x 18 mm, White $579.00 5 in stock View
LS-BAR-1288 552 x 28 mm, White $579.00 4 in stock View
LS-BAR-1289 552 x 38 mm, White $579.00 2 in stock View
LS-BAR-1290 597 x 18 mm, White $639.00 3 in stock View
LS-BAR-1291 597 x 28 mm, White $639.00 5 in stock View
