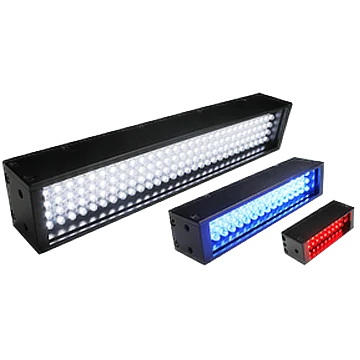

Bar Light, 642 x 28 mm, Red (LS-BAR-1294)
  • Bar Light, 642 x 28 mm, Red (LS-BAR-1294)

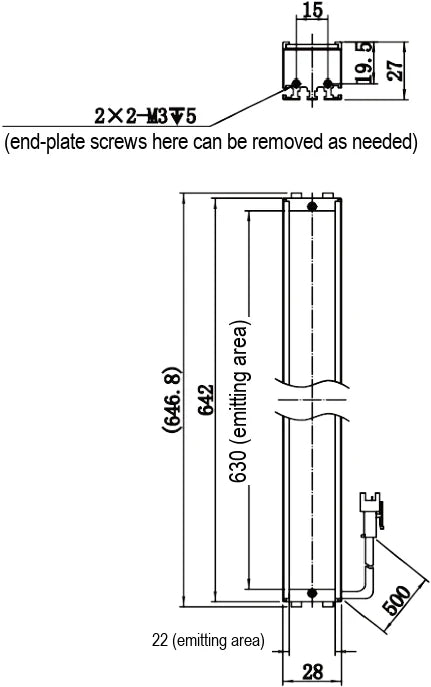

  • LS-BAR-1294 dimensions (mm)

Bar lights

Bar Light, 642 x 28 mm, Red (LS-BAR-1294)

Model LS-BAR-1294

  • ColourRed
  • Emitting area630 mm × 22 mm
  • Size642 mm × 28 mm × 27 mm
  • Power25.2 W
  • Wavelength625 nm
$669.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bar Light, 642 x 28 mm, Red (LS-BAR-1294)LS-BAR-1294

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bar Light, 642 x 28 mm, Red. One-piece aluminum alloy body for good heat dissipation Multiple mounting options: both ends and back

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1294

Interfaces and I/O

Connector typeSMR-03V-B
Cable length500 mm

Light

ColorRed
Wavelength625 nm
LED rows4
Emitting area length630 mm × 22 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power25.2 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

Dimension642 mm × 28 mm × 27 mm
Shipping weight (estimated)0.66 kg
