Diffused machine vision bar lights

Size a diffused linear illumination layout

Compare bar lights classified as diffused for machine vision. Select emitting length, mounting position and colour around the object field and the reflections the camera must see.

All Bar lights

427 models Configure a systemAll lights
Diffused machine vision bar lights

361-384 of 427 models

Products

Compare
LS-BAR-1148Bar light, 333 x 40 mm, Red Red321 mm × 31.6 mm333 mm × 40 mm × 30 mm24 VDC20.9 W625 nm$409.00 Ships in 2-3 weeks
LS-BAR-1149Bar light, 333 x 40 mm, White White321 mm × 31.6 mm333 mm × 40 mm × 30 mm24 VDC36.6 W-$409.00 Ships in 2-3 weeks
LS-BAR-1142Bar light, 333 x 30 mm, IR 940 nm Infrared321 mm × 21.6 mm333 mm × 30 mm × 30 mm24 VDC19.7 W940 nm$409.00 Ships in 2-3 weeks
LS-BAR-1141Bar light, 333 x 30 mm, IR 850 nm Infrared321 mm × 21.6 mm333 mm × 30 mm × 30 mm24 VDC19.7 W850 nm$409.00 Ships in 2-3 weeks
LS-BAR-1140Bar light, 333 x 30 mm, Blue Blue321 mm × 21.6 mm333 mm × 30 mm × 30 mm24 VDC17.8 W465 nm$409.00 Ships in 2-3 weeks
LS-BAR-1143Bar light, 333 x 30 mm, Red Red321 mm × 21.6 mm333 mm × 30 mm × 30 mm24 VDC13.9 W625 nm$409.00 Ships in 2-3 weeks
LS-BAR-1144Bar light, 333 x 30 mm, White White321 mm × 21.6 mm333 mm × 30 mm × 30 mm24 VDC23.5 W-$409.00 Ships in 2-3 weeks
LS-BAR-1137Bar light, 288 x 40 mm, IR 940 nm Infrared276 mm × 31.6 mm288 mm × 40 mm × 30 mm24 VDC25.7 W940 nm$369.00 Ships in 2-3 weeks
LS-BAR-1136Bar light, 288 x 40 mm, IR 850 nm Infrared276 mm × 31.6 mm288 mm × 40 mm × 30 mm24 VDC25.4 W850 nm$369.00 Ships in 2-3 weeks
LS-BAR-1135Bar light, 288 x 40 mm, Blue Blue276 mm × 31.6 mm288 mm × 40 mm × 30 mm24 VDC23 W465 nm$369.00 Ships in 2-3 weeks
LS-BAR-1138Bar light, 288 x 40 mm, Red Red276 mm × 31.6 mm288 mm × 40 mm × 30 mm24 VDC18 W625 nm$369.00 Ships in 2-3 weeks
LS-BAR-1139Bar light, 288 x 40 mm, White White276 mm × 31.6 mm288 mm × 40 mm × 30 mm24 VDC31.3 W-$369.00 Ships in 2-3 weeks
LS-BAR-1132Bar light, 288 x 30 mm, IR 940 nm Infrared276 mm × 21.6 mm288 mm × 30 mm × 30 mm24 VDC17.3 W940 nm$369.00 Ships in 2-3 weeks
LS-BAR-1131Bar light, 288 x 30 mm, IR 850 nm Infrared276 mm × 21.6 mm288 mm × 30 mm × 30 mm24 VDC16.8 W850 nm$369.00 Ships in 2-3 weeks
LS-BAR-1130Bar light, 288 x 30 mm, Blue Blue276 mm × 21.6 mm288 mm × 30 mm × 30 mm24 VDC15.4 W465 nm$369.00 Ships in 2-3 weeks
LS-BAR-1133Bar light, 288 x 30 mm, Red Red276 mm × 21.6 mm288 mm × 30 mm × 30 mm24 VDC12 W625 nm$369.00 Ships in 2-3 weeks
LS-BAR-1134Bar light, 288 x 30 mm, White White276 mm × 21.6 mm288 mm × 30 mm × 30 mm24 VDC20.1 W-$369.00 Ships in 2-3 weeks
LS-BAR-1127Bar light, 243 x 40 mm, IR 940 nm Infrared231 mm × 31.6 mm243 mm × 40 mm × 30 mm24 VDC21.6 W940 nm$329.00 Ships in 2-3 weeks
LS-BAR-1126Bar light, 243 x 40 mm, IR 850 nm Infrared231 mm × 31.6 mm243 mm × 40 mm × 30 mm24 VDC21.1 W850 nm$329.00 Ships in 2-3 weeks
LS-BAR-1125Bar light, 243 x 40 mm, Blue Blue231 mm × 31.6 mm243 mm × 40 mm × 30 mm24 VDC19 W465 nm$329.00 Ships in 2-3 weeks

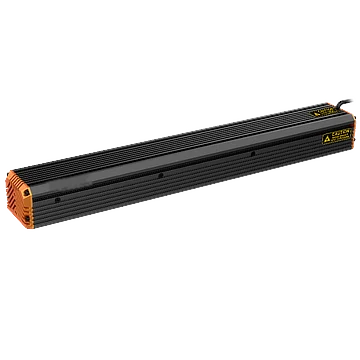

LS-BAR-1128Bar light, 243 x 40 mm, Red Red231 mm × 31.6 mm243 mm × 40 mm × 30 mm24 VDC14.9 W625 nm$329.00 Ships in 2-3 weeks
LS-BAR-1129Bar light, 243 x 40 mm, White White231 mm × 31.6 mm243 mm × 40 mm × 30 mm24 VDC26.2 W-$329.00 Ships in 2-3 weeks
LS-BAR-1122Bar light, 243 x 30 mm, IR 940 nm Infrared231 mm × 21.6 mm243 mm × 30 mm × 30 mm24 VDC14.4 W940 nm$329.00 Ships in 2-3 weeks
LS-BAR-1121Bar light, 243 x 30 mm, IR 850 nm Infrared231 mm × 21.6 mm243 mm × 30 mm × 30 mm24 VDC14.2 W850 nm$329.00 Ships in 2-3 weeks

Size a diffused linear illumination layout

A bar light provides a linear source that can be positioned around the inspection. Diffusion is one way to change the highlights and shadows produced by that source. Use the actual emitting dimensions and intended distance when planning one bar or a multi-light arrangement.

  • Compare emitting length and width with the region of interest. Check whether a printed dimension describes the illuminated area or only the outside housing.
  • Allow adjustment of position and angle to evaluate the complete field. A bar length alone does not establish a uniform illuminated area at every distance.
  • Check the model supply, power, connector and control mode, and size the controller for the actual number of lights and their combined electrical load.
