Bar Light, 50 x 30 mm, White (LS-BAR-1084)
  • Bar Light, 50 x 30 mm, White (LS-BAR-1084)

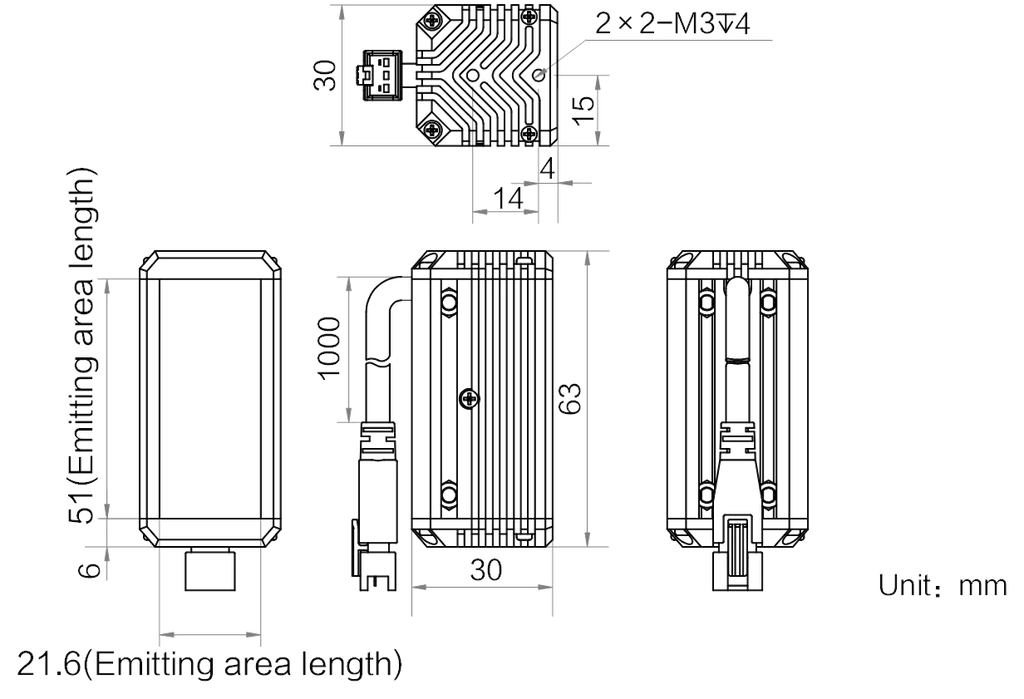

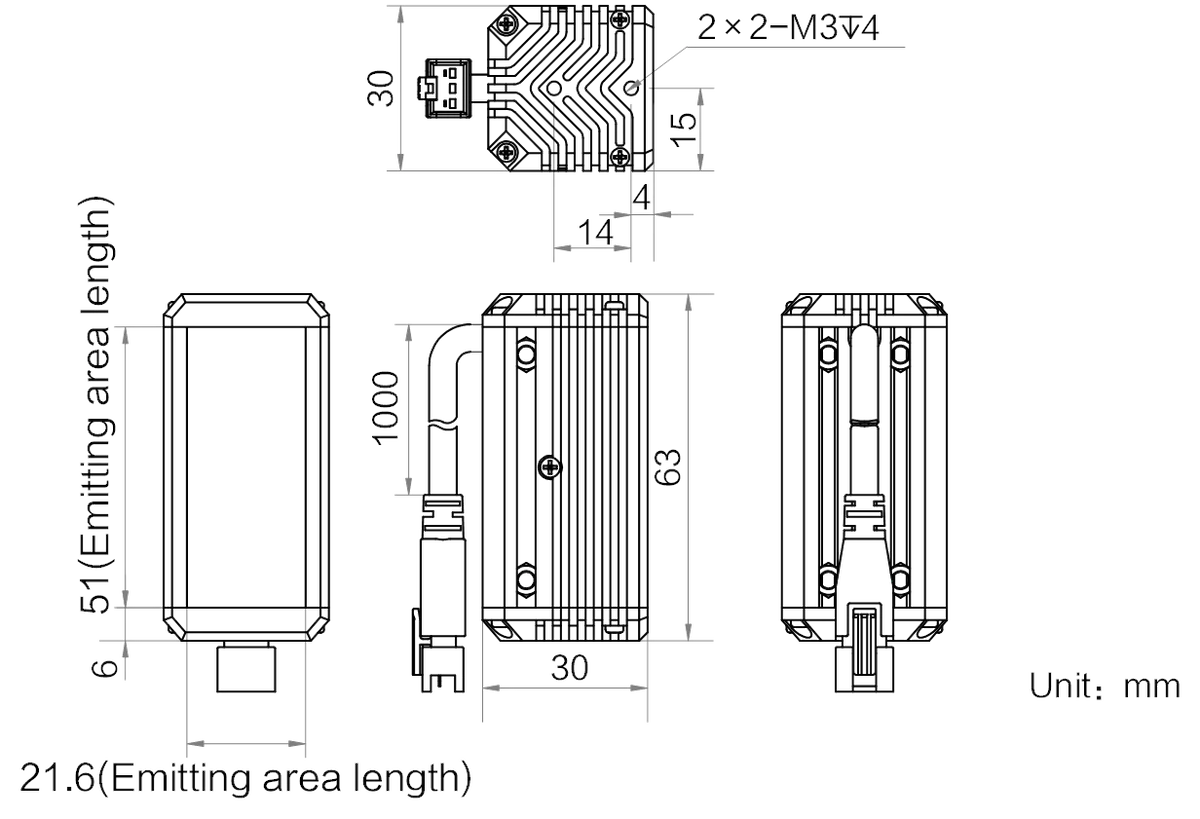

  • LS-BAR-1084 dimensions (mm)

Bar lights

Bar Light, 50 x 30 mm, White (LS-BAR-1084)

Model LS-BAR-1084

  • ColourWhite
  • Emitting area51 mm × 21.6 mm
  • Size63 mm × 30 mm × 30 mm
  • Voltage24 VDC
  • Power3.4 W
$159.00

Ships in 2-3 weeks

0.27 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bar Light, 50 x 30 mm, White (LS-BAR-1084)LS-BAR-1084

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bar Light, 50 x 30 mm, White. The irradiation direction and angle can be adjusted freely. Support multi-side installation.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1084
Safety classNo danger
Cooling modeNatural cooling

Optics

Best working distance30 mm to 500 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorWhite
Center illuminance/irradiance≥ 6500 lux@100 mm
Color temperatureW: 6000K to 7500K
Emitting area dimension51 mm × 21.6 mm
LED rows4
Diffuse plate includedPMMA

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power3.4 W
Input voltage24 VDC

Mechanical

Dimension63 mm × 30 mm × 30 mm
Weight0.12 kg
Shipping weight (estimated)0.27 kg
