Representative photo of this series

Bar lights

240 x 50 mm Bar light (LS-BAR-0440)

Model LS-BAR-0440

Voltage24V
TypeDiffused
LED typeSMD
Uniform light plateyes

$269.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LED bar light with a uniform light (diffuser) plate, luminous sizes from 60 x 20 to 480 x 30 mm; suppresses reflections on the object surface so damage is clearly imaged.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0440
Working life	white: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality service	one year product warranty, technical support

Light

LED type	SMD
Luminous size (mm)	240x50
Uniformity diffuser	√
Wavelength red	620-630 nm
Wavelength green	520-530 nm
Wavelength blue	460-470 nm
Colour temperature white	6000-7500 K

Environment and compliance

Operating environment (indoor)	temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Voltage (V)	24V
Power(W) Red	11.0
Power(W) Blue/White/Green	14

Mechanical

Uniform light plate	yes

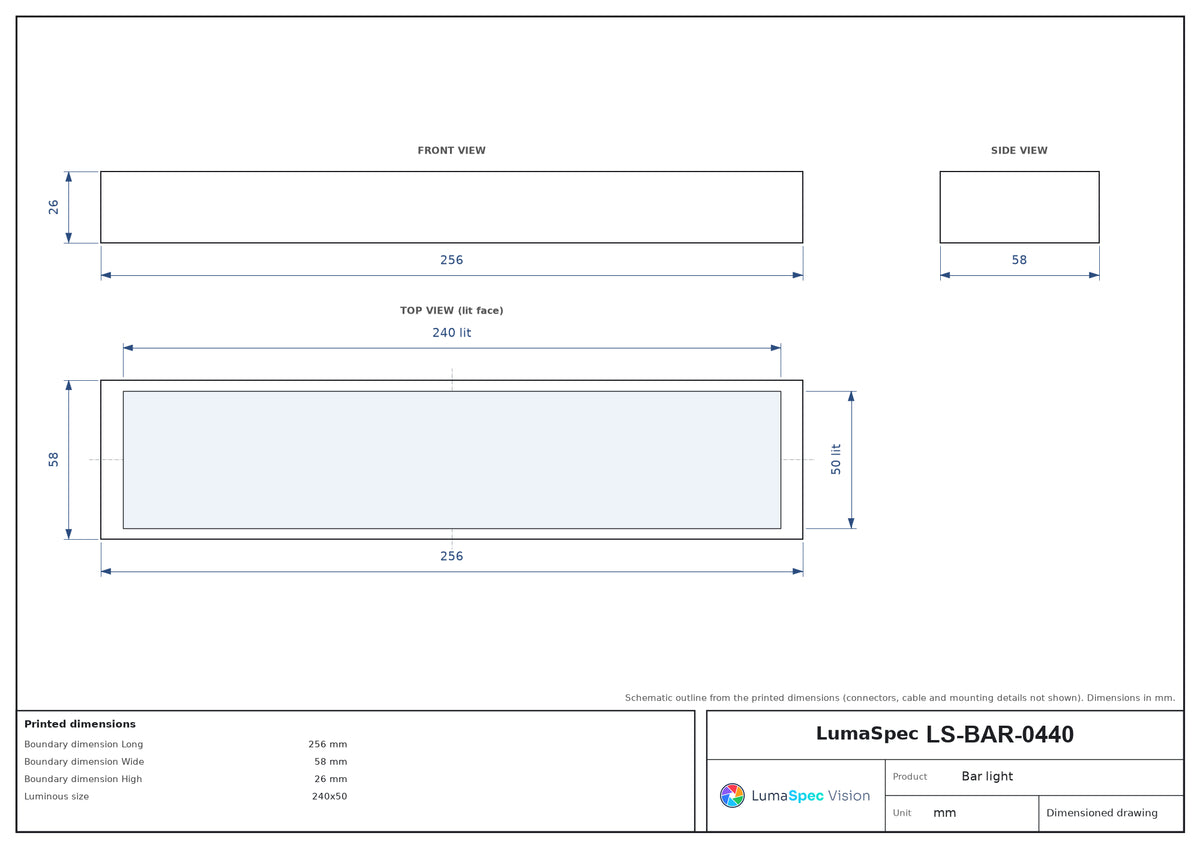

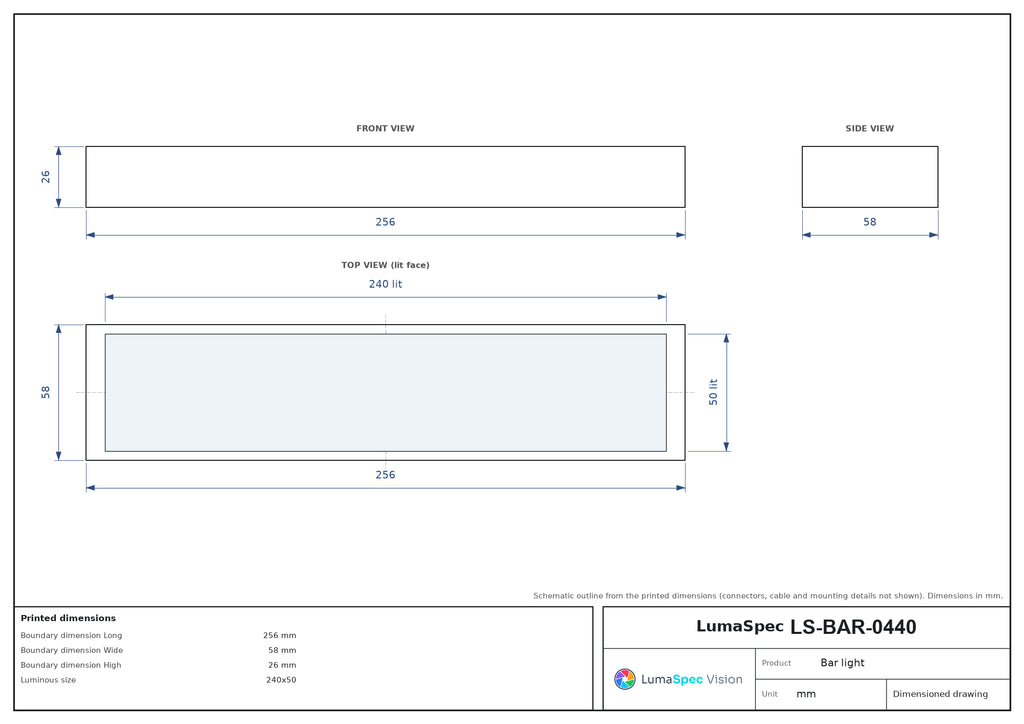

Boundary dimension(mm) Long	256
Boundary dimension(mm) Wide	58
Boundary dimension(mm) High	26
Shipping weight	0.50 kg

Downloads

Datasheet (PDF)LS-BAR-0440 · 1000 KB

Features

Uniform light plate (diffuser)
SMD LEDs, aluminium heat-sink housing
20 mm and 30 mm luminous widths, lengths 60-480 mm
Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
Long: 76mm, Wide: 26mm, High: 26mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:50000 hours for red light and 30000 hours for white light.
Suitable for dimension measurement, defect detection, contour identification and transparent object impurity detection, etc.

Applications

PCB substrate inspection, plastic container inspection
Microscope illumination, general appearance inspection
Chip and glass substrate scratch and stain detection
LCD correction, font label detection
Aluminium plate (pattern processing) inspection
