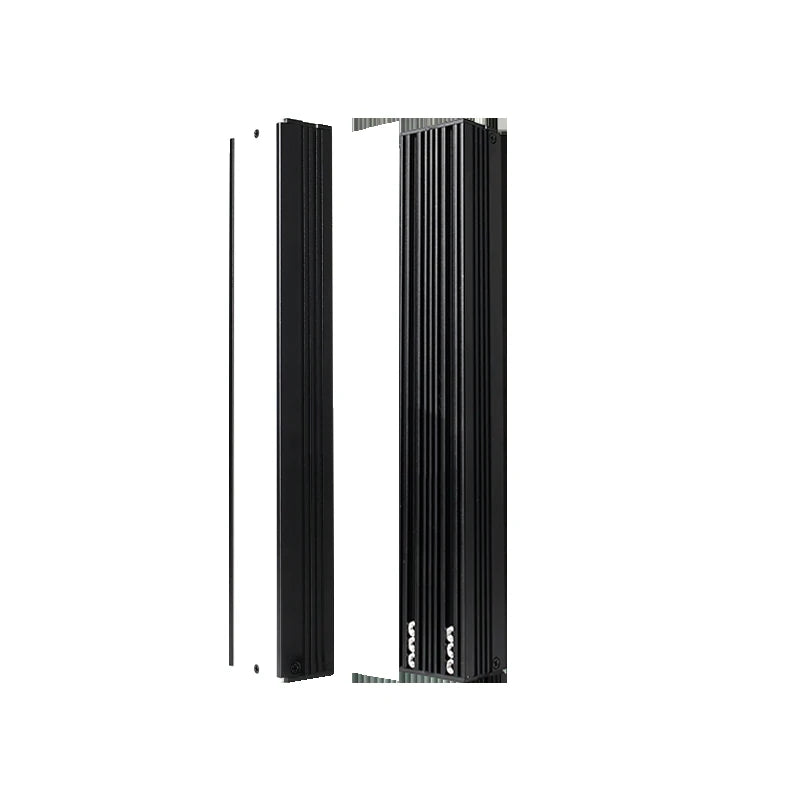

Representative photo of this series
Bar lights
180 x 50 mm Bar light (LS-BAR-0435)
Model LS-BAR-0435
- Voltage24V
- TypeDiffused
- LED typeSMD
- Uniform light plateyes
$279.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LED bar light with a uniform light (diffuser) plate, luminous sizes from 60 x 20 to 480 x 30 mm; suppresses reflections on the object surface so damage is clearly imaged.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0435 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 180x50 |
| Uniformity diffuser | √ |
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24V |
| Power(W) Red | 8.5 |
| Power(W) Blue/White/Green | 10.5 |
Mechanical
| Uniform light plate | yes |
|---|---|

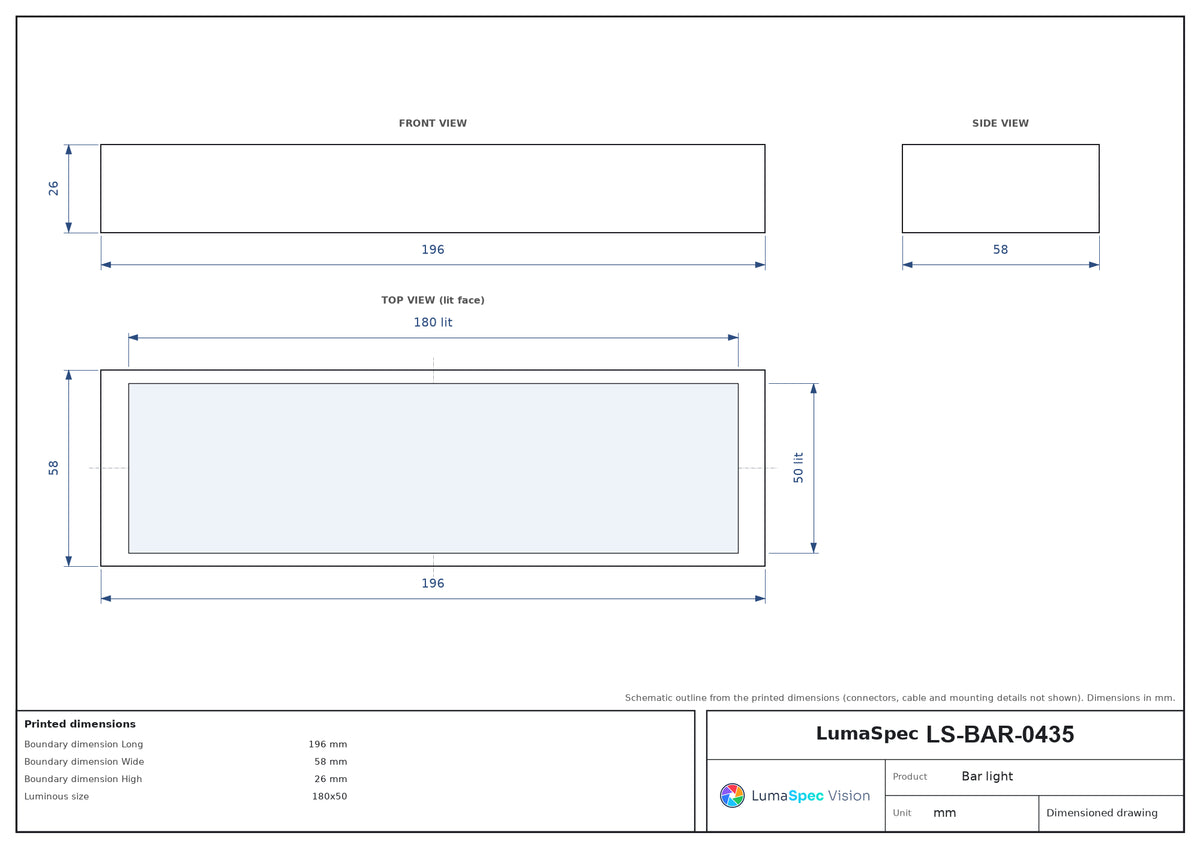

| Boundary dimension(mm) Long | 196 |
| Boundary dimension(mm) Wide | 58 |
| Boundary dimension(mm) High | 26 |
| Shipping weight | 0.50 kg |
Other models in the Bar light (LS-BAR-S67) series
See all 32 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0426 | 90 x 20 mm | $209.00 | Ships in 2-3 weeks | View |
| LS-BAR-0427 | 90 x 30 mm | $209.00 | Ships in 2-3 weeks | View |
| LS-BAR-0428 | 120 x 20 mm | $229.00 | Ships in 2-3 weeks | View |
| LS-BAR-0429 | 120 x 30 mm | $229.00 | Ships in 2-3 weeks | View |
| LS-BAR-0430 | 120 x 50 mm | $229.00 | Ships in 2-3 weeks | View |
| LS-BAR-0431 | 150 x 20 mm | $259.00 | Ships in 2-3 weeks | View |
| LS-BAR-0432 | 150 x 30 mm | $259.00 | Ships in 2-3 weeks | View |
| LS-BAR-0438 | 240 x 20 mm | $269.00 | Ships in 2-3 weeks | View |
| LS-BAR-0439 | 240 x 30 mm | $269.00 | Ships in 2-3 weeks | View |
| LS-BAR-0440 | 240 x 50 mm | $269.00 | Ships in 2-3 weeks | View |
| LS-BAR-0433 | 180 x 20 mm | $279.00 | Ships in 2-3 weeks | View |
| LS-BAR-0434 | 180 x 30 mm | $279.00 | Ships in 2-3 weeks | View |
| LS-BAR-0436 | 200 x 20 mm | $319.00 | Ships in 2-3 weeks | View |
| LS-BAR-0437 | 200 x 30 mm | $319.00 | Ships in 2-3 weeks | View |
| LS-BAR-0441 | 300 x 20 mm | $329.00 | Ships in 2-3 weeks | View |
| LS-BAR-0442 | 300 x 30 mm | $329.00 | Ships in 2-3 weeks | View |
| LS-BAR-0443 | 300 x 50 mm | $329.00 | Ships in 2-3 weeks | View |
| LS-BAR-0444 | 360 x 20 mm | $379.00 | Ships in 2-3 weeks | View |
| LS-BAR-0445 | 360 x 30 mm | $379.00 | Ships in 2-3 weeks | View |
| LS-BAR-0446 | 360 x 50 mm | $379.00 | Ships in 2-3 weeks | View |
| LS-BAR-0450 | 480 x 20 mm | $519.00 | Ships in 2-3 weeks | View |
| LS-BAR-0451 | 480 x 30 mm | $519.00 | Ships in 2-3 weeks | View |
| LS-BAR-0452 | 480 x 50 mm | $519.00 | Ships in 2-3 weeks | View |
| LS-BAR-0447 | 420 x 20 mm | $569.00 | Ships in 2-3 weeks | View |
