Representative photo of this series
Bar lights
180 x 30 mm Bar light (LS-BAR-0434)
Model LS-BAR-0434
- ColourRed, Blue, Green, White
- Voltage24 V
- TypeStandard
- LED typeSMD
$279.00
Ships in 2-3 weeks
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LED bar light with a uniform light (diffuser) plate, luminous sizes from 60 x 20 to 480 x 30 mm; suppresses reflections on the object surface so damage is clearly imaged.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0434 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |

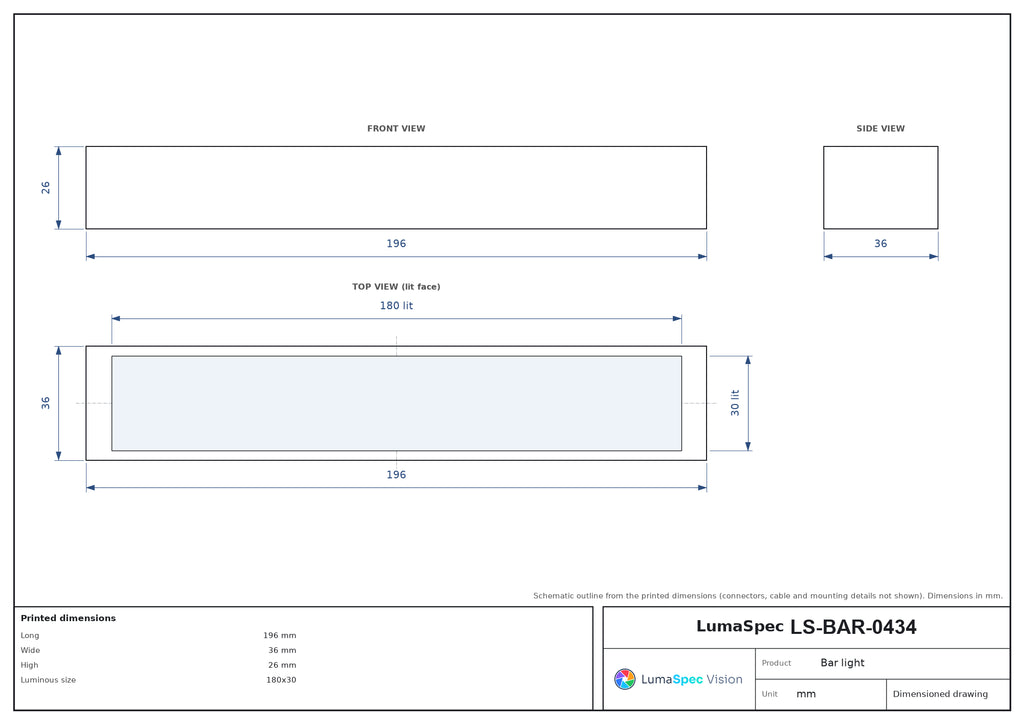

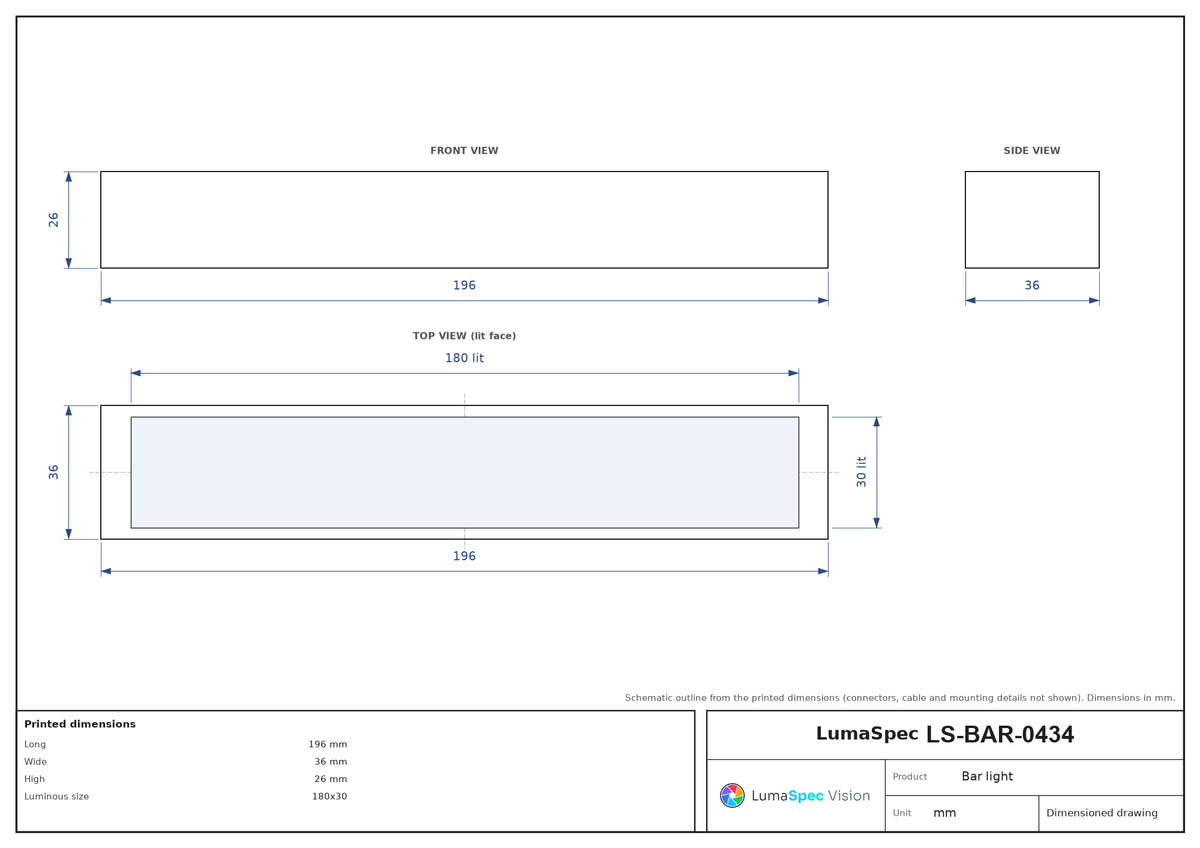

| Long (mm) | 196 |
| Wide (mm) | 36 |
| High (mm) | 26 |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 180x30 |
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power red (W) | 6 |
| Power blue/green/white (W) | 6.6 |
Mechanical
| Uniform light plate | yes |
|---|---|
| Shipping weight | 0.40 kg |
