Bar light
  • Bar light

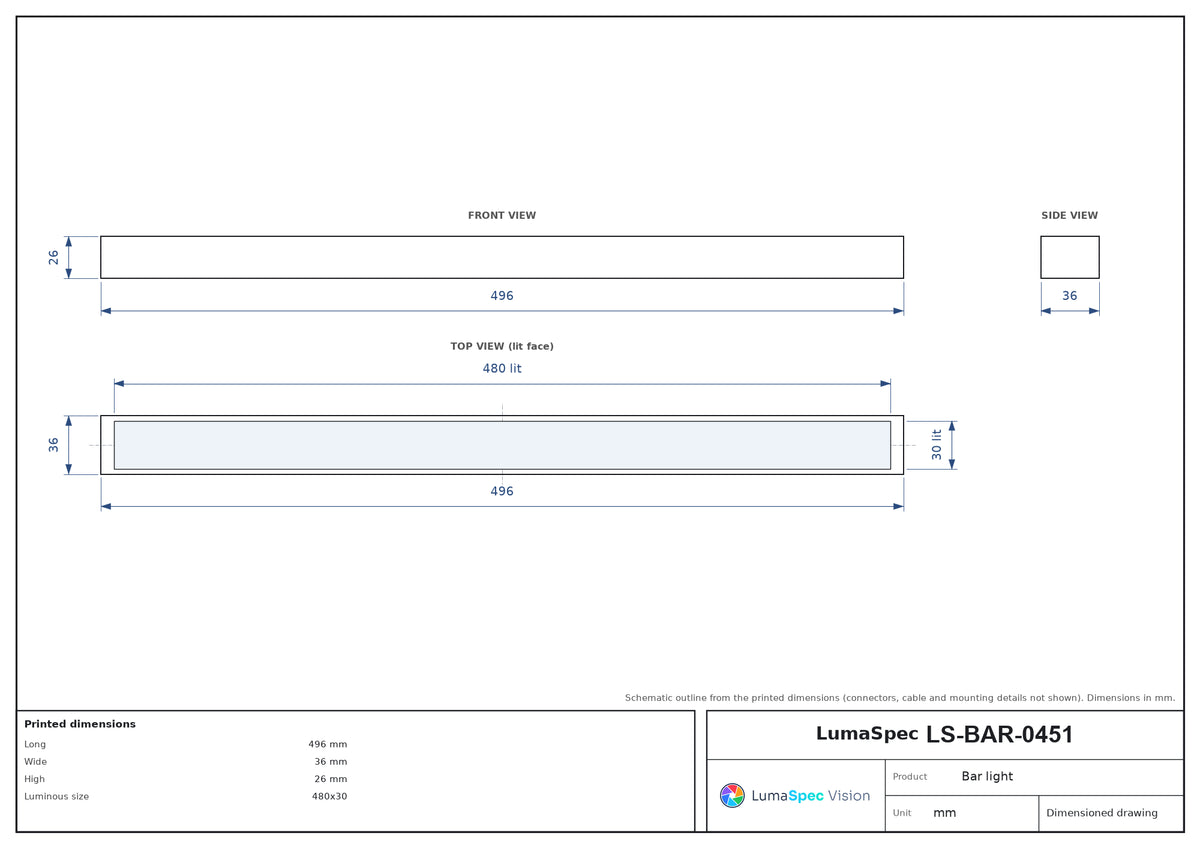

  • LS-2BRD48030 dimensions (mm)

Representative photo of this series

Bar lights

480 x 30 mm Bar light (LS-BAR-0451)

Model LS-BAR-0451

  • ColourRed, Blue, Green, White
  • Voltage24 V
  • TypeStandard
  • LED typeSMD
$519.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.75 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

480 x 30 mm Bar light (LS-BAR-0451)LS-BAR-0451

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LED bar light with a uniform light (diffuser) plate, luminous sizes from 60 x 20 to 480 x 30 mm; suppresses reflections on the object surface so damage is clearly imaged.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0451
Working lifewhite: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality serviceone year product warranty, technical support
Long (mm)496
Wide (mm)36
High (mm)26

Light

LED typeSMD
Luminous size (mm)480x30
Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue460-470 nm
Colour temperature white6000-7500 K

Environment and compliance

Operating environment (indoor)temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power toleranceactual product power within ±10% of the table is the normal range
Voltage (V)24
Power red (W)17.6
Power blue/green/white (W)17.6

Mechanical

Uniform light plateyes
Shipping weight0.75 kg
