Bar lights
600 x 50 mm Bar light (LS-BAR-0454)
Model LS-BAR-0454
- Voltage24V
- TypeDiffused
- Connector3-pin flat
- LED typeSMD
$629.00
In stock - ships the same business day (2 available, order by 2 PM ET)
1.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LED bar light with a uniform light (diffuser) plate, luminous sizes from 60 x 20 to 480 x 30 mm; suppresses reflections on the object surface so damage is clearly imaged.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0454 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |
| Category | Bar light |
| Terminal Plug | Flat head 3PIN2 pin |
| Cooling | Naturalair cooling |
| Electrical insulation capacity | DC500V Insulation resistance>20 megohms |
| Pressure Resistance Requirements | AC1000V; 10mA/5S |
| Flammability Rating | IEC60707 |
| Value-added Services | One year free technical support |
Interfaces and I/O
| Cable length | 0.5m |
|---|---|
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. |
| Mating cable (optional) | 1.Light source extension cable 2.Connector adapter cable |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 600x50 |
| Uniformity diffuser | √ |
| Color | red/white/blue/green |
| Wavelength | red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm |
| Color temperature | red: —; white: 5500-6500K; blue: —; green: — |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|---|
| Operating Temperature and Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) |
| Lifespan | Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24V |
| Power(W) Red | 28 |
| Power(W) Blue/White/Green | 35 |

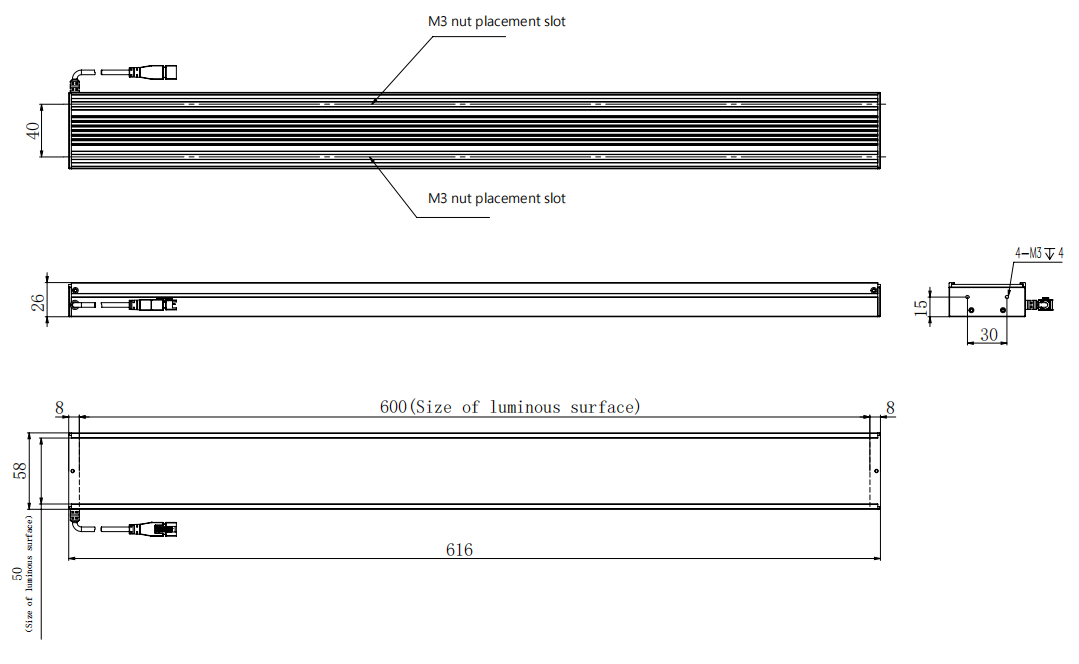

Mechanical
| Uniform light plate | yes |
|---|---|
| Boundary dimension(mm) Long | 616 |
| Boundary dimension(mm) Wide | 58 |
| Boundary dimension(mm) High | 26 |
| Shell material | Aluminum Alloy (Oxidative blackened surface) |
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
| Shipping weight | 1.25 kg |
