Bar lights

60 x 20 mm Bar light (LS-BAR-0423)

Model LS-BAR-0423

ColourRed, Blue, Green, White
Voltage24 V
TypeDiffused
Connector3-pin flat

$169.00

Ships in 2-3 weeks

0.25 kg shipping weight

Color Red Blue Green White

Volume pricing, Net 30 terms or a formal quote for purchasing?

LED bar light with a uniform light (diffuser) plate, luminous sizes from 60 x 20 to 480 x 30 mm; suppresses reflections on the object surface so damage is clearly imaged.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0423
Category	Bar light
Terminal Plug	Flat head 3PIN2 pin
Cooling	Naturalair cooling
Electrical insulation capacity	DC500V Insulation resistance>20 megohms
Pressure Resistance Requirements	AC1000V; 10mA/5S
Flammability Rating	IEC60707
Value-added Services	One year free technical support

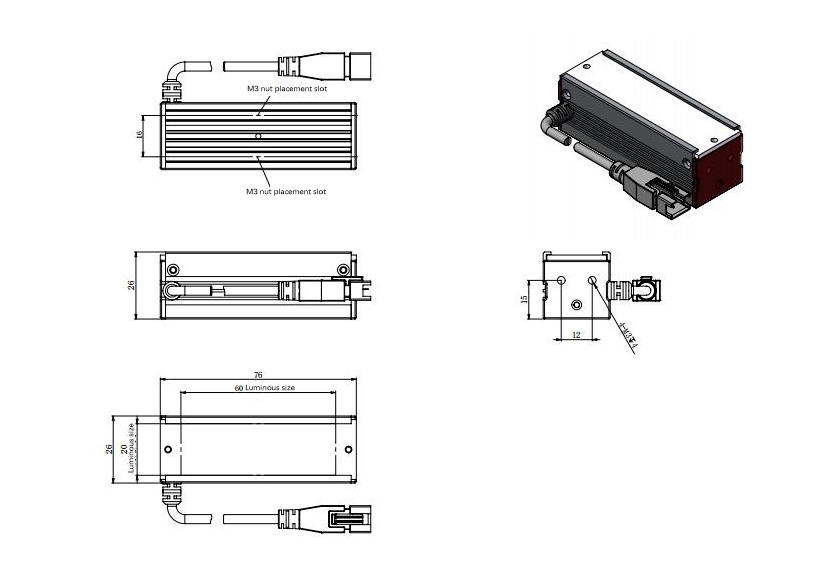

Long (mm)	76
Wide (mm)	26
High (mm)	26

Interfaces and I/O

Cable length	0.5m
Connector Definition	1:positive(+)red; 2:leave empty; 3:negative(-)black.
Mating cable (optional)	1.Light source extension cable 2.Connector adapter cable

Light

LED type	SMD
Luminous size (mm)	60x20
Uniformity diffuser	√
Color	red/white/blue/green
Wavelength	red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm
Color temperature	red: —; white: 5500-6500K; blue: —; green: —
Brightness Controller (optional)	1.Analog Controller 2.Digital Controller

Environment and compliance

Operating Temperature and Humidity	Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing)
Lifespan	Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Power(W) Red	1.8
Power(W) Blue/White/Green	1.8
Voltage (V)	24

Mechanical

Uniform light plate	yes
Shell material	Aluminum Alloy (Oxidative blackened surface)
Shell Hardness Parameters	Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g
Shipping weight	0.25 kg

Downloads

Datasheet (PDF)LS-BAR-0423 · 999 KB

Features

Uniform light plate (diffuser)
SMD LEDs, aluminium heat-sink housing
20 mm and 30 mm luminous widths, lengths 60-480 mm
Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
Long: 76mm, Wide: 26mm, High: 26mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:50000 hours for red light and 30000 hours for white light.
Suitable for dimension measurement, defect detection, contour identification and transparent object impurity detection, etc.

Applications

PCB substrate inspection, plastic container inspection
Microscope illumination, general appearance inspection
Chip and glass substrate scratch and stain detection
LCD correction, font label detection
Aluminium plate (pattern processing) inspection
