Lenses

Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

961-984 of 1422 models

Products

Compare
LS-TCL-16490.169x, WD 338 mm, M58-mount telecentric lens 0.169xM58Full frame338±5 mmF6Ø 258 mm$7,229.00Quote Ships in 2-3 weeks
LS-TCL-16230.171x, WD 338 mm telecentric lens 0.171xF-mount, M42, M58Full frame338±5 mmF10.3Ø 258 mm$6,839.00Quote Ships in 2-3 weeks
LS-TCL-14680.128x, WD 338 mm, 2", M58-mount telecentric lens 0.128xM582"338±5 mmF7.8Ø 258 mm$7,229.00Quote Ships in 2-3 weeks
LS-TCL-14330.064x, WD 338 mm, 1", C-mount telecentric lens 0.064xC-mount1"338±5 mmF6.5Ø 258 mm$7,219.00Quote Ships in 2-3 weeks
LS-TCL-15890.035x, WD 338 mm, 1/1.8", C-mount telecentric lens 0.035xC-mount1/1.8"338±5 mmF4.6Ø 258 mm$7,219.00Quote Ships in 2-3 weeks
LS-TCL-18430.112x, WD 338 mm, 1.75", M58-mount telecentric lens 0.112xM581.75"338±5 mmF6.8Ø 258 mm$7,229.00Quote Ships in 2-3 weeks
LS-TCL-15580.229x, WD 338 mm, M72-mount telecentric lens 0.229xM72Large format338±5 mmF8.7Ø 258 mm$7,259.00Quote Ships in 2-3 weeks
LS-TCL-18050.262x, WD 338 mm, M72-mount telecentric lens, length Per outline drawing 0.262xM72Large format338±5 mmF8.8Ø 258 mm$6,719.00Quote Ships in 2-3 weeks
LS-TCL-18040.262x, WD 338 mm, M72-mount telecentric lens, length 619.4 mm 0.262xM72Large format338±5 mmF8.8Ø 258 mm$6,879.00Quote Ships in 2-3 weeks
LS-TCL-18030.262x, WD 338 mm, M72-mount telecentric lens, length 626.9 mm 0.262xM72Large format338±5 mmF8.8Ø 258 mm$7,259.00Quote Ships in 2-3 weeks
LS-TCL-15380.031x, WD 338 mm, 1/2", C-mount telecentric lens 0.031xC-mount1/2"338±5 mmF4.2Ø 258 mm$7,219.00Quote Ships in 2-3 weeks
LS-TCL-17850.028x, WD 338 mm, 1/2.5", C-mount telecentric lens 0.028xC-mount1/2.5"338±5 mmF13.1Ø 258 mm$7,219.00Quote Ships in 2-3 weeks
LS-TCL-15030.071x, WD 338 mm, 1.1", C-mount telecentric lens 0.071xC-mount1.1"338±5 mmF6.2Ø 258 mm$7,219.00Quote Ships in 2-3 weeks
LS-TCL-19060.048x, WD 410 mm, 2/3", C-mount telecentric lens 0.048xC-mount2/3"410±6 mmF4.9Ø 240 mm$6,699.00Quote Ships in 2-3 weeks
LS-TCL-17430.098x, WD 410 mm, 4/3", M58-mount telecentric lens 0.098xM584/3"410±6 mmF4.6Ø 240 mm$6,709.00Quote Ships in 2-3 weeks
LS-TCL-17130.1x, WD 410 mm, 4/3", M58-mount telecentric lens 0.1xM584/3"410±6 mmF7.5Ø 240 mm$6,709.00Quote Ships in 2-3 weeks
LS-TCL-16780.163x, WD 410 mm, M58-mount telecentric lens 0.163xM58APS-H410±6 mmF7.5Ø 240 mm$6,709.00Quote Ships in 2-3 weeks
LS-TCL-16480.182x, WD 410 mm, M58-mount telecentric lens 0.182xM58Full frame410±6 mmF6Ø 240 mm$6,719.00Quote Ships in 2-3 weeks
LS-TCL-16220.183x, WD 410 mm telecentric lens 0.183xF-mount, M42, M58Full frame410±6 mmF10.3Ø 240 mm$6,449.00Quote Ships in 2-3 weeks
LS-TCL-14670.138x, WD 410 mm, 2", M58-mount telecentric lens 0.138xM582"410±6 mmF7.8Ø 240 mm$6,709.00Quote Ships in 2-3 weeks
LS-TCL-14320.069x, WD 410 mm, 1", C-mount telecentric lens 0.069xC-mount1"410±6 mmF6.5Ø 240 mm$6,699.00Quote Ships in 2-3 weeks

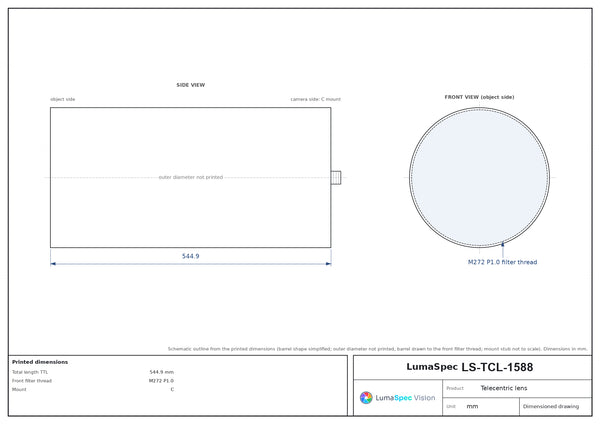

LS-TCL-15880.038x, WD 410 mm, 1/1.8", C-mount telecentric lens 0.038xC-mount1/1.8"410±6 mmF4.6Ø 240 mm$6,699.00Quote Ships in 2-3 weeks
LS-TCL-18420.121x, WD 410 mm, 1.75", M58-mount telecentric lens 0.121xM581.75"410±6 mmF6.8Ø 240 mm$6,709.00Quote Ships in 2-3 weeks

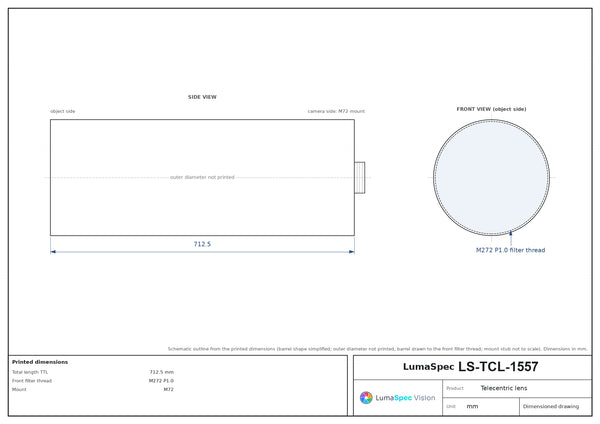

LS-TCL-15570.246x, WD 410 mm, M72-mount telecentric lens, WD 410±6 0.246xM72Large format410±6 mmF8.7Ø 240 mm$6,729.00Quote Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.

Configure a system · Browse all Telecentric lenses
