Lenses

Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

913-936 of 1422 models

Products

Compare

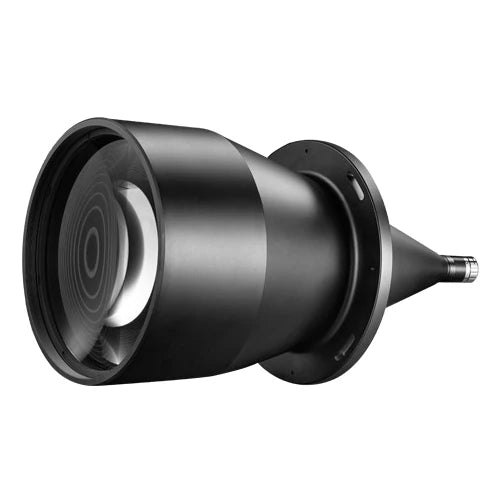

LS-TCL-2451Bi-telecentric lens for 1" cameras, 0.15x, WD 251 mm, C-mount 0.149xxC-mount1"251±3 mmØ 111 mm-$3,419.00 Ships in 2-3 weeks
LS-TCL-2449Bi-telecentric lens for 1" cameras, 0.179x, WD 254 mm, C-mount 0.179xC-mount1"254±3 mm71.7x53.8 mm-$2,989.00 Ships in 2-3 weeks
LS-TCL-2446Bi-telecentric lens for 1" cameras, 0.208x, WD 229 mm, C-mount 0.208xC-mount1"229±2 mmØ 80 mm-$2,669.00 Ships in 2-3 weeks
LS-TCL-2445Bi-telecentric lens for 1" cameras, 0.231x, WD 178 mm, C-mount 0.231xC-mount1"178±2 mmØ 72 mm-$2,469.00 Ships in 2-3 weeks
LS-TCL-2444Bi-telecentric lens for 1" cameras, 0.26x, WD 159 mm, C-mount 0.259xxC-mount1"159±2 mmØ 64 mm-$2,279.00 Ships in 2-3 weeks
LS-TCL-2443Bi-telecentric lens for 1" cameras, 0.26x, WD 187 mm, C-mount 0.260xC-mount1"187±2 mmØ 64 mm-$2,279.00 Ships in 2-3 weeks
LS-TCL-2442Bi-telecentric lens for 1" cameras, 0.298x, WD 138 mm, C-mount 0.298xC-mount1"138±2 mmØ 56 mm-$2,099.00 Ships in 2-3 weeks
LS-TCL-2440Bi-telecentric lens for 1" cameras, 0.347x, WD 128 mm, C-mount 0.347xC-mount1"128±2 mmØ 48 mm-$1,899.00 Ships in 2-3 weeks
LS-TCL-2437Bi-telecentric lens for 1" cameras, 0.396x, WD 119 mm, C-mount 0.396xC-mount1"119±2 mm32.4x24.3 mm-$1,769.00 Ships in 2-3 weeks
LS-TCL-2433Bi-telecentric lens for 1" cameras, 0.641x, WD 72 mm, C-mount 0.642xxC-mount1"72±2 mmØ 26 mm-$1,399.00 Ships in 2-3 weeks
LS-TCL-2435Bi-telecentric lens for 1" cameras, 0.461x, WD 111 mm, C-mount 0.461xC-mount1"111±2 mmØ 36 mm-$1,629.00 Ships in 2-3 weeks
LS-TCL-2431Bi-telecentric lens for 1" cameras, 1x, WD 24 mm, C-mount 1.000xC-mount1"24±1 mmØ 16.6 mm-$1,189.00 Ships in 2-3 weeks
LS-TCL-0480Bi-telecentric lens for 23x23 mm sensor, 0.12x, WD 410 mm, F/M58-mount 0.12xF-mount, M58APS-C410 mm-F8$5,039.00Quote Ships in 2-3 weeks
LS-TCL-0479Bi-telecentric lens for 23x23 mm sensor, 0.17x, WD 320 mm, F/M58-mount 0.17xF-mount, M58APS-C320 mm-F8$3,899.00 Ships in 2-3 weeks
LS-TCL-0478Bi-telecentric lens for 23x23 mm sensor, 0.19x, WD 300 mm, F/M58-mount 0.19xF-mount, M58APS-C300 mm-F7$3,609.00 Ships in 2-3 weeks
LS-TCL-0477Bi-telecentric lens for 23x23 mm sensor, 0.21x, WD 285 mm, F/M58-mount 0.21xF-mount, M58APS-C285 mm-F8$3,209.00 Ships in 2-3 weeks
LS-TCL-0468Bi-telecentric lens for 23x23 mm sensor, 1.75x, WD 110 mm, F/M58-mount 1.75xF-mount, M581.5"110 mm-F11$2,139.00 Ships in 2-3 weeks
LS-TCL-0474Bi-telecentric lens for 23x23 mm sensor, 0.26x, WD 250 mm, F/M58-mount 0.26xF-mount, M58APS-C250 mm-F8$2,839.00 Ships in 2-3 weeks
LS-TCL-0475Bi-telecentric lens for 23x23 mm sensor, 0.31x, WD 250 mm, F/M58-mount 0.31xF-mount, M58APS-C250 mm-F12$2,659.00 Ships in 2-3 weeks
LS-TCL-0473Bi-telecentric lens for 23x23 mm sensor, 0.36x, WD 230 mm, F/M58-mount 0.36xF-mount, M58APS-C230 mm-F18$2,449.00 Ships in 2-3 weeks
LS-TCL-0471Bi-telecentric lens for 23x23 mm sensor, 0.45x, WD 158 mm, F/M58-mount 0.45xF-mount, M58APS-C158 mm-F7$2,189.00 Ships in 2-3 weeks
LS-TCL-0476Bi-telecentric lens for 23x23 mm sensor, 0.55x, WD 250 mm, F/M58-mount 0.55xF-mount, M581.5"250 mm-F8$2,009.00 Ships in 2-3 weeks
LS-TCL-0470Bi-telecentric lens for 23x23 mm sensor, 0.63x, WD 130 mm, F/M58-mount 0.63xF-mount, M581.5"130 mm-F7.5$1,899.00 Ships in 2-3 weeks
LS-TCL-0469Bi-telecentric lens for 23x23 mm sensor, 0.68x, WD 120 mm, F/M58-mount 0.68xF-mount, M58APS-C120 mm-F12$1,839.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.

Configure a system · Browse all Telecentric lenses
