Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

865-888 of 1422 models

Products

Compare
LS-TCL-2551Bi-telecentric lens for 1/2" cameras, 0.054x, WD 301 mm, C-mount 0.054xC-mount1/2"301±4 mm119.2x85.5 mm-$4,309.00 Ships in 2-3 weeks
LS-TCL-2550Bi-telecentric lens for 1/2" cameras, 0.059x, WD 288 mm, C-mount 0.059xC-mount1/2"288±4 mm109.1x78.3 mm-$4,049.00 Ships in 2-3 weeks
LS-TCL-2548Bi-telecentric lens for 1/2" cameras, 0.072x, WD 251 mm, C-mount 0.072xC-mount1/2"251±3 mm89.4x64.1 mm-$3,419.00 Ships in 2-3 weeks
LS-TCL-2547Bi-telecentric lens for 1/2" cameras, 0.086x, WD 254 mm, C-mount 0.086xC-mount1/2"254±3 mm74.8x53.7 mm-$2,979.00 Ships in 2-3 weeks
LS-TCL-2545Bi-telecentric lens for 1/2" cameras, 0.1x, WD 229 mm, C-mount 0.100xC-mount1/2"229±2 mm64.4x46.2 mm-$2,659.00 Ships in 2-3 weeks
LS-TCL-2544Bi-telecentric lens for 1/2" cameras, 0.112x, WD 178 mm, C-mount 0.111xC-mount1/2"178±2 mm58.0x41.6 mm-$2,459.00 Ships in 2-3 weeks
LS-TCL-2543Bi-telecentric lens for 1/2" cameras, 0.125x, WD 159 mm, C-mount 0.125xC-mount1/2"159±2 mm51.5x36.9 mm-$2,279.00 Ships in 2-3 weeks
LS-TCL-2542Bi-telecentric lens for 1/2" cameras, 0.126x, WD 187 mm, C-mount 0.126xC-mount1/2"187±2 mm51.5x37.0 mm-$2,269.00 Ships in 2-3 weeks
LS-TCL-2541Bi-telecentric lens for 1/2" cameras, 0.144x, WD 138 mm, C-mount 0.144xC-mount1/2"138±2 mm45.0x32.3 mm-$2,089.00 Ships in 2-3 weeks
LS-TCL-2539Bi-telecentric lens for 1/2" cameras, 0.167x, WD 128 mm, C-mount 0.167xC-mount1/2"128±2 mm38.6x27.7 mm-$1,899.00 Ships in 2-3 weeks
LS-TCL-2538Bi-telecentric lens for 1/2" cameras, 0.192x, WD 119 mm, C-mount 0.192xC-mount1/2"119±2 mm33.9x24.3 mm-$1,769.00 Ships in 2-3 weeks
LS-TCL-2537Bi-telecentric lens for 1/2" cameras, 0.222x, WD 111 mm, C-mount 0.222xC-mount1/2"111±2 mm29.0x20.8 mm-$1,629.00 Ships in 2-3 weeks
LS-TCL-2536Bi-telecentric lens for 1/2" cameras, 0.309x, WD 72 mm, C-mount 0.309xC-mount1/2"72±2 mm20.9x15.0 mm-$1,399.00 Ships in 2-3 weeks
LS-TCL-2519Bi-telecentric lens for 1/1.8" cameras, 0.038x, WD 410 mm, C-mount 0.038xC-mount1/1.8"410±5 mm-188.4x143.2 mm$6,589.00Quote Ships in 2-3 weeks
LS-TCL-2517Bi-telecentric lens for 1/1.8" cameras, 0.053x, WD 318 mm, C-mount 0.053xC-mount1/1.8"318±4 mm135.0x102.6 mm-$4,819.00 Ships in 2-3 weeks
LS-TCL-2516Bi-telecentric lens for 1/1.8" cameras, 0.061x, WD 301 mm, C-mount 0.061xC-mount1/1.8"301±4 mm-119.3x90.7 mm$4,649.00 Ships in 2-3 weeks
LS-TCL-2515Bi-telecentric lens for 1/1.8" cameras, 0.066x, WD 288 mm, C-mount 0.066xC-mount1/1.8"288±4 mm108.4x82.4 mm-$4,049.00 Ships in 2-3 weeks

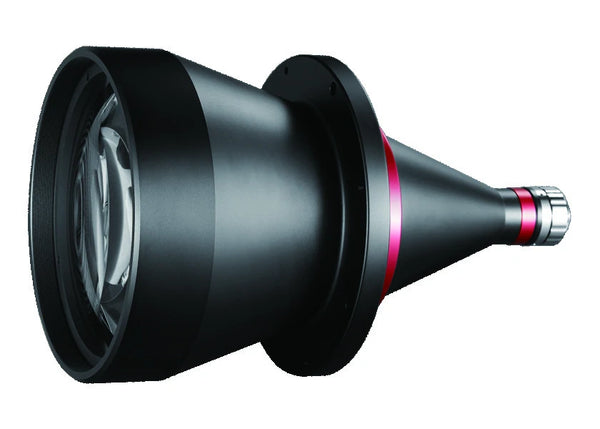

LS-TCL-2512Bi-telecentric lens for 1/1.8" cameras, 0.097x, WD 254 mm, C-mount 0.097xC-mount1/1.8"254±3 mm-79.6x60.4 mm$3,239.00 Ships in 2-3 weeks
LS-TCL-2513Bi-telecentric lens for 1/1.8" cameras, 0.082x, WD 251 mm, C-mount 0.082xC-mount1/1.8"251±3 mm87.3x66.3 mm-$3,399.00 Ships in 2-3 weeks

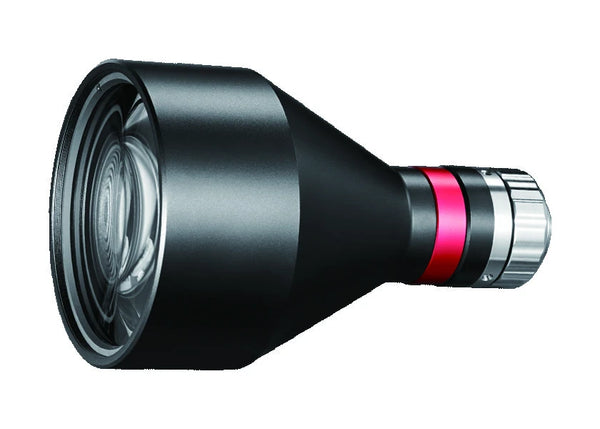

LS-TCL-2510Bi-telecentric lens for 1/1.8" cameras, 0.113x, WD 229 mm, C-mount 0.113xC-mount1/1.8"229±2 mm-63.4x48.1 mm$2,699.00 Ships in 2-3 weeks
LS-TCL-2509Bi-telecentric lens for 1/1.8" cameras, 0.126x, WD 178 mm, C-mount 0.126xC-mount1/1.8"178±2 mm-57.3x43.5 mm$2,699.00 Ships in 2-3 weeks
LS-TCL-2508Bi-telecentric lens for 1/1.8" cameras, 0.141x, WD 159 mm, C-mount 0.141xC-mount1/1.8"159±2 mm50.7x38.5 mm-$2,699.00 Ships in 2-3 weeks
LS-TCL-2507Bi-telecentric lens for 1/1.8" cameras, 0.142x, WD 187 mm, C-mount 0.142xC-mount1/1.8"187±2 mm-51.1x38.9 mm$2,509.00 Ships in 2-3 weeks
LS-TCL-2506Bi-telecentric lens for 1/1.8" cameras, 0.162x, WD 138 mm, C-mount 0.162xC-mount1/1.8"138±2 mm-44.5x33.8 mm$2,139.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
