Telecentric lenses
0.262x, WD 338 mm, M72-mount Telecentric Lens, length 619.4 mm (LS-TCL-1804)
Model LS-TCL-1804
- Magnification0.262x
- MountM72
- SensorLarge format
- Working distance338±5
- Aperture8.8
- Field of view258
$6,879.00
In stock - ships the same business day (5 available, order by 2 PM ET)
3.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.262x, WD 338 mm, M72-mount Telecentric Lens. At a glance: magnification 0.262x; working distance 338±5 mm; max sensor size 67.6 mm; object field of view 258 mm; image-side f/# 8.8.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1804 |
|---|
Optics
| Object field of view (dia. mm) | 258 |
|---|---|
| Magnification (x) | 0.262 |
| Working distance (mm) | 338±5 |
| Image-side F/# | 8.8 |
| Image-side MTF30 (lp/mm) | >95 |
| Theoretical depth of field (mm) | ±5.1@F8.8 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.05 |
| Object-to-image distance I/O (mm) | 897±5 |

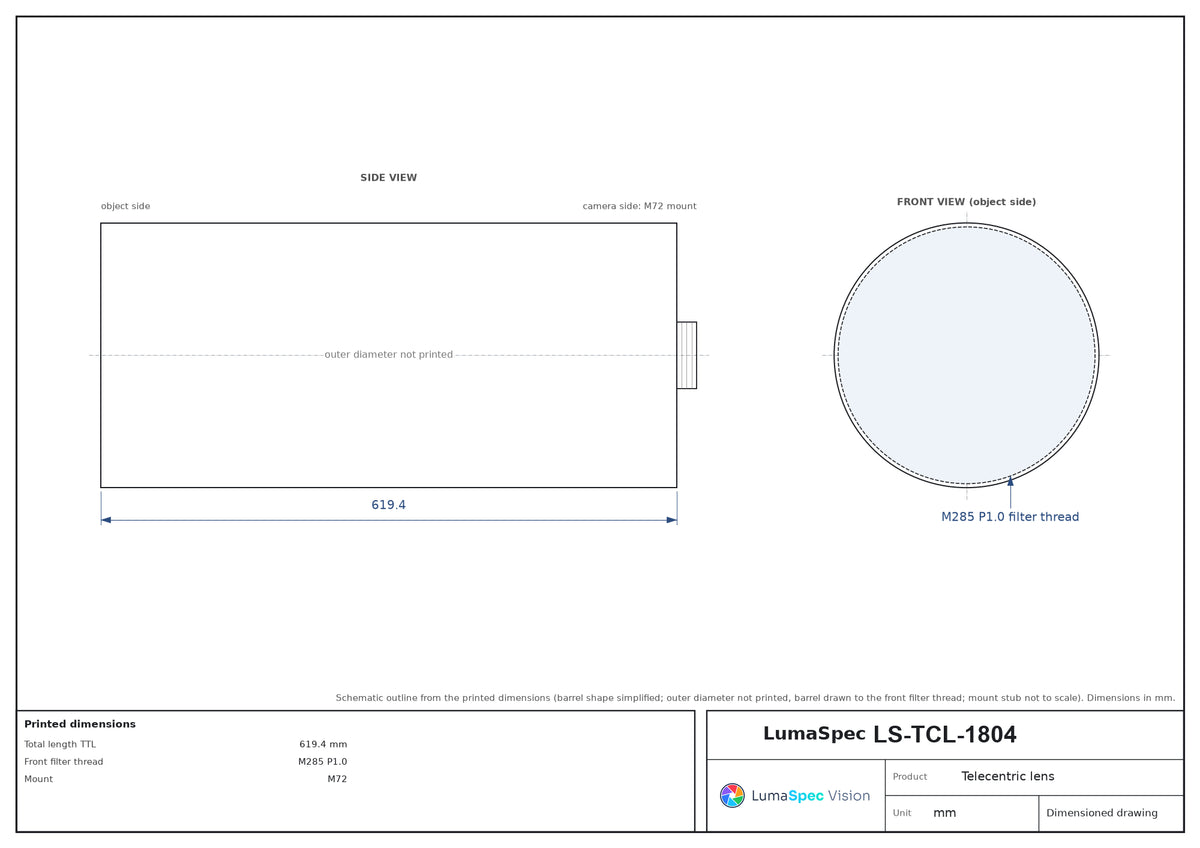

| Total length TTL (mm) | 619.4 |
| Front filter thread | M285 P1.0 |
Sensor and imaging
| Max sensor size (dia. mm) | 67.6 |
|---|
Mechanical
| Mount | M72 |
|---|---|
| Shipping weight (estimated) | 3.70 kg |
Photo shows a representative model of this series; see the specifications for this model.
