Telecentric lenses
0.112x, WD 338 mm, 1.75", M58-mount Telecentric Lens (LS-TCL-1843)
Model LS-TCL-1843
- Magnification0.112x
- MountM58
- Sensor1.75"
- Working distance338±5
- Aperture6.8
- Field of view258
$7,229.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
34.68 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
0.112x, WD 338 mm, 1.75", M58-mount Telecentric Lens. At a glance: magnification 0.112x; working distance 338±5 mm; max sensor size 29 mm (1.75"); object field of view 258 mm; image-side f/# 6.8.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1843 |
|---|
Optics
| Object field of view (dia. mm) | 258 |
|---|---|
| Magnification (x) | 0.112 |
| Working distance (mm) | 338±5 |
| Image-side F/# | 6.8 |
| Image-side MTF30 (lp/mm) | >130 |
| Theoretical depth of field (mm) | ±50.7@F16 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 851±5 |

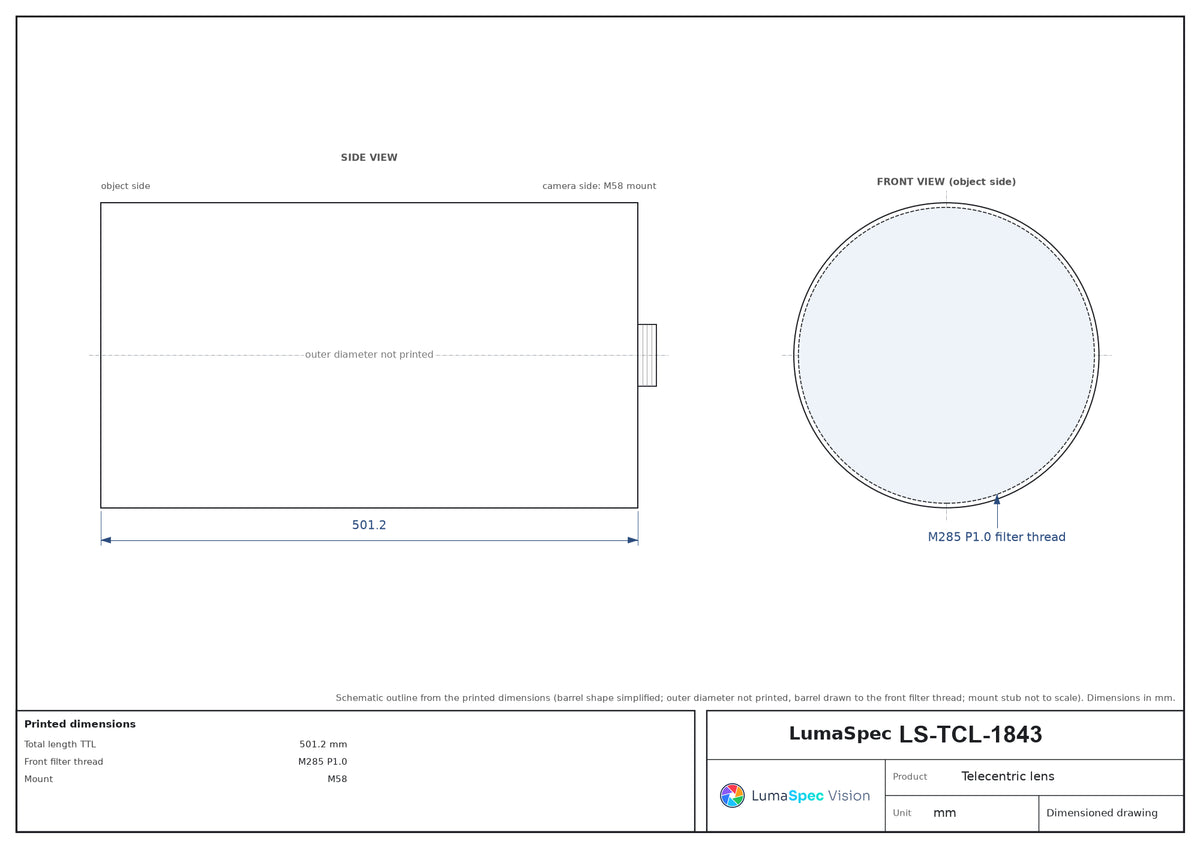

| Total length TTL (mm) | 501.2 |
| Front filter thread | M285 P1.0 |
Sensor and imaging
| Max sensor size (dia. mm) | 29(1.75") |
|---|
Mechanical
| Mount | M58 |
|---|---|
| Net weight (kg) | 24.7 |
| Shipping weight (estimated) | 34.68 kg |
Photo shows a representative model of this series; see the specifications for this model.
