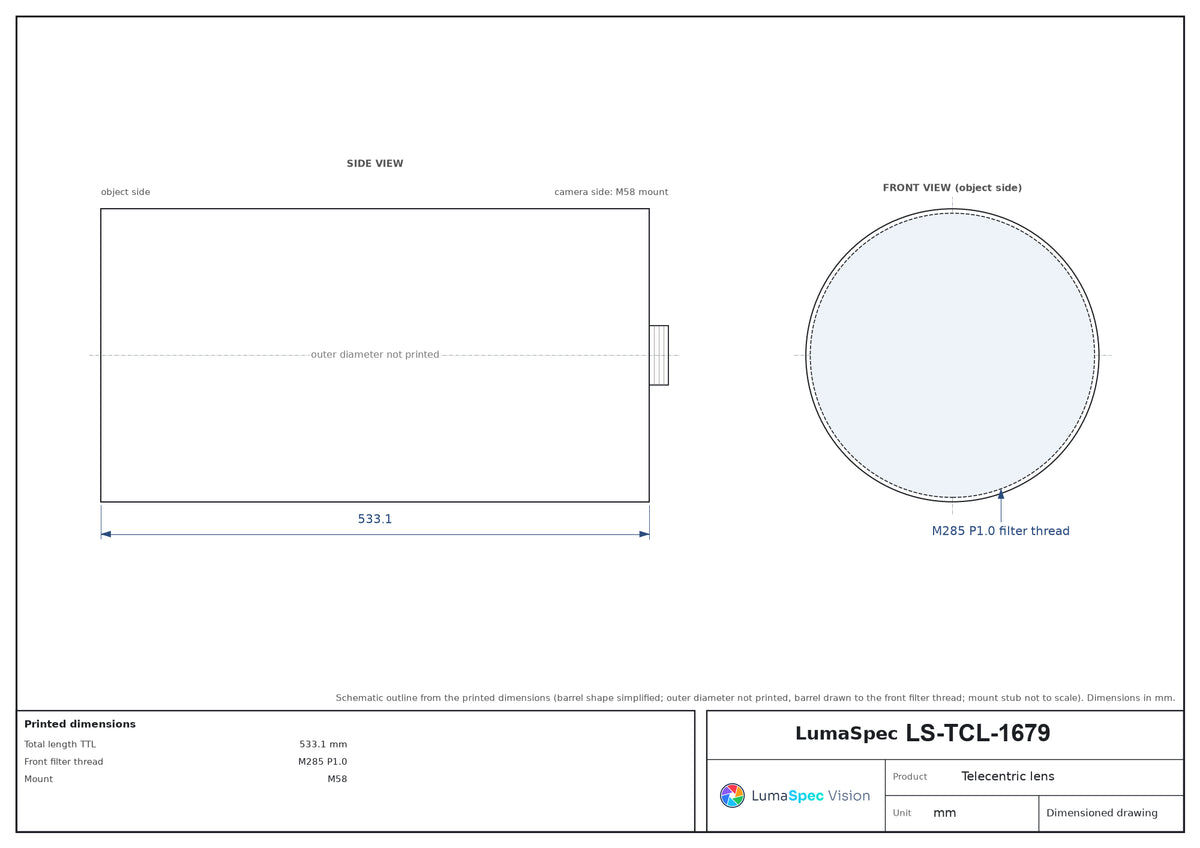

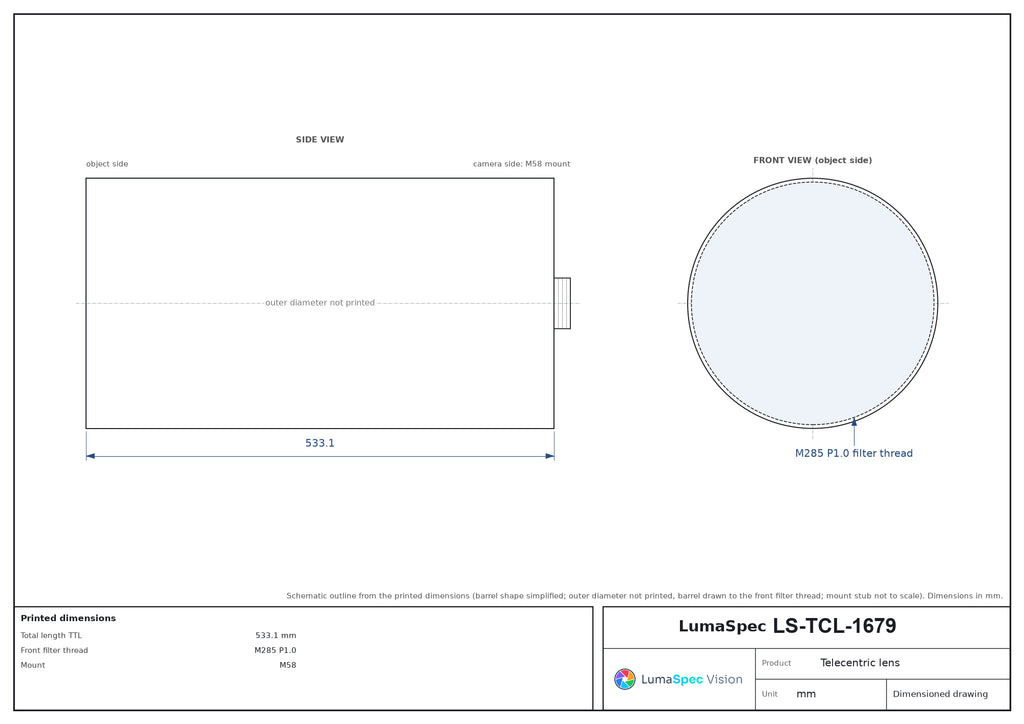

  • LS-TCL-1679 dimensions (mm)

Telecentric lenses

0.151x, WD 338 mm, M58-mount Telecentric Lens (LS-TCL-1679)

Model LS-TCL-1679

  • Magnification0.151x
  • MountM58
  • SensorAPS-H
  • Working distance338±5
  • Aperture6.5
  • Field of view258
$7,229.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

34.82 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.151x, WD 338 mm, M58-mount Telecentric Lens (LS-TCL-1679)LS-TCL-1679

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.151x, WD 338 mm, M58-mount Telecentric Lens. At a glance: magnification 0.151x; working distance 338±5 mm; max sensor size 39 mm; object field of view 258 mm; image-side f/# 6.5.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1679

Optics

Object field of view (dia. mm)258
Magnification (x)0.151
Working distance (mm)338±5
Image-side F/#6.5
Image-side MTF30 (lp/mm)>130
Theoretical depth of field (mm)±19.3@F11
Image-side distortion (% max)<0.1
Object-side telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)883±5
Total length TTL (mm)533.1
Front filter threadM285 P1.0

Sensor and imaging

Max sensor size (dia. mm)39

Mechanical

MountM58
Net weight (kg)24.8
Shipping weight (estimated)34.82 kg

Photo shows a representative model of this series; see the specifications for this model.
