Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

985-1008 of 1422 models

Products

Compare
LS-TCL-18020.282x, WD 410 mm, M72-mount telecentric lens, length Per outline drawing 0.282xM72Large format410±6 mmF9.4Ø 240 mm$6,309.00Quote Ships in 2-3 weeks
LS-TCL-18010.282x, WD 410 mm, M72-mount telecentric lens, length 742 mm 0.282xM72Large format410±6 mmF9.4Ø 240 mm$6,479.00Quote Ships in 2-3 weeks
LS-TCL-18000.282x, WD 410 mm, M72-mount telecentric lens, length 749.5 mm 0.282xM72Large format410±6 mmF9.4Ø 240 mm$6,729.00Quote Ships in 2-3 weeks
LS-TCL-15370.033x, WD 410 mm, 1/2", C-mount telecentric lens 0.033xC-mount1/2"410±6 mmF4.2Ø 240 mm$6,689.00Quote Ships in 2-3 weeks
LS-TCL-17840.03x, WD 410 mm, 1/2.5", C-mount telecentric lens, WD 410±6 0.03xC-mount1/2.5"410±6 mmF11.1Ø 240 mm$6,699.00Quote Ships in 2-3 weeks
LS-TCL-15020.077x, WD 410 mm, 1.1", C-mount telecentric lens 0.077xC-mount1.1"410±6 mmF6.2Ø 240 mm$6,699.00Quote Ships in 2-3 weeks
LS-TCL-19050.053x, WD 372 mm, 2/3", C-mount telecentric lens 0.053xC-mount2/3"372±5 mmF4.9Ø 216 mm$6,029.00Quote Ships in 2-3 weeks
LS-TCL-17420.109x, WD 372 mm, 4/3", M58-mount telecentric lens 0.109xM584/3"372±5 mmF4.6Ø 216 mm$6,039.00Quote Ships in 2-3 weeks
LS-TCL-17120.111x, WD 372 mm, 4/3", M58-mount telecentric lens 0.111xM584/3"372±5 mmF7.5Ø 216 mm$6,039.00Quote Ships in 2-3 weeks
LS-TCL-16770.181x, WD 372 mm, M58-mount telecentric lens 0.181xM58APS-H372±5 mmF6.5Ø 216 mm$6,039.00Quote Ships in 2-3 weeks
LS-TCL-16470.202x, WD 372 mm, M58-mount telecentric lens 0.202xM58Full frame372±5 mmF10.4Ø 216 mm$6,049.00Quote Ships in 2-3 weeks
LS-TCL-16210.204x, WD 372 mm telecentric lens 0.204xF-mount, M42, M58Full frame372±5 mmF10.4Ø 216 mm$5,859.00Quote Ships in 2-3 weeks
LS-TCL-14660.153x, WD 372 mm, 2", M58-mount telecentric lens 0.153xM582"372±5 mmF7.8Ø 216 mm$6,039.00Quote Ships in 2-3 weeks
LS-TCL-14310.077x, WD 372 mm, 1", C-mount telecentric lens 0.077xC-mount1"372±5 mmF6.5Ø 216 mm$6,029.00Quote Ships in 2-3 weeks

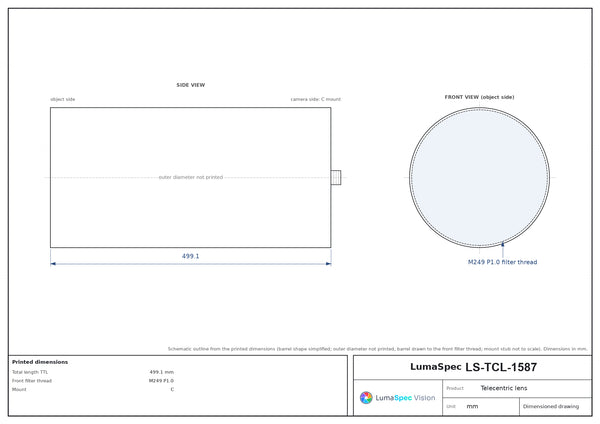

LS-TCL-15870.042x, WD 372 mm, 1/1.8", C-mount telecentric lens 0.042xC-mount1/1.8"372±5 mmF4.6Ø 216 mm$6,029.00Quote Ships in 2-3 weeks
LS-TCL-18410.134x, WD 372 mm, 1.75", M58-mount telecentric lens 0.134xM581.75"372±5 mmF6.8Ø 216 mm$6,039.00Quote Ships in 2-3 weeks

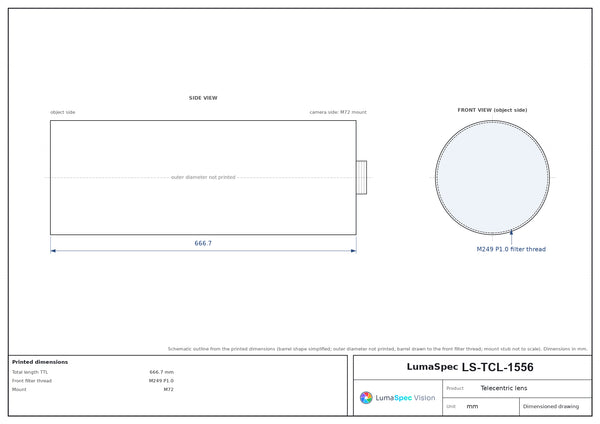

LS-TCL-15560.273x, WD 372 mm, M72-mount telecentric lens 0.273xM72Large format372±5 mmF8.7Ø 216 mm$6,059.00Quote Ships in 2-3 weeks
LS-TCL-17990.313x, WD 372 mm, M72-mount telecentric lens, length Per outline drawing 0.313xM72Large format372±5 mmF7.9Ø 216 mm$5,759.00Quote Ships in 2-3 weeks

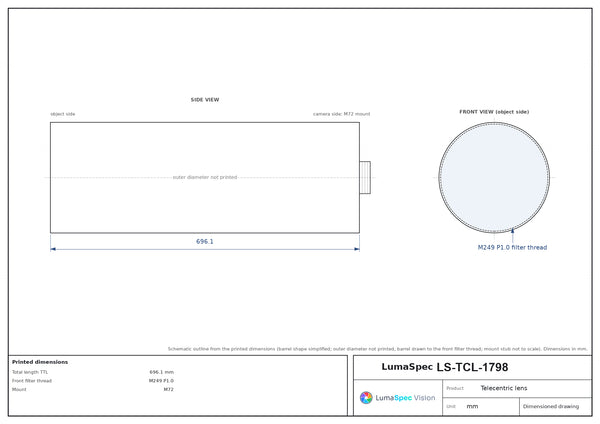

LS-TCL-17980.313x, WD 372 mm, M72-mount telecentric lens, length 696.1 mm 0.313xM72Large format372±5 mmF7.9Ø 216 mm$5,889.00Quote Ships in 2-3 weeks
LS-TCL-17970.313x, WD 372 mm, M72-mount telecentric lens, length 703.6 mm 0.313xM72Large format372±5 mmF7.9Ø 216 mm$6,059.00Quote Ships in 2-3 weeks
LS-TCL-15360.037x, WD 372 mm, 1/2", C-mount telecentric lens 0.037xC-mount1/2"372±5 mmF4.2Ø 216 mm$6,029.00Quote Ships in 2-3 weeks
LS-TCL-17820.033x, WD 372 mm, 1/2.5", C-mount telecentric lens 0.033xC-mount1/2.5"372±5 mmF9.7Ø 216 mm$6,029.00Quote Ships in 2-3 weeks
LS-TCL-15010.085x, WD 372 mm, 1.1", C-mount telecentric lens 0.085xC-mount1.1"372±5 mmF6.2Ø 216 mm$6,029.00Quote Ships in 2-3 weeks
LS-TCL-19040.06x, WD 330 mm, 2/3", C-mount telecentric lens 0.06xC-mount2/3"330±5 mmF4.9Ø 190 mm$5,339.00Quote Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
