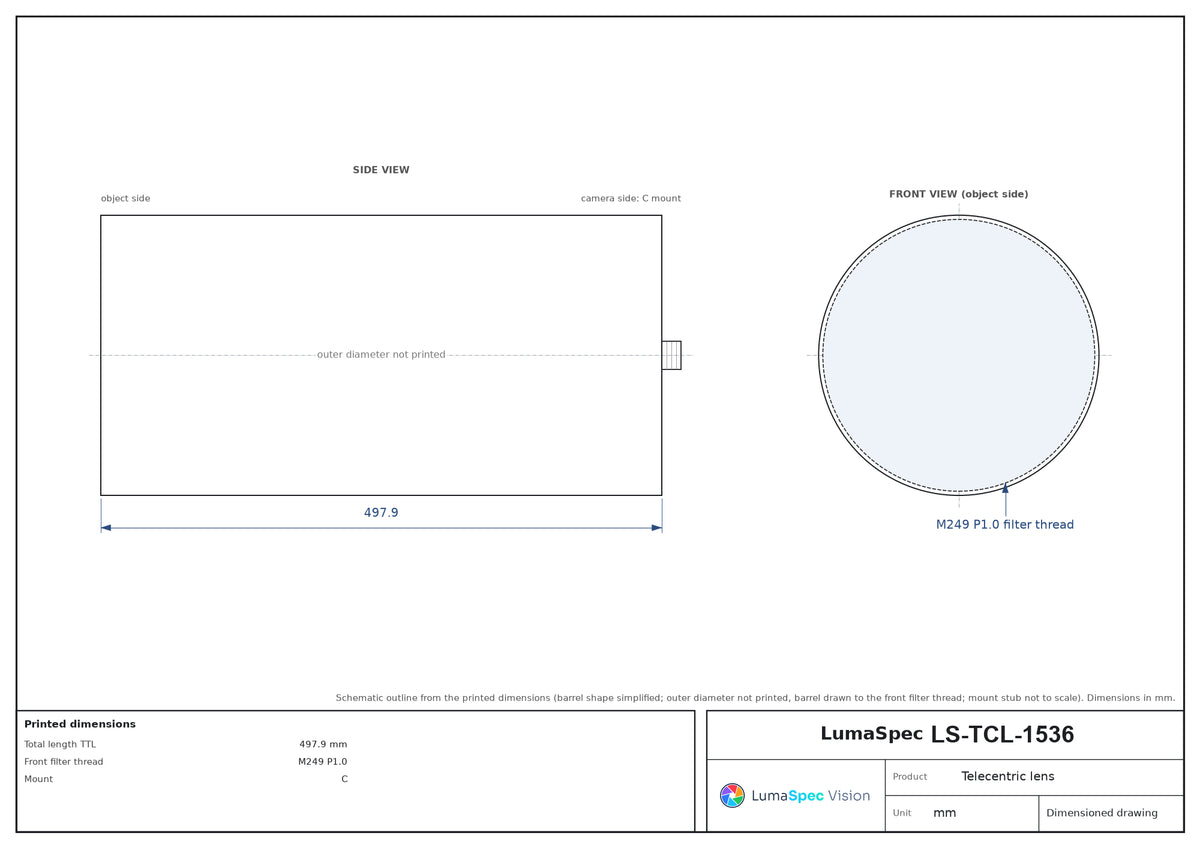

  • LS-TCL-1536 dimensions (mm)

Telecentric lenses

0.037x, WD 372 mm, 1/2", C-mount Telecentric Lens (LS-TCL-1536)

Model LS-TCL-1536

  • Magnification0.037x
  • MountC-mount
  • Sensor1/2"
  • Working distance372±5
  • Aperture4.2
  • Field of view216
$6,029.00

Ships in 2-3 weeks

19.28 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.037x, WD 372 mm, 1/2", C-mount Telecentric Lens (LS-TCL-1536)LS-TCL-1536

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.037x, WD 372 mm, 1/2", C-mount Telecentric Lens. At a glance: magnification 0.037x; working distance 372±5 mm; max sensor size 8.0 mm (1/2"); object field of view 216 mm; image-side f/# 4.2.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1536

Optics

Object field of view (dia. mm)216
Magnification (x)0.037
Working distance (mm)372±5
Image-side F/#4.2
Image-side MTF30 (lp/mm)>210
Theoretical depth of field (mm)±321@F11
Image-side distortion (% max)<0.1
Object-side telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)887±5
Total length TTL (mm)497.9
Front filter threadM249 P1.0

Sensor and imaging

Max sensor size (dia. mm)8.0(1/2")

Mechanical

MountC
Net weight (kg)13.7
Shipping weight (estimated)19.28 kg

Photo shows a representative model of this series; see the specifications for this model.
