Telecentric lenses
0.048x, WD 300 mm, 1/2.5", C-mount Telecentric Lens (LS-TCL-1778)
Model LS-TCL-1778
- Magnification0.048x
- MountC-mount
- Sensor1/2.5"
- Working distance300±5
- Aperture6.2
- Field of view150
$5,429.00
In stock - ships the same business day (5 available, order by 2 PM ET)
8.01 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.048x, WD 300 mm, 1/2.5", C-mount Telecentric Lens. At a glance: magnification 0.048x; working distance 300±5 mm; max sensor size 7.2 mm (1/2.5"); object field of view 150 mm; image-side f/# 6.2.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1778 |
|---|
Optics
| Object field of view (dia. mm) | 150 |
|---|---|
| Magnification (x) | 0.048 |
| Working distance (mm) | 300±5 |
| Image-side F/# | 6.2 |
| Image-side MTF30 (lp/mm) | >210 |
| Theoretical depth of field (mm) | ±190@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 627±5 |

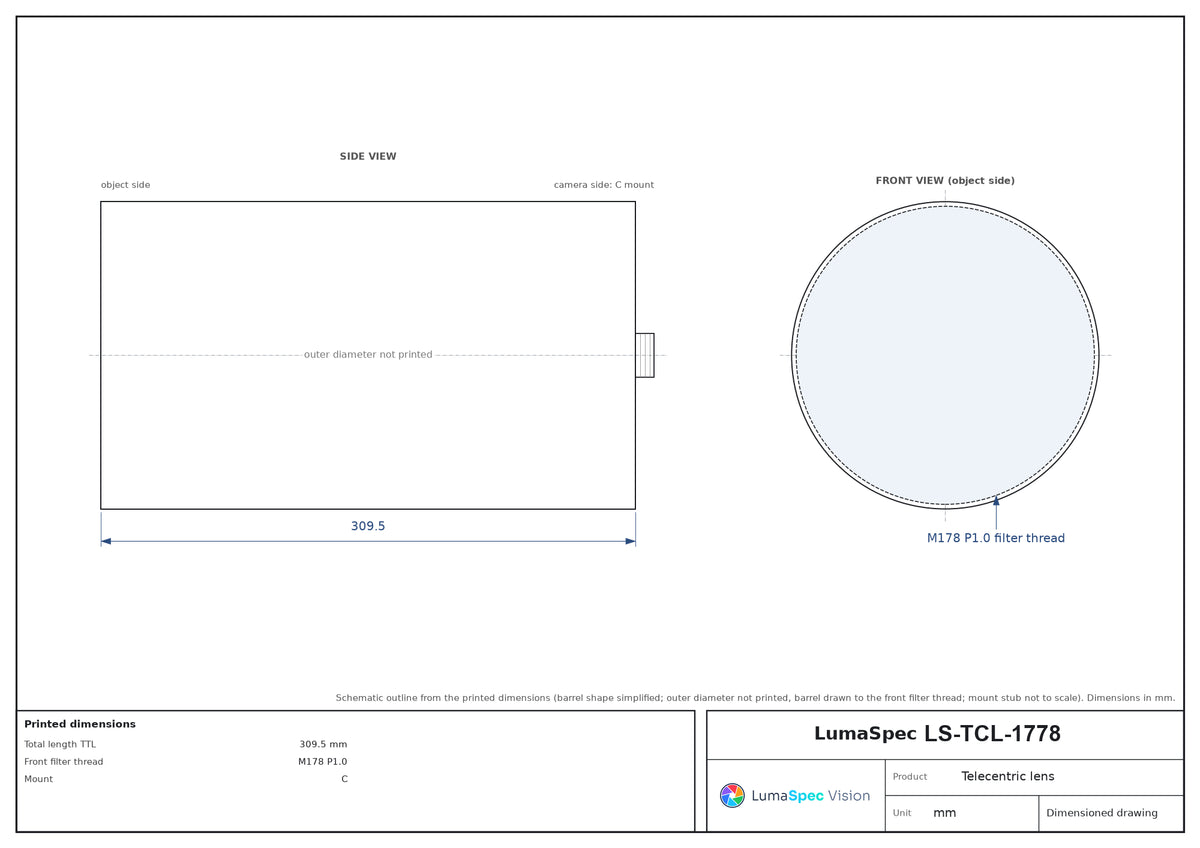

| Total length TTL (mm) | 309.5 |
| Front filter thread | M178 P1.0 |
Sensor and imaging
| Max sensor size (dia. mm) | 7.2(1/2.5") |
|---|
Mechanical
| Mount | C |
|---|---|
| Net weight (kg) | 5.65 |
| Shipping weight (estimated) | 8.01 kg |
Photo shows a representative model of this series; see the specifications for this model.
