Lenses

Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

457-480 of 1422 models

Products

Compare
LS-TCL-2649Bi-telecentric lens, 0.517x, WD 138 mm, 1.75", F-mount 0.517xF-mount1.75"138±2 mmØ 56 mm-$1,819.00 Ships in 2-3 weeks
LS-TCL-2648Bi-telecentric lens, 0.603x, WD 128 mm, 1.75", F-mount 0.603xF-mount1.75"128±2 mmØ 48 mm-$1,669.00 Ships in 2-3 weeks
LS-TCL-2647Bi-telecentric lens, 0.69x, WD 118 mm, 1.75", F-mount 0.690xF-mount1.75"118±2 mmØ 42 mm-$1,559.00 Ships in 2-3 weeks
LS-TCL-2646Bi-telecentric lens, 0.801x, WD 111 mm, 1.75", F-mount 0.801xF-mount1.75"111±2 mmØ 36 mm-$1,459.00 Ships in 2-3 weeks
LS-TCL-2645Bi-telecentric lens, 1.117x, WD 72 mm, 1.75", F-mount -F-mount1.75"72±2 mm-20.1x15.1 mm$1,409.00 Ships in 2-3 weeks
LS-TCL-2644Bi-telecentric lens for 1.75" cameras, 0.097x, WD 465 mm, F or Other-mount 0.097xF-mount1.75"465±6 mmØ 300 mm-$8,699.00Quote Ships in 2-3 weeks
LS-TCL-2642Bi-telecentric lens for 1.75" cameras, 0.153x, WD 330 mm, F or Other-mount 0.153xF-mount1.75"330±5 mmØ 190 mm-$5,379.00Quote Ships in 2-3 weeks
LS-TCL-2638Bi-telecentric lens for 1.75" cameras, 0.242x, WD 280 mm, F or Other-mount 0.242xF-mount1.75"280±5 mmØ 120 mm-$3,629.00 Ships in 2-3 weeks
LS-TCL-2635Bi-telecentric lens for 1.75" cameras, 0.322x, WD 208 mm, F or Other-mount 0.322xF-mount1.75"208±3 mmØ 90 mm-$2,899.00 Ships in 2-3 weeks
LS-TCL-2629Bi-telecentric lens for 1.75" cameras, 0.604x, WD 138 mm, F or Other-mount 0.604xF-mount1.75"138±3 mmØ 48 mm-$1,909.00 Ships in 2-3 weeks

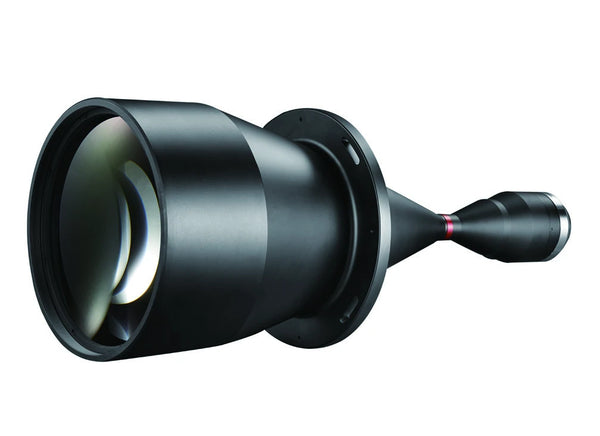

LS-TCL-2624Bi-telecentric lens for 59 mm cameras, 0.197x, WD 465 mm, M72-mount 0.197xF-mountLarge format465±6 mmØ 300 mm-$8,719.00Quote Ships in 2-3 weeks

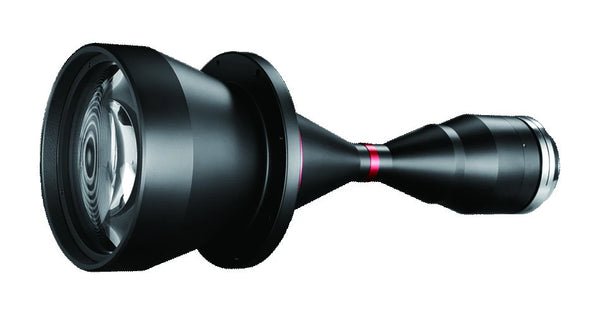

LS-TCL-2622Bi-telecentric lens for 59 mm cameras, 0.311x, WD 330 mm, M72-mount 0.311xF-mountLarge format330±5 mmØ 190 mm-$5,409.00Quote Ships in 2-3 weeks

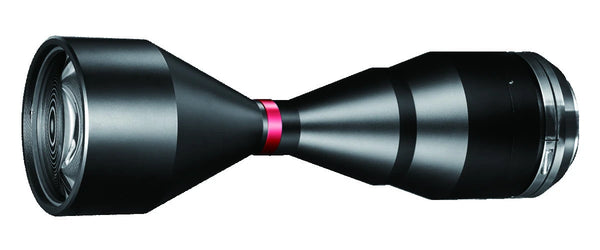

LS-TCL-2616Bi-telecentric lens for 59 mm cameras, 0.654x, WD 208 mm, M72-mount 0.656xF-mountLarge format208±2 mm--$2,919.00 Ships in 2-3 weeks
LS-TCL-2615Bi-telecentric lens for 59 mm cameras, 0.735x, WD 230 mm, M72-mount -F-mountLarge format230±2 mm--$2,689.00 Ships in 2-3 weeks
LS-TCL-2610Bi-telecentric lens for 59 mm cameras, 1x, WD 85 mm, M72-mount 1.000xF-mountLarge format85±1 mmØ 59 mm-$2,199.00 Ships in 2-3 weeks

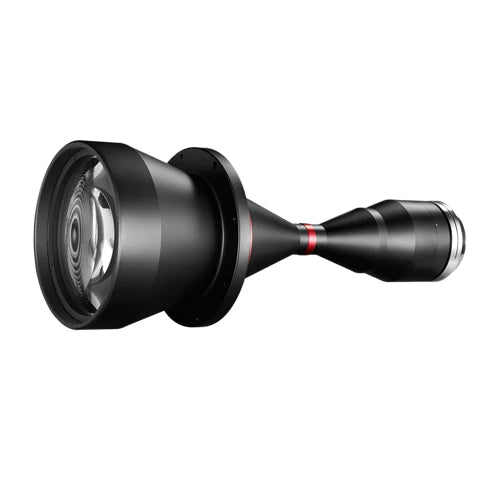

LS-TCL-2607Bi-telecentric lens for 59 mm cameras, 1.401x, WD 118 mm, M72-mount -F-mountLarge format118±2 mm--$1,799.00 Ships in 2-3 weeks

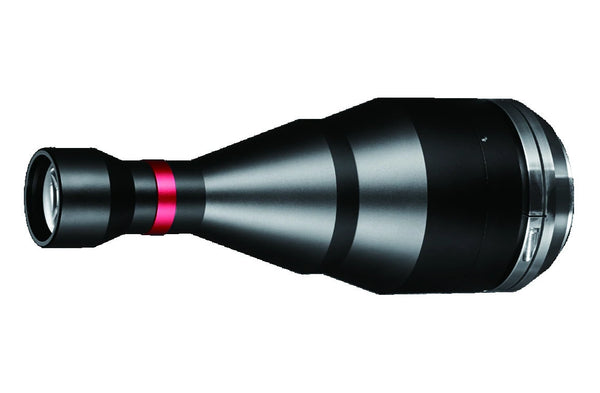

LS-TCL-2604Bi-telecentric lens for 59 mm cameras, 2.03x, WD 45 mm, M72-mount 2.030xF-mountLarge format45±1 mmØ 29 mm-$1,849.00 Ships in 2-3 weeks
LS-TCL-2602Bi-telecentric lens for 1/2.5" cameras, B variant, 0.072x, WD 238 mm, C-mount -C-mount1/2.5"238±3 mm79.1x59.4 mm-$3,139.00 Ships in 2-3 weeks

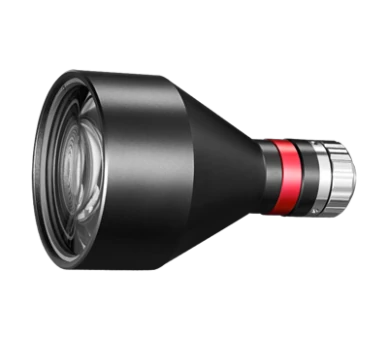

LS-TCL-2601Bi-telecentric lens for 1/2.5" cameras, B variant, 0.08x, WD 208 mm, C-mount -C-mount1/2.5"208±2 mm71.2x53.5 mm-$2,879.00 Ships in 2-3 weeks

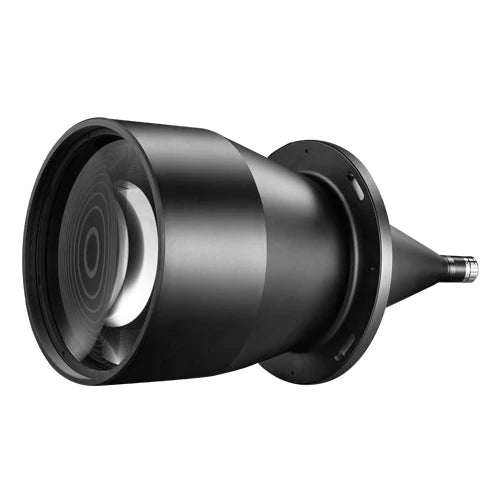

LS-TCL-2600Bi-telecentric lens for 1/2.5" cameras, B variant, 0.09x, WD 230 mm, C-mount -C-mount1/2.5"230±2 mm63.3x47.5 mm-$2,659.00 Ships in 2-3 weeks
LS-TCL-2599Bi-telecentric lens for 1/2.5" cameras, B variant, 0.1x, WD 178 mm, C-mount -C-mount1/2.5"178±2 mm57.0x42.8 mm-$2,459.00 Ships in 2-3 weeks
LS-TCL-2598Bi-telecentric lens for 1/2.5" cameras, B variant, 0.113x, WD 187 mm, C-mount -C-mount1/2.5"187±2 mm50.4x37.8 mm-$2,269.00 Ships in 2-3 weeks
LS-TCL-2597Bi-telecentric lens for 1/2.5" cameras, B variant, 0.129x, WD 138 mm, C-mount -C-mount1/2.5"138±2 mm44.1x33.1 mm-$2,089.00 Ships in 2-3 weeks

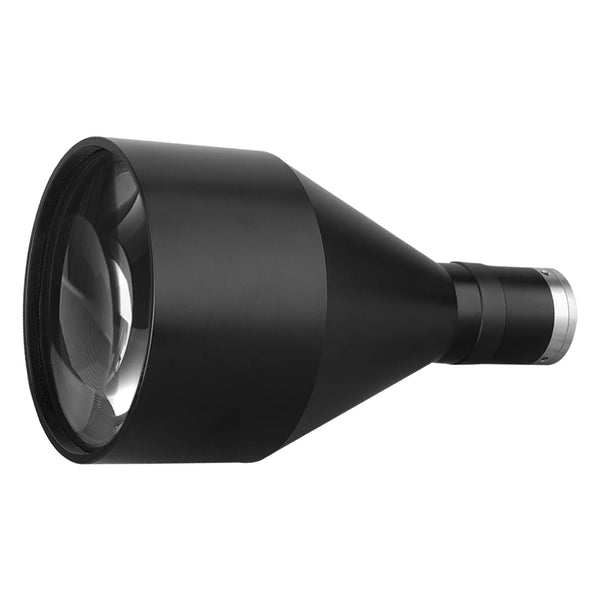

LS-TCL-2596Bi-telecentric lens for 1/2.5" cameras, B variant, 0.15x, WD 128 mm, C-mount -C-mount1/2.5"128±2 mm38.0x28.5 mm-$1,899.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
