Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

505-528 of 1422 models

Products

Compare
LS-TCL-2556Bi-telecentric lens for 1/2" cameras, B variant, 0.308x, WD 72 mm, C-mount C-mount1/2"72±2 mm20.9x15.0 mm--$1,399.00 Ships in 2-3 weeks
LS-TCL-2555Bi-telecentric lens for 1/2" cameras, 0.027x, WD 465 mm, C-mount C-mount1/2"465±6 mmØ 300 mm0.027x-$8,689.00Quote Ships in 2-3 weeks
LS-TCL-2553Bi-telecentric lens for 1/2" cameras, C-mount C-mount1/2"-153.3x110.0 mm-Bi-telecentric$4,539.00 Ships in 2-3 weeks
LS-TCL-2549Bi-telecentric lens for 1/2" cameras, 0.067x, WD 280 mm, C-mount C-mount1/2"280±5 mmØ 120 mm0.067x-$3,619.00 Ships in 2-3 weeks
LS-TCL-2546Bi-telecentric lens for 1/2" cameras, 0.089x, WD 208 mm, C-mount C-mount1/2"208±3 mmØ 90 mm0.089x-$2,879.00 Ships in 2-3 weeks
LS-TCL-2540Bi-telecentric lens for 1/2" cameras, 0.167x, WD 138 mm, C-mount C-mount1/2"138±3 mmØ 48 mm0.167x-$1,899.00 Ships in 2-3 weeks
LS-TCL-2535Bi-telecentric lens for 1/1.8" cameras, B variant, 0.037x, WD 410 mm, C-mount C-mount1/1.8"410±5 mm---$6,659.00Quote Ships in 2-3 weeks

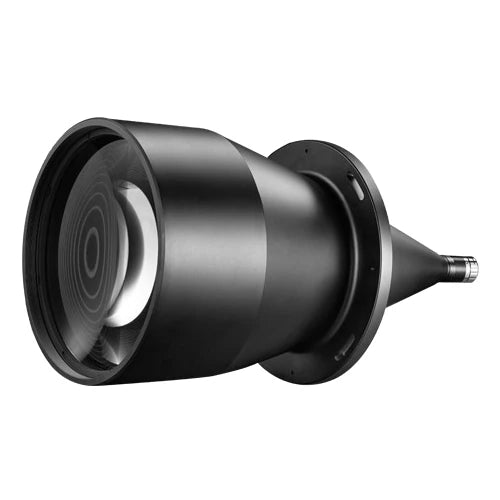

LS-TCL-2534Bi-telecentric lens for 1/1.8" cameras, B variant, 0.053x, WD 318 mm, C-mount C-mount1/1.8"318±4 mm---$4,819.00 Ships in 2-3 weeks
LS-TCL-2533Bi-telecentric lens for 1/1.8" cameras, B variant, 0.06x, WD 301 mm, C-mount C-mount1/1.8"301±4 mm---$4,359.00 Ships in 2-3 weeks
LS-TCL-2532Bi-telecentric lens for 1/1.8" cameras, B variant, 0.066x, WD 288 mm, C-mount C-mount1/1.8"288±4 mm---$4,049.00 Ships in 2-3 weeks
LS-TCL-2531Bi-telecentric lens for 1/1.8" cameras, B variant, 0.081x, WD 251 mm, C-mount C-mount1/1.8"251±3 mm---$3,419.00 Ships in 2-3 weeks
LS-TCL-2530Bi-telecentric lens for 1/1.8" cameras, B variant, 0.091x, WD 238 mm, C-mount C-mount1/1.8"238±3 mm---$3,139.00 Ships in 2-3 weeks
LS-TCL-2529Bi-telecentric lens for 1/1.8" cameras, B variant, 0.1x, WD 208 mm, C-mount C-mount1/1.8"208±2 mm---$2,879.00 Ships in 2-3 weeks
LS-TCL-2528Bi-telecentric lens for 1/1.8" cameras, B variant, 0.113x, WD 230 mm, C-mount C-mount1/1.8"230±2 mm---$2,659.00 Ships in 2-3 weeks

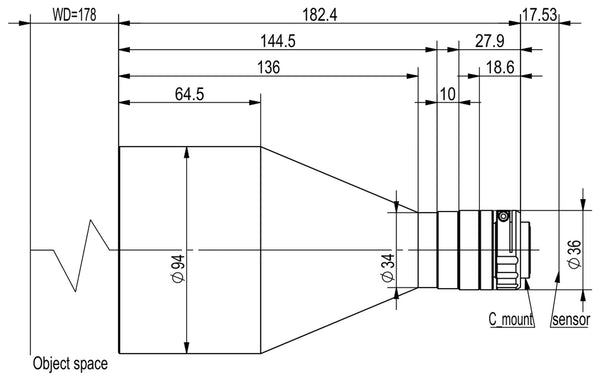

LS-TCL-2527Bi-telecentric lens for 1/1.8" cameras, B variant, 0.125x, WD 178 mm, C-mount C-mount1/1.8"178±2 mm---$2,459.00 Ships in 2-3 weeks
LS-TCL-2526Bi-telecentric lens for 1/1.8" cameras, B variant, 0.14x, WD 159 mm, C-mount C-mount1/1.8"159±2 mm---$2,279.00 Ships in 2-3 weeks
LS-TCL-2525Bi-telecentric lens for 1/1.8" cameras, B variant, 0.141x, WD 187 mm, C-mount C-mount1/1.8"187±2 mm---$2,269.00 Ships in 2-3 weeks
LS-TCL-2524Bi-telecentric lens for 1/1.8" cameras, B variant, 0.161x, WD 138 mm, C-mount C-mount1/1.8"138±2 mm---$2,089.00 Ships in 2-3 weeks

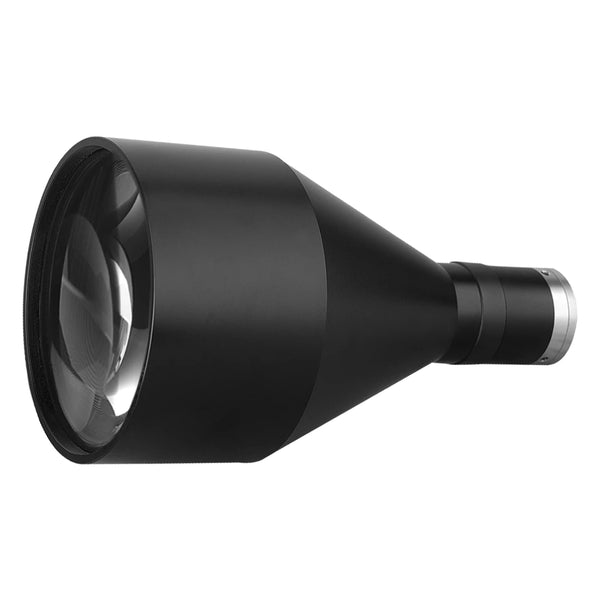

LS-TCL-2523Bi-telecentric lens for 1/1.8" cameras, B variant, 0.187x, WD 128 mm, C-mount C-mount1/1.8"128±2 mm---$1,899.00 Ships in 2-3 weeks
LS-TCL-2522Bi-telecentric lens for 1/1.8" cameras, B variant, 0.215x, WD 118 mm, C-mount C-mount1/1.8"118±2 mm---$1,769.00 Ships in 2-3 weeks
LS-TCL-2521Bi-telecentric lens for 1/1.8" cameras, B variant, 0.25x, WD 111 mm, C-mount C-mount1/1.8"111±2 mm---$1,629.00 Ships in 2-3 weeks

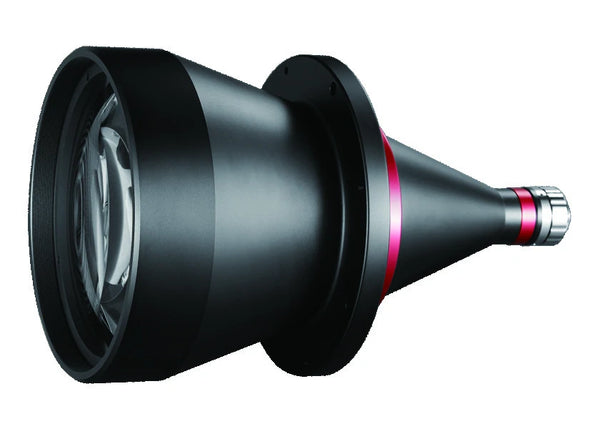

LS-TCL-2520Bi-telecentric lens for 1/1.8" cameras, C-mount C-mount1/1.8"---Bi-telecentric$7,289.00Quote Ships in 2-3 weeks
LS-TCL-2518Bi-telecentric lens for 1/1.8" cameras, 0.047x, WD 330 mm, C-mount C-mount1/1.8"330±5 mmØ 190 mm0.047x-$5,369.00Quote Ships in 2-3 weeks
LS-TCL-2514Bi-telecentric lens for 1/1.8" cameras, 0.075x, WD 280 mm, C-mount C-mount1/1.8"280±5 mm---$3,629.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.
