0.123x bi-telecentric lens, WD 300 mm, 1.1"
LS-TCL-1075
- Magnification 0.123x
- Mount C-mount
- Sensor 1.1"
$2,835.00
Ships in 3-4 weeks
Lenses

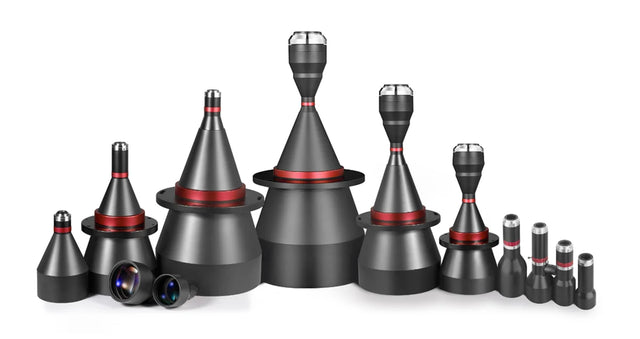

1.1-inch telecentric lenses
How to choose a telecentric lensTelecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Lenses rated for 1.1-inch sensors cover an image circle of at least 17.6 mm, so they also suit smaller sensors; on a larger sensor the corners go dark (vignetting).
All telecentric lenses · 4/3-inch telecentric lenses · 1-inch telecentric lenses · 2/3-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses · Full frame telecentric lenses
Products
0.256x bi-telecentric lens, WD 178 mm, 1.1"
LS-TCL-1085
- Magnification 0.256x
- Mount C-mount
- Sensor 1.1"
$1,305.00
Ships in 3-4 weeks
0.085x bi-telecentric lens, WD 372 mm, 1.1"
LS-TCL-1072
- Magnification 0.085x
- Mount C-mount
- Sensor 1.1"
$4,925.00
Ships in 3-4 weeks
0.153x bi-telecentric lens, WD 273 mm, 1.1"
LS-TCL-1077
- Magnification 0.153x
- Mount C-mount
- Sensor 1.1"
$2,460.00
Ships in 3-4 weeks
0.383x bi-telecentric lens, WD 128 mm, 1.1"
LS-TCL-1091
- Magnification 0.383x
- Mount C-mount
- Sensor 1.1"
$900.00
Ships in 3-4 weeks
0.23x bi-telecentric lens, WD 228 mm, 1.1"
LS-TCL-1083
- Magnification 0.23x
- Mount C-mount
- Sensor 1.1"
$1,605.00
Ships in 3-4 weeks
0.246x telecentric lens, 1.1"
LS-TCL-1084
- Magnification 0.246x
- Mount C-mount
- Sensor 1.1"
$808.00
Ships in 3-4 weeks
0.275x telecentric lens, 1.1"
LS-TCL-1086
- Magnification 0.275x
- Mount C-mount
- Sensor 1.1"
$808.00
Ships in 3-4 weeks
0.204x bi-telecentric lens, WD 208 mm, 1.1"
LS-TCL-1080
- Magnification 0.204x
- Mount C-mount
- Sensor 1.1"
$1,715.00
Ships in 3-4 weeks
0.167x bi-telecentric lens, WD 263 mm, 1.1"
LS-TCL-1078
- Magnification 0.167x
- Mount C-mount
- Sensor 1.1"
$1,875.00
Ships in 3-4 weeks
0.428x bi-telecentric lens, WD 118 mm, 1.1"
LS-TCL-1093
- Magnification 0.428x
- Mount C-mount
- Sensor 1.1"
$780.00
Ships in 3-4 weeks
0.22x telecentric lens, 1.1"
LS-TCL-1081
- Magnification 0.22x
- Mount C-mount
- Sensor 1.1"
$808.00
Ships in 3-4 weeks
0.383x bi-telecentric lens, WD 138 mm, 1.1"
LS-TCL-1092
- Magnification 0.383x
- Mount C-mount
- Sensor 1.1"
$900.00
Ships in 3-4 weeks
0.329x bi-telecentric lens, WD 138 mm, 1.1"
LS-TCL-1088
- Magnification 0.329x
- Mount C-mount
- Sensor 1.1"
$1,020.00
Ships in 3-4 weeks
0.345x telecentric lens, 1.1"
LS-TCL-1089
- Magnification 0.345x
- Mount C-mount
- Sensor 1.1"
$808.00
Ships in 3-4 weeks
0.55x telecentric lens, 1.1", 0.55x Coaxial
LS-TCL-1097
- Magnification 0.55x
- Mount C-mount
- Sensor 1.1"
$715.00
Ships in 3-4 weeks
3x telecentric lens, 1.1", C-mount
LS-TCL-1115
- Magnification 3x
- Mount C-mount
- Sensor 1.1"
$620.00
Ships in 3-4 weeks
0.708x bi-telecentric lens, WD 73 mm, 1.1"
LS-TCL-1101
- Magnification 0.708x
- Mount C-mount
- Sensor 1.1"
$870.00
Ships in 3-4 weeks
0.23x telecentric lens, 1.1"
LS-TCL-1082
- Magnification 0.23x
- Mount C-mount
- Sensor 1.1"
$808.00
Ships in 3-4 weeks
1.5x bi-telecentric lens, WD 110 mm, 1.1"
LS-TCL-1109
- Magnification 1.5x
- Mount C-mount
- Sensor 1.1"
$620.00
Ships in 3-4 weeks
0.55x telecentric lens, 1.1"
LS-TCL-1096
- Magnification 0.55x
- Mount C-mount
- Sensor 1.1"
$670.00
Ships in 3-4 weeks
0.367x telecentric lens, 1.1"
LS-TCL-1090
- Magnification 0.367x
- Mount C-mount
- Sensor 1.1"
$808.00
Ships in 3-4 weeks
2x telecentric lens, 1.1", C-mount
LS-TCL-1110
- Magnification 2x
- Mount C-mount
- Sensor 1.1"
$620.00
Ships in 3-4 weeks
0.8x telecentric lens, 1.1", C-mount
LS-TCL-1102
- Magnification 0.8x
- Mount C-mount
- Sensor 1.1"
$700.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-10750.123x bi-telecentric lens, WD 300 mm, 1.1"
| 0.123x | C-mount | 1.1" | 300±5 mm | F6.2 | dia. 150 mm | $2,835.00 | Ships in 3-4 weeks | |
 LS-TCL-10850.256x bi-telecentric lens, WD 178 mm, 1.1"
| 0.256x | C-mount | 1.1" | 178±3 mm | F6.2 | dia. 72 mm | $1,305.00 | Ships in 3-4 weeks | |
 LS-TCL-10720.085x bi-telecentric lens, WD 372 mm, 1.1"
| 0.085x | C-mount | 1.1" | 372±5 mm | F6.2 | dia. 216 mm | $4,925.00 | Ships in 3-4 weeks | |
 LS-TCL-10770.153x bi-telecentric lens, WD 273 mm, 1.1"
| 0.153x | C-mount | 1.1" | 273±5 mm | F6.2 | dia. 120 mm | $2,460.00 | Ships in 3-4 weeks | |
 LS-TCL-10910.383x bi-telecentric lens, WD 128 mm, 1.1"
| 0.383x | C-mount | 1.1" | 128±3 mm | F7.2 | dia. 48 mm | $900.00 | Ships in 3-4 weeks | |
 LS-TCL-10830.23x bi-telecentric lens, WD 228 mm, 1.1"
| 0.23x | C-mount | 1.1" | 228±4 mm | F6.2 | dia. 80 mm | $1,605.00 | Ships in 3-4 weeks | |
 LS-TCL-10840.246x telecentric lens, 1.1"
| 0.246x | C-mount | 1.1" | 220±3 mm | F8 | - | $808.00 | Ships in 3-4 weeks | |
 LS-TCL-10860.275x telecentric lens, 1.1"
| 0.275x | C-mount | 1.1" | 220±3 mm | F8 | - | $808.00 | Ships in 3-4 weeks | |
 LS-TCL-10800.204x bi-telecentric lens, WD 208 mm, 1.1"
| 0.204x | C-mount | 1.1" | 208±3 mm | F6.2 | dia. 90 mm | $1,715.00 | Ships in 3-4 weeks | |
 LS-TCL-10780.167x bi-telecentric lens, WD 263 mm, 1.1"
| 0.167x | C-mount | 1.1" | 263±4 mm | F6.2 | dia. 110 mm | $1,875.00 | Ships in 3-4 weeks | |
 LS-TCL-10930.428x bi-telecentric lens, WD 118 mm, 1.1"
| 0.428x | C-mount | 1.1" | 118±3 mm | F7.2 | dia. 42 mm | $780.00 | Ships in 3-4 weeks | |
|
LS-TCL-10810.22x telecentric lens, 1.1"
| 0.22x | C-mount | 1.1" | 220±3 mm | F8 | - | $808.00 | Ships in 3-4 weeks | |
 LS-TCL-10920.383x bi-telecentric lens, WD 138 mm, 1.1"
| 0.383x | C-mount | 1.1" | 138±3 mm | F10.8 | dia. 48 mm | $900.00 | Ships in 3-4 weeks | |
 LS-TCL-10880.329x bi-telecentric lens, WD 138 mm, 1.1"
| 0.329x | C-mount | 1.1" | 138±3 mm | F6.2 | dia. 56 mm | $1,020.00 | Ships in 3-4 weeks | |
 LS-TCL-10890.345x telecentric lens, 1.1"
| 0.345x | C-mount | 1.1" | 220±3 mm | F8 | - | $808.00 | Ships in 3-4 weeks | |
 LS-TCL-10970.55x telecentric lens, 1.1", 0.55x Coaxial
| 0.55x | C-mount | 1.1" | 220±3 mm | F10.1 | - | $715.00 | Ships in 3-4 weeks | |
 LS-TCL-11153x telecentric lens, 1.1", C-mount
| 3x | C-mount | 1.1" | 110±2 mm | F20.1 | - | $620.00 | Ships in 3-4 weeks | |
 LS-TCL-11010.708x bi-telecentric lens, WD 73 mm, 1.1"
| 0.708x | C-mount | 1.1" | 73±1 mm | F9.6 | dia. 26 mm | $870.00 | Ships in 3-4 weeks | |
|
LS-TCL-10820.23x telecentric lens, 1.1"
| 0.23x | C-mount | 1.1" | 220±3 mm | F8 | - | $808.00 | Ships in 3-4 weeks | |
 LS-TCL-11091.5x bi-telecentric lens, WD 110 mm, 1.1"
| 1.5x | C-mount | 1.1" | 110±2 mm | F10 | - | $620.00 | Ships in 3-4 weeks | |
 LS-TCL-10960.55x telecentric lens, 1.1"
| 0.55x | C-mount | 1.1" | 220±3 mm | F10.1 | - | $670.00 | Ships in 3-4 weeks | |
 LS-TCL-10900.367x telecentric lens, 1.1"
| 0.367x | C-mount | 1.1" | 220±3 mm | F8 | - | $808.00 | Ships in 3-4 weeks | |
 LS-TCL-11102x telecentric lens, 1.1", C-mount
| 2x | C-mount | 1.1" | 110±2 mm | F13.5 | - | $620.00 | Ships in 3-4 weeks | |
 LS-TCL-11020.8x telecentric lens, 1.1", C-mount
| 0.8x | C-mount | 1.1" | 110±2 mm | F7.9 | - | $700.00 | Ships in 3-4 weeks |
