Infrared cameras · 3 models · from $3,999.00

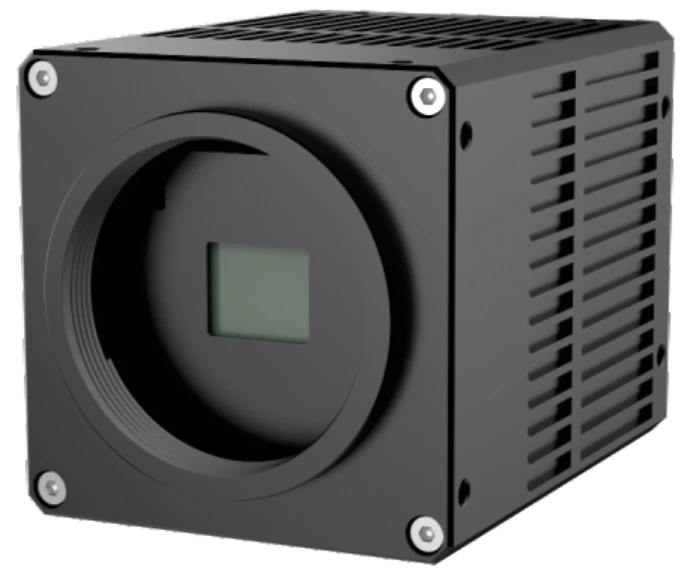

Thermal imaging camera (LS-MV-GLF120 / LS-MV-GLF480)
The Thermal imaging camera (LS-MV-GLF120 / LS-MV-GLF480) is a range of 3 infrared cameras from LumaSpec Vision, from $3,999.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
| Sizes / versions | 0.1 MP, GigE, 0.1 MP, GigE, Thermal, 0.5 MP, GigE, Thermal |
|---|---|
| Interface | GigE |
| Resolution | Up to 3 MP |
| Colour | Color |
| Lens mount | M34x0.75 |
| Sensor format | 1/2.5" and smaller |
Features
- High sensitivity, high resolution infrared detector for clear infrared images and temperature measurement accuracy
- RJ45 Gigabit Ethernet interface, 100 metres stable long-distance transmission
- Supports POE power supply, plug-and-play driver design
- 400X300 resolution, up to 50HZ frame rate
- Thermal sensitivity ≤ 55mK, thermal response time <15ms
- Multiple cameras can work at the same time in any network grouping, long-time operation without frame loss
- Hardware image processing acceleration reduces host CPU load
- GigE Vision 1.2 standard protocol; supports Halcon, VisionPro and other software
All 3 models in the Thermal imaging camera (LS-MV-GLF120 / LS-MV-GLF480)
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-MV-GLF120 | 0.1 MP, GigE, Thermal | 3 W | $3,999.00 quote | 4 in stock | View |
| LS-MV-GLF480 | 0.5 MP, GigE, Thermal | 3 W | $3,999.00 quote | 2 in stock | View |
| LS-MV-GF120 | 0.1 MP, GigE | 3 W | $3,999.00 quote | 3 in stock | View |
