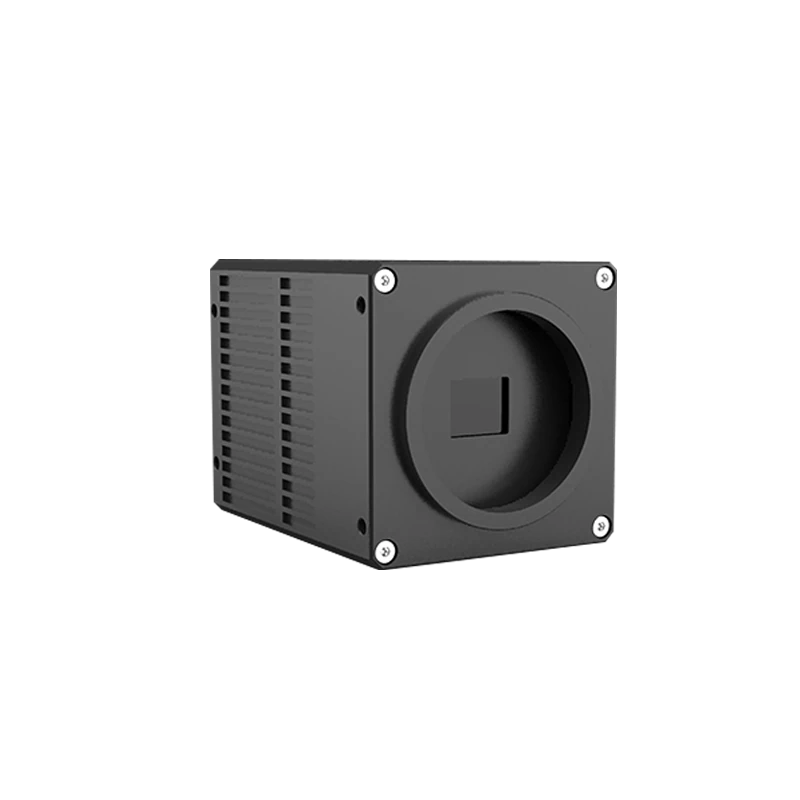

Thermal imaging camera (LS-MV-GLF120 / LS-MV-GLF480), 0.1 MP, GigE (LS-MV-GF120)

Name: Thermal imaging camera (LS-MV-GLF120 / LS-MV-GLF480), 0.1 MP, GigE (LS-MV-GF120)
Brand: LumaSpec Vision
SKU: LS-MV-GF120
Price: 3999.00 USD
Availability: InStock

Model LS-MV-GF120

LS-MV-GLF120/480 is an industrial far-infrared thermal imager that measures the surface temperature of objects and displays real-time thermal images, with several temperature measurement ranges, multiple colour modes, user-settable emissivity, frame-by-frame data capture, video recording and a complete secondary development SDK with demo routines (C/C++/VB/Delphi/Python and others). Data is available in 3 formats: temperature of each point, grey value of each point, pseudo-colour of each point.

Datasheet (PDF) - LS-MV-GF120

Features

High sensitivity, high resolution infrared detector for clear infrared images and temperature measurement accuracy
RJ45 Gigabit Ethernet interface, 100 metres stable long-distance transmission
Supports POE power supply, plug-and-play driver design
400X300 resolution, up to 50HZ frame rate
Thermal sensitivity ≤ 55mK, thermal response time <15ms
Multiple cameras can work at the same time in any network grouping, long-time operation without frame loss
Hardware image processing acceleration reduces host CPU load
GigE Vision 1.2 standard protocol; supports Halcon, VisionPro and other software
Functions: emissivity setting, centre temperature display, high/low temperature point display, region-of-interest temperature display, horizontal/vertical mirror, distance correction, temperature correction, user-defined temperature compensation, high/low temperature alarms, colour temperature comparison, image sharpening level, blackbody calibration
Uncooled vanadium oxide detector, 17 μm pixel
Spectral response 8 μm - 14 μm
Temperature measurement: Gear 1 -20℃~150℃ / Gear 2 50℃~400℃, accuracy ±1℃ or ±2%
Colour modes: rainbow (default), hot metal, white hot, black hot
RJ45 Gigabit Ethernet, GigE Vision V1.2 / GenICam
M34x0.75 lens interface (customizable), manual focusing
Infrared shutter (shown in drawing)
400X300 resolution with up to 50HZ frame rate.
The thermal sensitivity is less than 55mK and the thermal response time is less than 15ms.
Using RJ45 gigabit Ethernet interface, 100 meters long distance stable transmission.
Plug and play driver design, easy to use.
Support multi-camera work at the same time,the number is not limited.
High sensitivity and high resolution infrared detector is used.

Specifications

Model	LS-MV-GF120
Interface	RJ45 Gigabit Ethernet (GigE Vision 1.2), POE
Sensor type	Thermal imaging
Detector type	Uncooled vanadium oxide
Pixel size	17 μm
Width AD	14bit
Output pixel width	14bit
Video output format	RGB 24bit/Mono 16bit
Exposure time range (ms)	1~6
Exposure method	automatic
Maximum gain (magnification)	0~7
Frame buffer	128MB
Spectral response	8 μm - 14 μm
Focus mode	Manual focusing
Lens focal length	Optional
Power supply	12V (8PIN aviation connector)
Lens interface	M34x0.75 (customizable)
Image mirroring	Horizontal/Vertical
Spatial resolution	0.99mrad 0.67mrad
Response rate non-uniformity	≤5%
Power	3W
Dimensions	66mm x 50mm x 50mm (without lens)
Storage temperature and humidity	30℃~60℃, 20%~95% (no condensation)
Working temperature and humidity	0℃-50℃, 20%~80% (no condensation)
User-defined data area	2KB
Data interface	RJ45 Gigabit Ethernet interface, backward compatible with 100M network standard
Vision standard protocol	GigE Vision V1.2 GenICam
Temperature range	Gear 1: -20℃~150℃; Gear 2: 50℃~400℃; temperature measurement accuracy ±1℃ or ±2% (take the maximum value)
Temperature measurement mode	1. Ambient temperature and human body temperature measurement (20℃-50℃); 2. Medium temperature mode (-40℃-170℃); 3. High temperature mode (-40℃-800℃)
Color mode	Rainbow colour coding (default), hot metal, white hot, black hot
Operating system	WINXP, WIN7/8/10 32&64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system
Driver	Directshow component, Halcon special component, Labview special driver, OCX component, TWAIN component
Programming language pack	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
E ﬀ ective pixels	0.12MP
Sensor	6.8mmx5.1mm
Resolution	400x300
Exposure mode	Automatic
Sensitivity	NETD≤55mK
Exposure time	1~6ms
Sensor model	GST417M
Image display	Black hot/white hot/rainbow
Camera Type	LWIR Infrared Camera
Pixel	0.12MP
Resolution (product page)	400X300
Automatic	50Hz
Type	Thermal Imaging
SNR	175dBFS
DR	80dBc
AD width	14bit
Preset resolution and frame rate	400x300 50Hz
Exposure time range(ms)	1~6
Maximum gain(multiple)	0~7
Lens mount	M34x0.75(customizable)
Dimension	66mmx50mmx50mm(excluding lens)
Weight	<300g
Temperature	Operating:0~50° Storage:-30~60°
Humidity	Operating:20~80% (nocondensation) Storage:20~95%(nocondensation)
Spectral region	8μm-14μm
Measuring Range	Gear1: -20℃~150℃; Gear2:50℃~400℃,temperature measurement accuracy ±1℃or ±2% (maximum value)
Temperature measuring mode	1.Ambient temperature and human body temperature measurement(20℃-50℃) 2.Medium temperature mode(-40℃-170℃) 3.High temperature mode(-40℃-800℃)
Response rate nonuniformity	≤5%
Programming language packages	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Voltage	12V(8PIN aviation connector)

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Thermal imaging camera (LS-MV-GLF120 / LS-MV-GLF480) series

Model	Size	Power	Price	Availability
LS-MV-GLF120	0.1 MP, GigE, Thermal	3 W	$3,999.00	4 in stock	View
LS-MV-GLF480	0.5 MP, GigE, Thermal	3 W	$3,999.00	2 in stock	View
