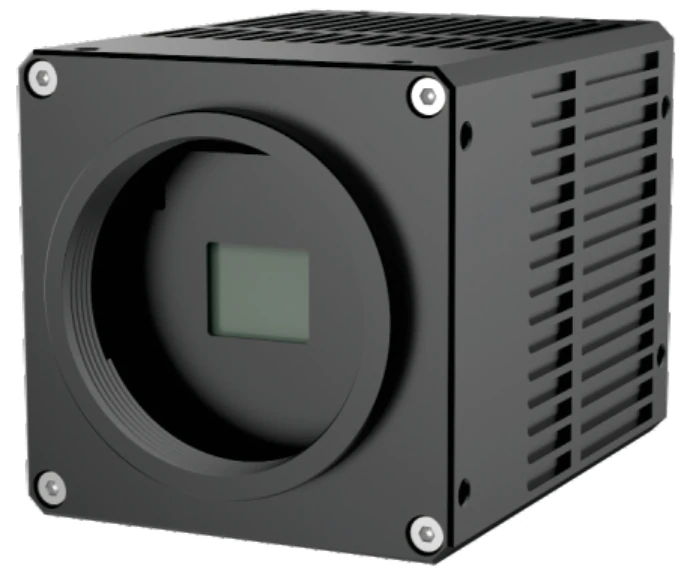

Thermal imaging camera (LS-MV-GLF120 / LS-MV-GLF480), 0.1 MP, GigE, Thermal (LS-MV-GLF120)
Model LS-MV-GLF120
LS-MV-GLF120/480 is an industrial far-infrared thermal imager that measures the surface temperature of objects and displays real-time thermal images, with several temperature measurement ranges, multiple colour modes, user-settable emissivity, frame-by-frame data capture, video recording and a complete secondary development SDK with demo routines (C/C++/VB/Delphi/Python and others). Data is available in 3 formats: temperature of each point, grey value of each point, pseudo-colour of each point.
Features
- High sensitivity, high resolution infrared detector for clear infrared images and temperature measurement accuracy
- RJ45 Gigabit Ethernet interface, 100 metres stable long-distance transmission
- Supports POE power supply, plug-and-play driver design
- 400X300 resolution, up to 50HZ frame rate
- Thermal sensitivity ≤ 55mK, thermal response time <15ms
- Multiple cameras can work at the same time in any network grouping, long-time operation without frame loss
- Hardware image processing acceleration reduces host CPU load
- GigE Vision 1.2 standard protocol; supports Halcon, VisionPro and other software
- Functions: emissivity setting, centre temperature display, high/low temperature point display, region-of-interest temperature display, horizontal/vertical mirror, distance correction, temperature correction, user-defined temperature compensation, high/low temperature alarms, colour temperature comparison, image sharpening level, blackbody calibration
- Uncooled vanadium oxide detector, 17 μm pixel
- Spectral response 8 μm - 14 μm
- Temperature measurement: Gear 1 -20℃~150℃ / Gear 2 50℃~400℃, accuracy ±1℃ or ±2%
- Colour modes: rainbow (default), hot metal, white hot, black hot
- RJ45 Gigabit Ethernet, GigE Vision V1.2 / GenICam
- M34x0.75 lens interface (customizable), manual focusing
- Infrared shutter (shown in drawing)
Specifications
| Model | LS-MV-GLF120 |
|---|---|
| Interface | RJ45 Gigabit Ethernet (GigE Vision 1.2), POE |
| Sensor type | Thermal imaging |
| Detector type | Uncooled vanadium oxide |
| Pixel size | 17 μm |
| Width AD | 14bit |
| Output pixel width | 14bit |
| Video output format | RGB 24bit/Mono 16bit |
| Exposure time range (ms) | 1~6 |
| Exposure method | automatic |
| Maximum gain (magnification) | 0~7 |
| Frame buffer | 128MB |
| Spectral response | 8 μm - 14 μm |
| Focus mode | Manual focusing |
| Lens focal length | Optional |
| Power supply | 12V (8PIN aviation connector) |
| Lens interface | M34x0.75 (customizable) |
| Image mirroring | Horizontal/Vertical |
| Spatial resolution | 0.99mrad 0.67mrad |
| Response rate non-uniformity | ≤5% |
| Power | 3W |
| Dimensions | 66mm x 50mm x 50mm (without lens) |
| Storage temperature and humidity | 30℃~60℃, 20%~95% (no condensation) |
| Working temperature and humidity | 0℃-50℃, 20%~80% (no condensation) |
| User-defined data area | 2KB |
| Data interface | RJ45 Gigabit Ethernet interface, backward compatible with 100M network standard |
| Vision standard protocol | GigE Vision V1.2 GenICam |
| Temperature range | Gear 1: -20℃~150℃; Gear 2: 50℃~400℃; temperature measurement accuracy ±1℃ or ±2% (take the maximum value) |
| Temperature measurement mode | 1. Ambient temperature and human body temperature measurement (20℃-50℃); 2. Medium temperature mode (-40℃-170℃); 3. High temperature mode (-40℃-800℃) |
| Color mode | Rainbow colour coding (default), hot metal, white hot, black hot |
| Operating system | WINXP, WIN7/8/10 32&64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system |
| Driver | Directshow component, Halcon special component, Labview special driver, OCX component, TWAIN component |
| Programming language pack | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions | Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
| Optical size | 6.8mm x 5.1mm |
| Sensor model | GST417M |
| Signal to noise ratio | 75dBFS |
| Dynamic range | 80dBc |
| Effective pixels | 12W (120,000) |
| Thermal sensitivity | NETD≤55mK @f/1, 300K |
| Default resolution and frame rate | 400x300 50Hz |
| Field of view | 21.7° x 16.4° |
| Minimum imaging distance | 0.5m |
| Typical power consumption | ≤250mW (excluding TEC) |
| Weight | <300g |
| Mono / colour | Thermal |
| Voltage | 12 V DC |
