Fixed code readers

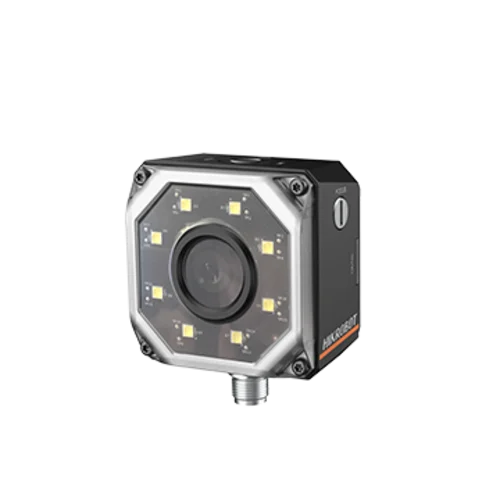

Hikrobot QH-IDX3000-PCB 1.65 MP smart code reader

Model QH-IDX3000-PCBHikrobot

Resolution1448×1048
SensorCMOS, global shutter
Speed60 fps
Lens mountM12
Mono / colourMono
Pixel size3.45 µm×3.45 µm

$839.00

Ships in 2-3 weeks

0.45 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot QH-IDX3000-PCB 1.65 MP smart code reader. Carefully selected sensor for high-speed capture of high-quality images Single cable provides a rich I/O interface for multiple input and output signals

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	QH-IDX3000-PCB
Brand	Hikrobot
Ethernet	Fast Ethernet (100 Mbit/s)
Lens cap	Clear lens cover, Full-polarizing optional, Semi-polarizing lens cover
Indicator	Power indicator PWR, Network indicator LNK, Status indicator STS, Result indicator OK/NG

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN, ITF25, MATRIX25, MSI, CODE11, INDUSTRIAL25, CHINAPOST, etc.; 2D code: QR, DM, etc.; Stacked code: PDF417
Max. frame rate	60 fps
Max. reading speed	84 codes/sec
Sensor type	CMOS, global shutter
Pixel size	3.45 µm×3.45 µm
Sensor size	1/2.9”
Resolution	1448×1048
Exposure time	16 μs ~ 1 sec
Gain	0 ~ 40 dB
Mono/color	Mono

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, SLMP
Data interface	17-pin M12 connector for power and I/O: 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 3/4/5), 1 RS232 input, 1 RS232 output; Triggering via top button supported
Digital I/O	3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 0/1/2), 1 RS232 input, 1 RS232 output; Triggering via top button supported
Client software	IDMVS

Light

Light source	Focused white light, Focused red/blue/IR light optional, Wide-angle white/blue/red light

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Operating temperature: 0 to 50 ℃, Storage temp.: -30 to 70 °C
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Electrical

Power supply	24 VDC
Max. power consumption	20 W @ 24 VDC (built-in light on)

Mechanical

Lens mount	M12-Mount, Mechanical focus

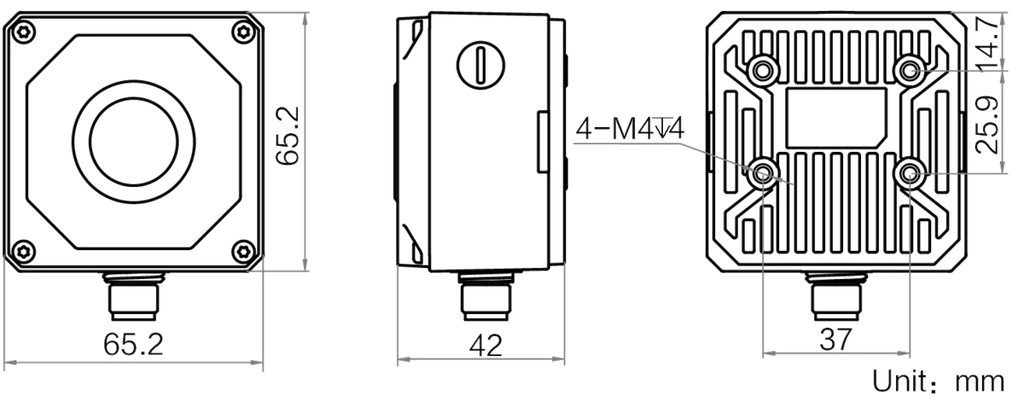

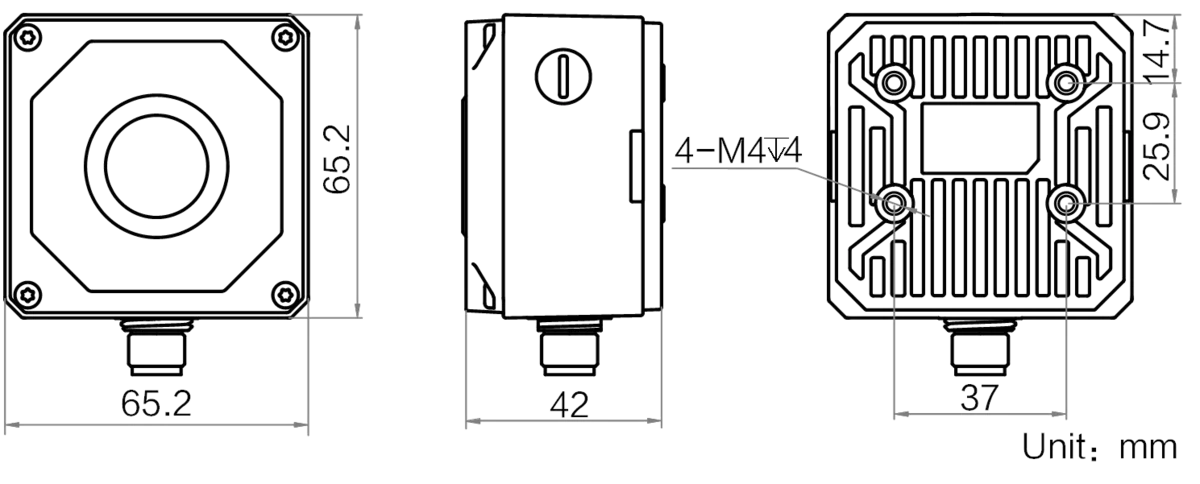

Dimension	65.2 mm×65.2 mm×42 mm
Weight	Approx. 250 g
Shipping weight (estimated)	0.45 kg

Downloads

Datasheet (PDF, Chinese)QH-IDX3000-PCB · 1.1 MB

Features

Carefully selected sensor for high-speed capture of high-quality images
Single cable provides a rich I/O interface for multiple input and output signals
External waterproof setup button supports manual external triggering
Top ring indicator shows working status at a glance
Dual side-strip result indicators: OK/NG read status visible from multiple angles
Modular light design with independently controllable zones for easy replacement
