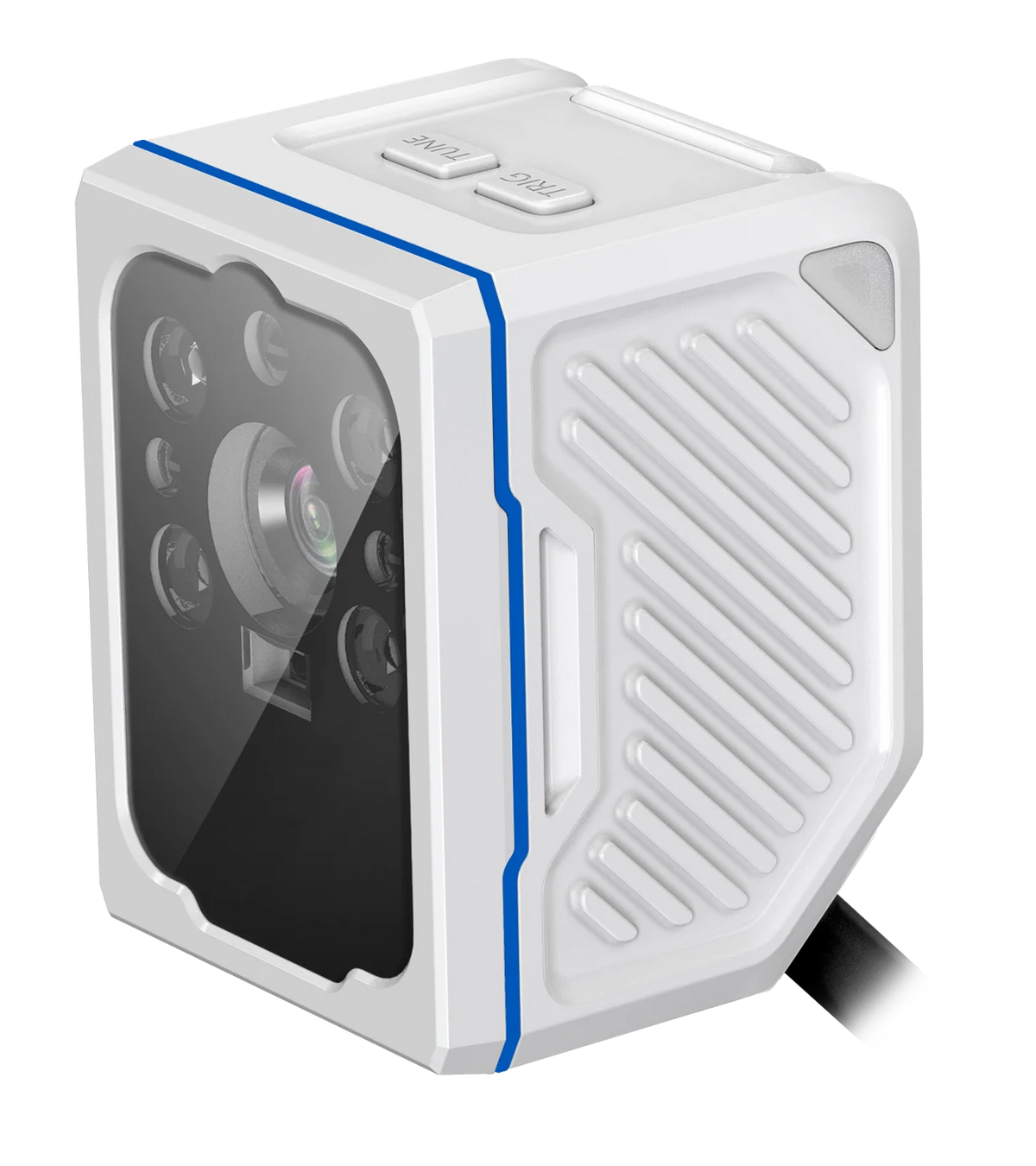

Hikrobot MV-HY-MED-C08 200W pharma code reader (standalone unit)

Fixed code readers

Hikrobot MV-HY-MED-C09-PD 400W pharma code reading kit

Model MV-HY-MED-C09-PDHikrobot

Resolution2432 × 1408
InterfaceFast Ethernet(100 Mbit/s)
Speed60 fps
Lens mountM12
Mono / colourMono
Focal lengthStandard 8 mm, Optional 6/8/12/25 mm

$1,709.00

Ships in 2-3 weeks

0.38 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-HY-MED-C09-PD 400W pharma code reading kit. Extra-large depth of field, built-in deep-learning decoding algorithm, premium sensor, high-performance lens and more Highly integrated with multiple status and interaction prompts for a friendlier solution

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-HY-MED-C09-PD
Brand	Hikrobot
Lens cap	Polarizing lens cover
Status indicator	Voice announcements, OK/NG status indicator, Power switch indication
Voice prompts	Volume adjustment supported
Top buttons	Not yet available, Customization supported

Optics

Focal length	Standard 8 mm, Optional 6/8/12/25 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, ITF25, ITF14, Matrix25, UPCA, UPCE, MSI, Code11, Industrial 2of5, China Post, Pharmacode; 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), Micro QR, AZTEC, Hanxin; Stacked code: PDF417
Max. frame rate	60 fps
Resolution	2432 × 1408
Mono/color	Mono
Aiming system	Orange LED

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, UDP, etc.
Data interface	Fast Ethernet(100 Mbit/s)
Digital I/O	17-pin M12 connector for power and I/O: 3 opto-isolated inputs (LINE0/1/2), 3 opto-isolated outputs (LINE3/4/5)
Client software	IDMVS

Light

Light source	White spot light

Environment and compliance

Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)

Electrical

Power supply	24 VDC
Max. power consumption	6.2 W@24 VDC

Mechanical

Lens mount	M12-Mount, Autofocus

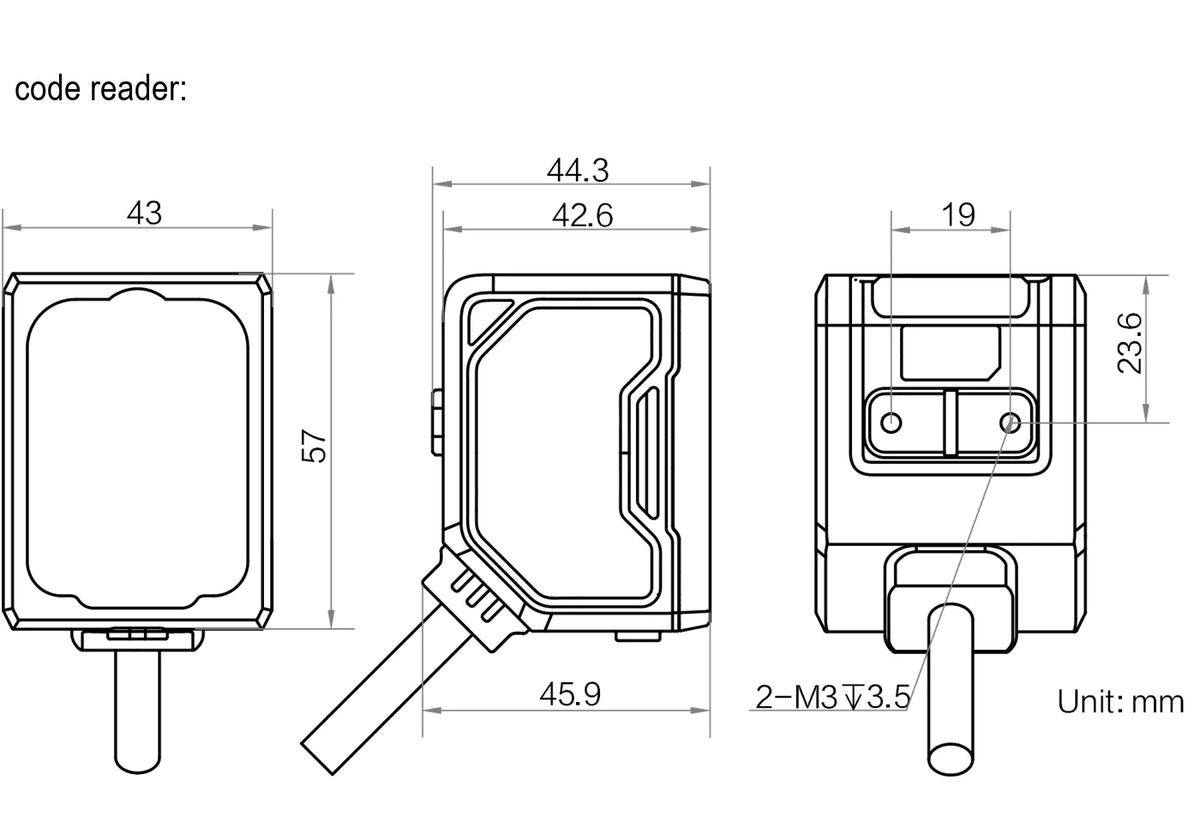

Dimension	Code reader: 43 mm × 57 mm × 45.9 mm; Interface board: 100 mm × 45 mm × 17.3 mm
Weight	Code reader: approx. 200 g; Interface board: approx. 30 g
Shipping weight (estimated)	0.38 kg

Downloads

Features

Extra-large depth of field, built-in deep-learning decoding algorithm, premium sensor, high-performance lens and more
Highly integrated with multiple status and interaction prompts for a friendlier solution
Easy to use: autofocus, adaptive tuning, automatic calibration and more
Clear interactive feedback: top and side status indicators plus projected light make status visible from every side
Broad symbology support: reads over 20 symbologies, including UDI codes
Rich I/O interface, powerful filtering rules and secondary development capability

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
