Fixed code readers
Hikrobot MV-HY-MED-C09 400W pharma code reader (standalone unit)
Model MV-HY-MED-C09Hikrobot
- Resolution2432 × 1408
- InterfaceFast Ethernet(100 Mbit/s)
- Speed60 fps
- Lens mountM12
- Mono / colourMono
- Focal lengthStandard 8 mm, Optional 6/12/16/25 mm
$1,709.00
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-HY-MED-C09 400W pharma code reader. Extra-large depth of field, built-in deep-learning decoding algorithm, premium sensor, high-performance lens and more Easy to use: autofocus, adaptive tuning, automatic calibration and more
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-HY-MED-C09 |
|---|---|
| Brand | Hikrobot |
| Lens cap | Polarizing lens cover |
| Indicator | Body indicators |
| Top buttons | No actual function; adjustment not supported |
Optics
| Focal length | Standard 8 mm, Optional 6/12/16/25 mm |
|---|
Sensor and imaging
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, ITF25, ITF14, Matrix25, UPCA, UPCE, MSI, Code11, Industrial 2of5, China Post, Pharmacode; 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), Micro QR, AZTEC, Hanxin; Stacked code: PDF417 |
|---|---|
| Max. frame rate | 60 fps |
| Resolution | 2432 × 1408 |
| Mono/color | Mono |
| Aiming system | Orange LED |
Interfaces and I/O
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, etc. |
|---|---|
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 17-pin M12 connector for power and I/O: 3 opto-isolated inputs (LINE0/1/2), 3 opto-isolated outputs (LINE3/4/5), 1 RS-232 interface |
| Client software | IDMVS |
Light
| Light source | White spot light |
|---|
Environment and compliance
| Ingress protection | IP65 (with proper installation of waterproof lens cap) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
Electrical
| Power supply | 24 VDC |
|---|---|
| Max. power consumption | 6.2 W@24 VDC |

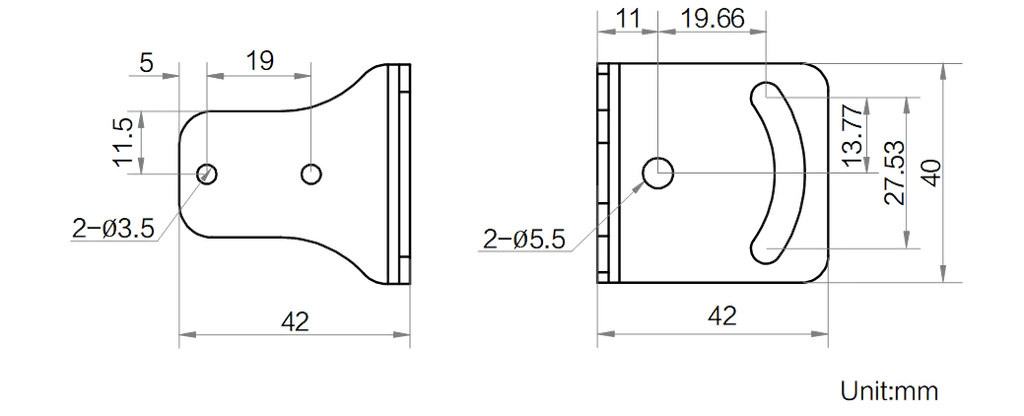

Mechanical
| Lens mount | M12-Mount, Autofocus |
|---|---|
| Dimension | 43 mm × 57 mm × 45.9 mm |
| Weight | Approx. 200 g (0.4 lb.) |
| Shipping weight (estimated) | 0.38 kg |
