Hikrobot ICRS030-90M 3.1 MP industrial code reader

Model ICRS030-90MHikrobot

Resolution2048×1536
SensorCMOS, global shutter
InterfaceFast Ethernet(100 Mbit/s)
Speed60 fps
Lens mountM12
Mono / colourMono

$1,709.00

Ships in 2-3 weeks

0.37 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

2048 x 1536 fixed code reader, 60 fps, 90 yards/s, autofocus, 25 mm lens (LS-CRD-0026)$1,150.00
2048 x 1536 fixed code reader, 60 fps, 90 yards/s, 25 mm lens (LS-CRD-0027)$920.00
2048 x 1536 fixed code reader, 60 fps, 90 yards/s, autofocus, 16 mm lens (LS-CRD-0023)$1,150.00

Hikrobot ICRS030-90M 3.1 MP industrial code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Carefully selected sensor for high-speed capture of high-quality images

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	ICRS030-90M
Brand	Hikrobot
Lens cap	Polarized + diffuser + full-transparent lens cap
Indicator	Device body indicator, reading result indicator

Optics

Focal length	25 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, MATRIX25, UPCA, UPCE, MSI, CODE11, INDUSTRIAL25, CHINAPOST, PHARMACODE; 2D code: QR Code, Data Matrix, Micro QR; Stacked code: PDF417
Max. frame rate	60 fps
Max. reading speed	90 codes/s
Sensor type	CMOS, global shutter
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/1.8”
Resolution	2048×1536
Exposure time	6 μs ~ 30000 μs
Gain	0 ~ 24 dB
Mono/color	Mono
Aiming system	Orange LED

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, EthernetIp, Modbus, FINS, UDP
Data interface	Fast Ethernet(100 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.; Triggering the device is supported via pressing the top button.
Client software	IDMVS

Light

Light source	Red spot light and white diffuse light, Spot light: white/blue/IR optional

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Electrical

Power supply	24 VDC
Max. power consumption	6.2 W @ 24 VDC (built-in light on)

Mechanical

Lens mount	M12-mount, mechanical focus

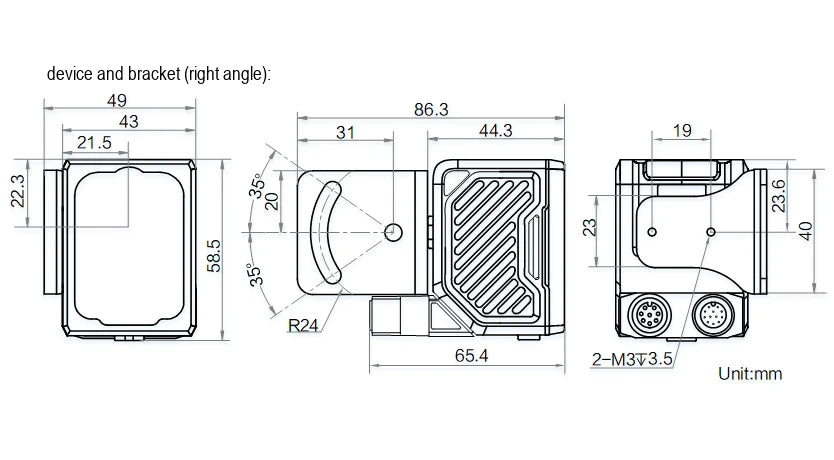

Dimension	Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7"); Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
Weight	Approx. 195 g (0.4 lb.)
Shipping weight (estimated)	0.37 kg

Downloads

Datasheet (PDF, Chinese)ICRS030-90M · 941 KB

Features

Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Carefully selected sensor for high-speed capture of high-quality images
Liquid-lens models combine with ToF for fast image setup and real-time focusing
Extremely easy to use: one-click auto-tuning
Top and side status indicators plus projected light: code-reading status visible from every side
Rotatable tail cable design adapts flexibly to tight spaces
Three-way polarized, diffuse and clear illumination for outstanding environmental adaptability
Rich I/O interface for multiple input and output signals
IP67 protection for harsh industrial environments
