Fixed code readers

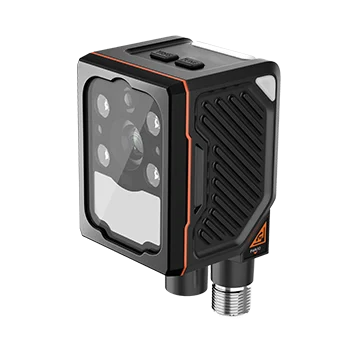

Hikrobot HIK-D3000-BN 1.6 MP industrial code reader
Model HIK-D3000-BNHikrobot
- Resolution1408 × 1024
- SensorCMOS, global shutter
- InterfaceFast Ethernet(100 Mbit/s)
- Speed60 fps
- Lens mountM12
- Mono / colourMono
$819.00
Ships in 2-3 weeks
0.37 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot HIK-D3000-BN 1.6 MP industrial code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Carefully selected sensor for high-speed capture of high-quality images
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | HIK-D3000-BN |
|---|---|
| Brand | Hikrobot |
| Lens cap | Polarized + diffuser + full-transparent lens cap |
| Indicator | Body indicators, Light-board read result indicator |
Optics
| Focal length | 8 mm |
|---|
Sensor and imaging
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, MATRIX25, UPCA, UPCE, MSI, CODE11, INDUSTRIAL25, CHINAPOST, PHARMACODE; 2D code: QR Code, Data Matrix, Micro QR; Stacked code: PDF417 |
|---|---|
| Max. frame rate | 60 fps |
| Max. reading speed | 110 codes/s |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9” |
| Resolution | 1408 × 1024 |
| Exposure time | 25 μs ~ 30000 μs |
| Gain | 0 ~ 24 dB |
| Mono/color | Mono |
| Aiming system | Orange LED |
Interfaces and I/O
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, EthernetIp, Modbus, FINS, UDP |
|---|---|
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 12-pin M12 connector for power and I/O: 3 opto-isolated inputs (pins 0/1/2), 3 opto-isolated outputs (pins 3/4/5), 1× RS-232 interface; Device trigger via top button supported |
| Client software | IDMVS |
Light
| Light source | Red spot light and white diffuse light, Spot light: white/blue/IR optional |
|---|
Environment and compliance
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Electrical
| Power supply | 24 VDC |
|---|---|
| Max. power consumption | 6.2 W @ 24 VDC (built-in light on) |
Mechanical
| Lens mount | M12-Mount, Mechanical focus |
|---|---|

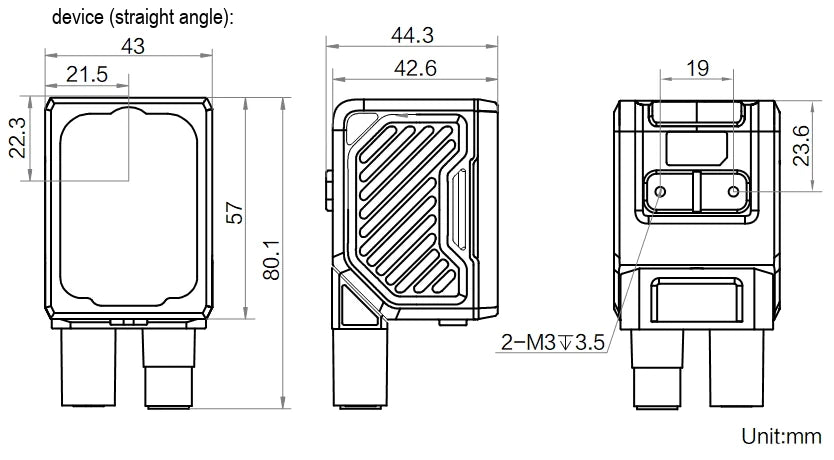

| Dimension | Straight: 80.1 mm × 43 mm × 44.3 mm; Right-angle: 58.5 mm × 43 mm × 65.4 mm |
| Weight | Approx. 195 g (0.4 lb.) |
| Shipping weight (estimated) | 0.37 kg |
